2.4GHz 50km UAV/FPV/Fixed Wing Drone Wireless HDMI COFDM Transmitter Receiver

2.4GHz 50km UAV/FPV/Fixed Wing Drone Wireless HDMI COFDM Transmitter Receiver

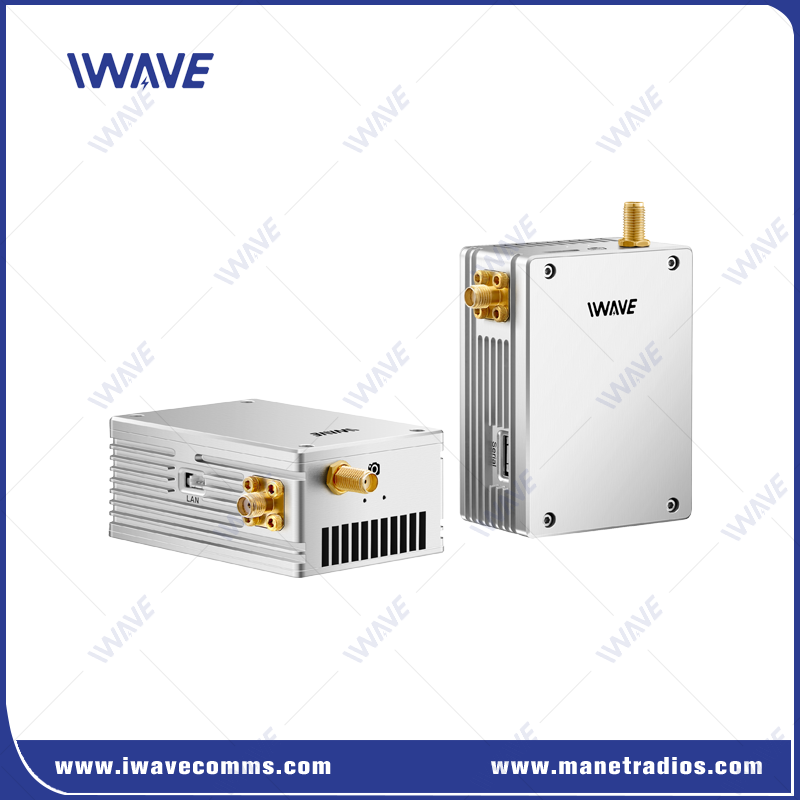

The Advanced Mini Link System (FIM-2450) is an advanced digital data and Video link system designed for mini UAVs and smaller sized tactical UAS as well as UGVs. With a weight of just 160 grams, it is ideal for such platforms with more stringent SWaP requirements.

The open architecture system enables full duplex wideband, error correction techniques and high-rate communication, with the ability to downlink real-time video images, LAN and serial data, and information from a wide range of sensors. With high spectral efficiency and data rate selectivity, the system allows for multiple unmanned aircraft operating in the same airspace vicinity.

With a range of up to 50km, the FIM-2450 is ideal for extended UAV and UGV missions including battlefield reconnaissance and IED detection.

Frequency Option

Features

Video Input Interface: HDMI,Direct HD video input/output (e.g., 1080p/4K cameras). Ethernet: Support TCP/IP/UDP,IP data transmission (e.g., telemetry, sensor data). 2* Serial Ports: Bi-directional Data Transmission 2* Antennas: Dual Tx antenna and Dual Rx antenna 1*100Mbps Ethernet port Output Video to PC and Monitor Simultaneously

Application:

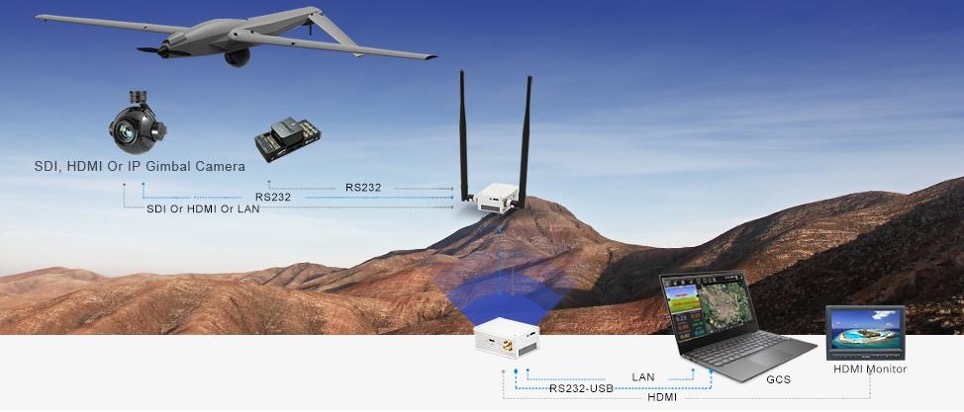

Components: Integrated airborne transmitters, ground receivers, and directional antennas (e.g., high-gain parabolic for long range).

Applications:

Law Enforcement: Surveillance during operations (e.g., crowd monitoring, suspect tracking).

Emergency Response: Live aerial footage for firefighting, search and rescue.

Infrastructure Monitoring: Inspecting pipelines, power lines, or disaster zones.

Specification
