| Categories | Online Water Quality Analyzer |
|---|---|
| Brand Name: | JUGE |
| Model Number: | AG9007 |
| Certification: | IOS9001, CE |
| Place of Origin: | Nanjing, China |
| MOQ: | 1 Unit |
| Price: | USD2000-7000 |
| Packaging Details: | Neutral carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | Online order, T/T |
| Supply Ability: | 100 Unit/Week |
| Test Method: | Isonicotinic acid-barbituric acid spectrophotometric method |
| Measuring Range: | 0~1mg/L (segmented measurement, expandable) |
| Detection Limit: | ≤0.02mg/L |
| Resolution: | 0.001mg/L |
| Accuracy: | ±5% |
| Power Supply: | AC 220±10% V |
| Dimensions: | 520H × 370W × 265D (mm) |
| Weight: | 40kg |
| Company Info. |
| Nanjing Juge Environmental Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

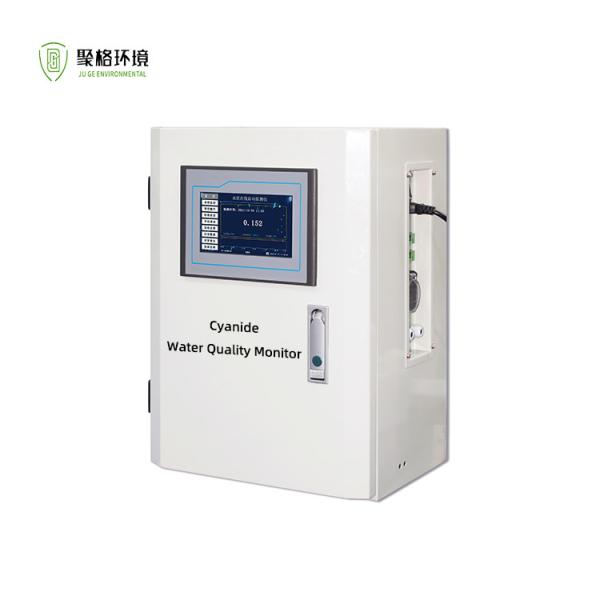

Cyanide Online Water Quality Analyzer
>>Overview
>>Principle
The cyanide online analyzer employs a process where tartaric acid and zinc nitrate are added to the water sample, followed by heated distillation. Simple and some complex cyanides are volatilized as hydrogen cyanide (HCN), absorbed by sodium hydroxide, and reacted with chloramine-T to form cyanogen chloride. This intermediate reacts with the chromogenic agents isonicotinic acid and pyrazolone, rapidly generating a red-colored compound. The compound exhibits maximum absorbance at 546nm and remains stable within a defined timeframe.
>>Technical Parameter
| Test Method | Isonicotinic acid-barbituric acid spectrophotometric method |
| Measuring Range | 0~1mg/L (segmented measurement, expandable) |
| Detection Limit | ≤0.02mg/L |
| Resolution | 0.001mg/L |
| Accuracy | ±5% |
| Repeatability | ≤±5% |
Drift (24h) | Zero drift: ±5% Span drift: ±10% |
| Measurement Time | <25min (digestion time adjustable) |
| Measurement Modes | Adjustable time interval, fixed time point, or triggered measurement |
Calibration Modes | Automatic calibration (1~99 days adjustable) Manual calibration based on actual water samples |
Maintenance Cycle |
|
| Human-Machine Interface | Touchscreen display and command input |
Self-Diagnosis & Protection | Self-diagnoses operational status; retains data during anomalies/power outages Automatically clears residual reactants and resumes operation after reset/power recovery |
| Data Storage | 5-year data capacity |
| Input Interface | Digital input |
Output Interfaces | 1× RS232, 1× RS485 2× 4~20mA analog outputs |
Operating Environment | Indoor use; recommended temperature: 5~28℃, humidity ≤90% (non-condensing) |
Power Supply | Voltage: AC 220±10% V Frequency: 50±0.5 Hz Power: ≤150W (excluding sampling pump) |
Dimensions | 520H × 370W × 265D (mm) |
|
