| Categories | Bar Type TFT LCD |
|---|---|
| Brand Name: | ESEN |
| Model Number: | TX070-30RB-A1 |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen China |
| MOQ: | No MOQ |
| Price: | can be negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 300K/mth |
| Delivery Time: | 7~14 working days |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Size: | 7.0 inch |
| Resolution: | 280(horizontal)*1424(Vertical) |
| Interface: | MIPI |
| Connect type: | Connector |
| Color Depth: | 16.7M |
| Technology type: | a-Si |
| Pixel pitch (mm): | 0.12x0.12 0.12x0.12 |
| Pixel Configuration: | R.G.B. Vertical Stripe |
| Display Mode: | Normally Black |
| Viewing Direction: | ALL |
| Gray Scale Inversion Direction: | ALL |
| LCM (W x H x D) (mm): | 38.20*181.47*3.5 |
| Active Area(mm): | 33.6 x 170.88 |
| With /Without TSP: | Without TSP |
| Weight (g): | TBD |
| LED Numbers: | 8 LED |
| Customization: | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |
| Company Info. |
| ESEN HK LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Type: TFT
Supplier Type: Manufacture
Place of Origin: GUA
Brand Name: LCD MALL
Resolution: 280x1424
LCD TYPE: WXGA
Driver IC: T-CON
Interface: MIPI(LCM)+IIC(CTP)
Backlight LEDs: 8 chip white LED
Luminance: 400nits
Viewing Angle: ALL/IPS
OD Size (mm): 46.2* 199 * 4.8
AA Size (mm): 33.6 * 170.88
PIN number: 40PIN

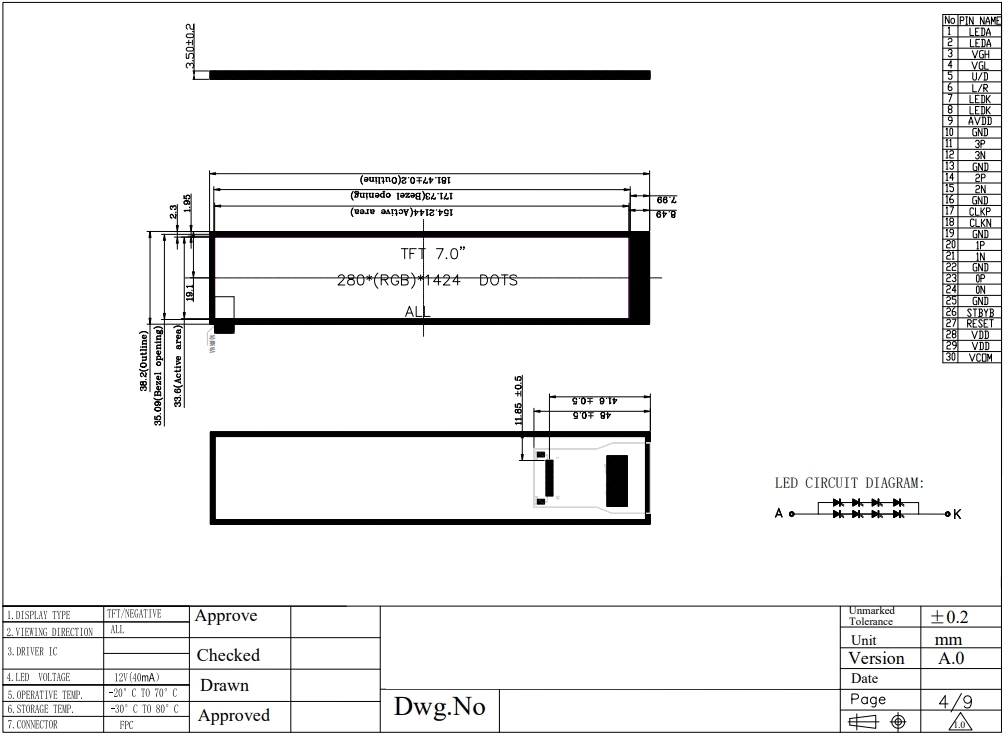

Mechanical Drawing

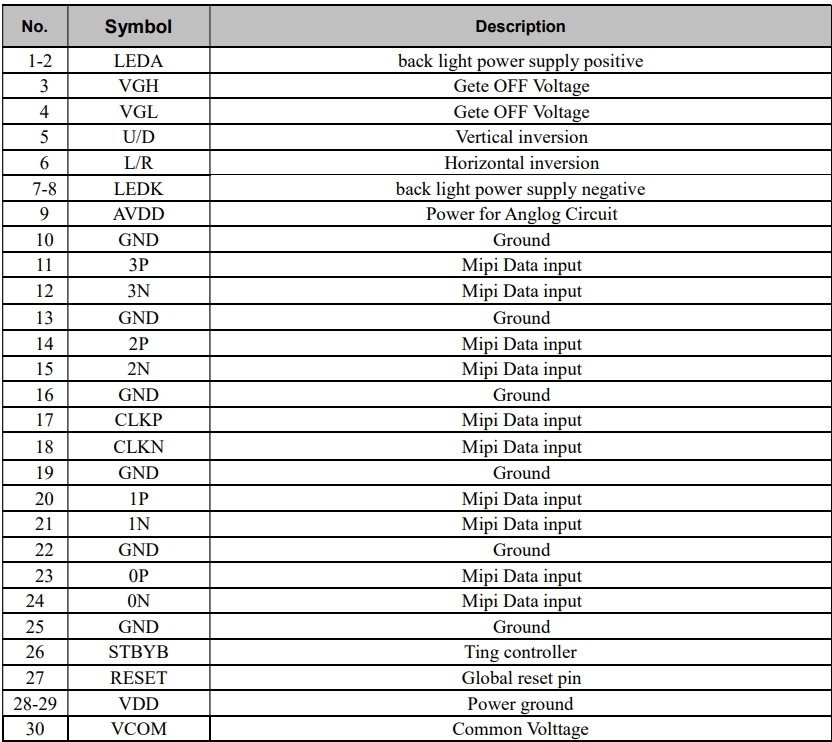

Input/Output Terminals
1. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 15 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
2. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, ISO9001 Certificate; RoHS Environmental Certification;
|
