| Categories | PWM Solar Charge Controller |
|---|---|
| Brand Name: | Sunchonglic |
| Model Number: | FT-D1210 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | US $3.98-27.89 |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/mon |
| Delivery Time: | 20-60 work days |
| Packaging Details: | Paper Box |
| Product name: | LCD Display PWM Controller 12V 24V 10A 10amp Manual Pwm Solar Charge Controller |
| Battery type: | Lead Acid/AGM/GEL/Lithium Ion/Lithium Iron Phosphate Battery |
| Working temperatue : | -35℃~+60℃ |
| Solar PV input maximum voltage: | 12V system<25V; 24V system<50V |
| Low power recovery voltage: | Default*12.6V(B1) adjustable range 11.5-12.6V |
| USB Output: | 5V/2A |
| Company Info. |
| Foshan Suntway Technology Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

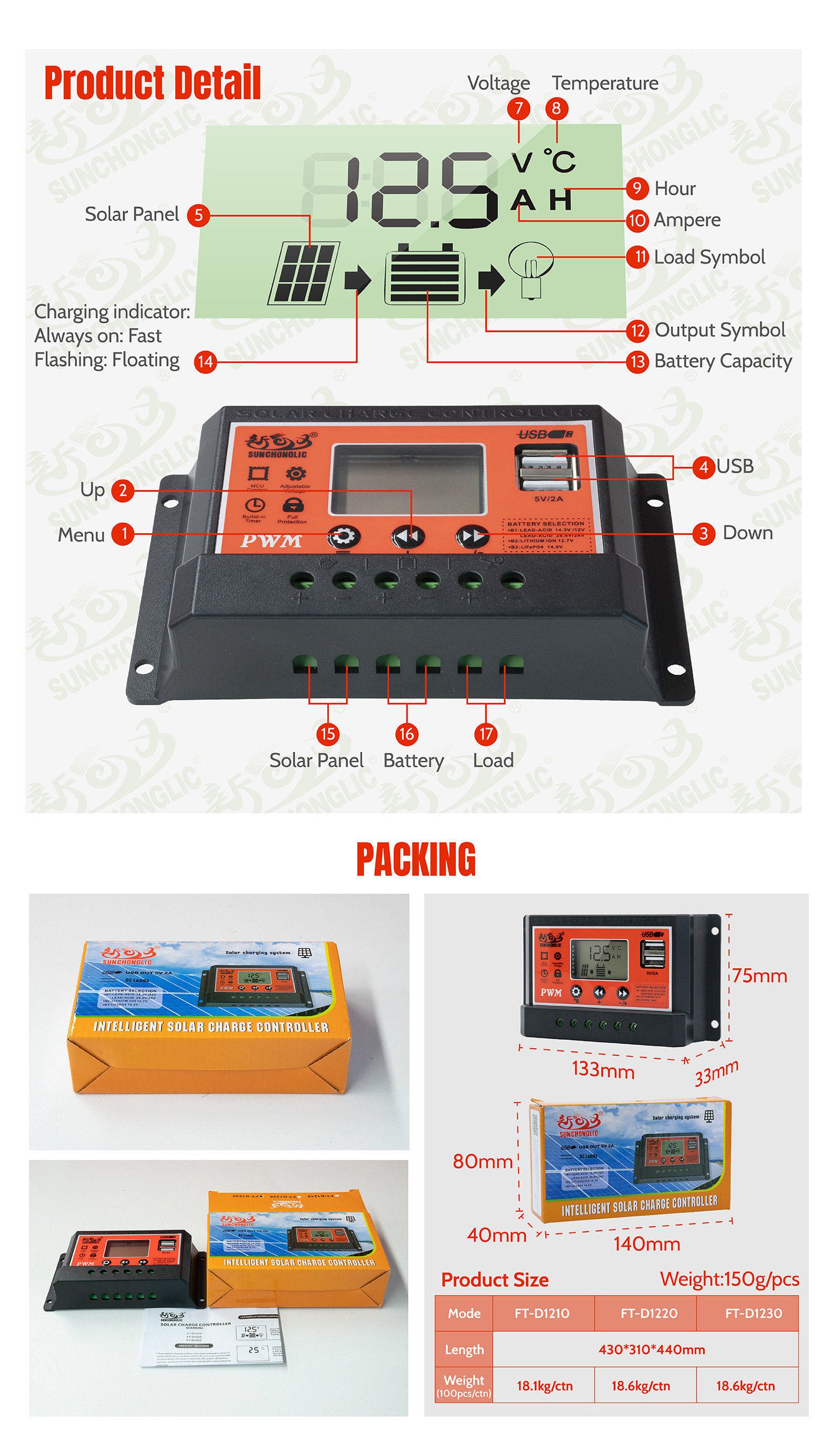

What is feature of LCD display PWM controller 12V 24V 10A 10amp
manual pwm solar charge controller?
1.5V 2A USB charing interface
2.Applicable for 3 types of batteries:B01 Lead acid batttery,B02 Lithium ion battery,B03 Lithium iron phosphate battery
3.Large-screen LCD display
4.Adopt complete three phase PWM charge management (Constant current mode,Constant voltage mode,Floating charge mode)
5.Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection
6.Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings

>>>Product Specifications
| Model | FT-D1210 |
| Rated current | 10A |
| System Voltage | 12V/24V system is only designed for lead-acid batteries with auto sense function |
| Solar PV input maximum voltage | 12V system<25V; 24V system<50V |
| Battery Type | B01=Lead Acid Battery 12V/24V auto sense |
| B02=Lithium-ion battery 3 series 3.7V=11.1V | |
| B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V | |
| Charging voltage | Default*14.3V(B1) adjustable range 13.7-14.6V |
| Low-voltage cut off voltage | Default*10.7V(B1) adjustable range 8-11.5V |
| Low power recovery voltage | Default*12.6V(B1) adjustable range 11.5-12.6V |
| External 12V battery recommended solar panel specifications | 100-150W/18V |
| External 24V battery recommended solar panel specifications | 150-200W/36V |
| Battery capacity recommended | 12V/24-80Ah |
| 24V/24-80Ah | |
| Rated current of DC load output | 12A |
| USB Output | 5V/2A |
| Standby current | <10mA |
| Working temperatue | -35℃~+60℃ |
| Size / Weight | 133x75x33mm/152g |
| Mark:* tagged voltage only corresponds to 12V solar system,if user use 24V system,please multiply by 2 | |
We are a manufacturer of Solar Energy Photovoltaic Products with
many years history.
Our Factory produce Solar Power Inverter,AGM/GEL Lead Acid Battery
Charger and Solar Charge Controller,etc.
Choosing Sunchonglic brand products are good choices.
More products information,please don't hesitate to contact us!

Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20
years.
We are the original manufacturer and developer of advanced Solar
Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery
chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to
Southeast Asia, Africa and
Mid East etc.
Our products are widely recognized and trusted by our clients and
can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the
world to visit and
contact us for future business relationships and mutual success!
|   |
