Brand Name: | SKYLINE |
Model Number: | SL-T23 |
Certification: | CE |
Place of Origin: | China |
MOQ: | 1 |
Price: | negoitable |
Payment Terms: | T/T |
Supply Ability: | 1 unit/Month |
Delivery Time: | 25 working days |
Packaging Details: | Plywood case |
Horizontal pull force: | 20N |
Engine power: | About 20W |
Instrument dimensions: | 1350mmx1000mmx1850mm (L * W * H) |
Main test items: | Office chair forward and backward stability test |
Loading Weight: | Rear stability weight:130kg |
Company Info. |
SKYLINE INSTRUMENTS CO.,LTD |
Verified Supplier |
View Contact Details |
Product List |
Product Information

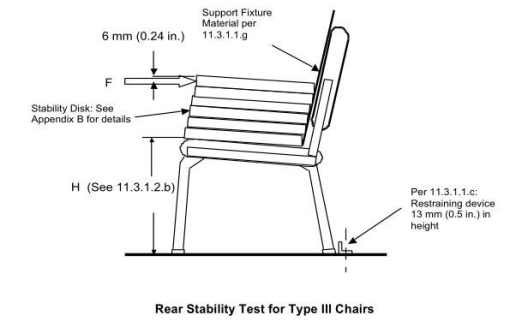

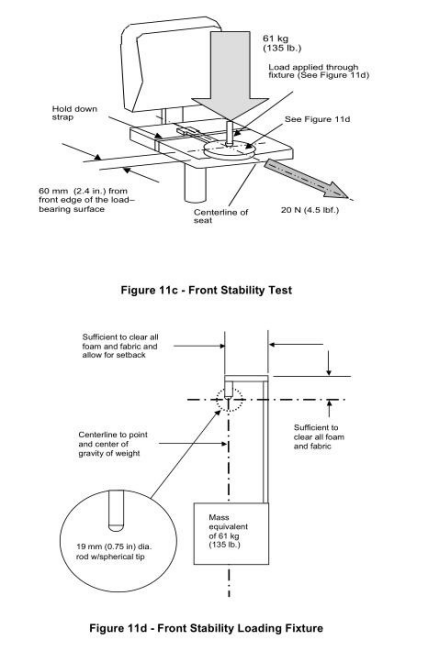

The purpose of these tester is to evaluate the front and rear stability of chairs.
Testing Standards
ANSI/BIFMA X5.1-2017 11;12
Specification
Cylinder Stock | 250mm |
Horizontal Force | 20N |
The engine power | About 20W |
Loading Position | 60mm away from the front of center of the seat surface |
Seat Compression plate | Diameter 200mm,arc surface300mm |
Machine Dimension | 1350 mmx1000mmx1850mm (L * W * H) |
Test Area | 780mm*740mm(L*W) |
Main test items | Office chair forward and backward stability test |
Loading Weight | Forward stability: European standard 60kg, American standard 61kg; |
Rear stability weight:130kg |
![]() |
