| Categories | TFT Resistive Touch Screen |
|---|---|
| Brand Name: | AISON |
| Model Number: | Z050WV05-T |
| Certification: | ISO9001 / ISO14000/ROHS |
| Place of Origin: | Guangdong,China |
| MOQ: | 1 |
| Price: | 10~30 usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 200k/month |
| Delivery Time: | 7 working days |
| Packaging Details: | Blister Package/Carton |
| Name: | 5 inch TFT Display with RTP |
| Resolution: | 800x480 |
| Outline dimension: | 120.7*75.9*4.4mm |
| Active area: | 108 x 64.80 mm |
| Interface: | RGB 40pin |
| Brightness: | 300 cd/m2 |
| Display mode: | TFT,Normally White |
| View Direction: | ALL/IPS |
| Operating temperatures: | -20 to 70 degree |
| Storage temperatures: | -30 to 80 degree |
| Company Info. |
| Aison Technology (HK) Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

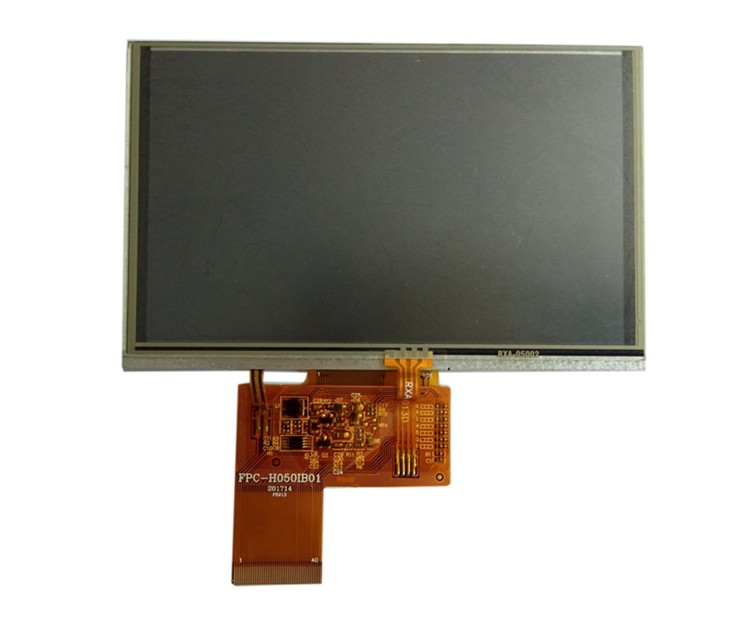

5 inch TFT LCD Display with Resistive Touch Panel 800x480 RGB 40 Pin Interface
Introducing the Z050WV05-T, a cutting-edge 5.0-inch TFT LCD module designed to enhance your display experience. This module features a 5-inch TFT-LCD screen with a 16:9 aspect ratio and a crisp resolution of 800x480 pixels, delivering vibrant and clear visuals.
The Z050WV05-T is equipped with a resistive touch panel (RTP), making it an intuitive and responsive 5-inch touchscreen TFT LCD display. Its compact design boasts outline dimensions of 120.7 x 75.9 mm and an active area (AA size) of 108.0 x 64.80 mm, ensuring seamless integration into various electronic devices.
This module is powered by the advanced ILI5960+ILI6122 driver ICs and supports a 24-bit RGB interface, ensuring high-quality image rendering. With a brightness of 300 nits (typical) and a contrast ratio of 600:1, the Z050WV05-T excels in diverse lighting conditions, offering minimal glare and reduced eye fatigue.
The Z050WV05-T features an anti-glare surface, enhancing visibility in bright environments. Its wide viewing angles (left: 50°, right: 70°, up: 70°, down: 70°) ensure optimal visibility from multiple perspectives.
Designed for durability, this module operates within a temperature range of -20°C to +70°C and can be stored at temperatures from -30°C to +80°C. The supply voltage ranges from 3.1V to 3.6V, with a typical value of 3.3V, making it adaptable to various electronic systems.
The Z050WV05-T is a versatile solution for a wide range of applications, including embedded systems, medical instruments, GPS navigation, surveillance systems, and industrial control products. Its combination of advanced features and robust performance makes it an ideal choice for developers and manufacturers seeking a reliable display solution.
General Data
| Product Name | 5.0 inchTFT Display with Resistive Touch |
| Number of Pixel | 800x480 |
| Interface | RGB 24bit |
| Luminance(cd/m2) | 300cd/m2 |
| Active area | 120.7*75.9*4.4mm |
| LCM (W x H x D) | 108x64.8 mm |
| Viewing Direction(eye) | 12 o'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |

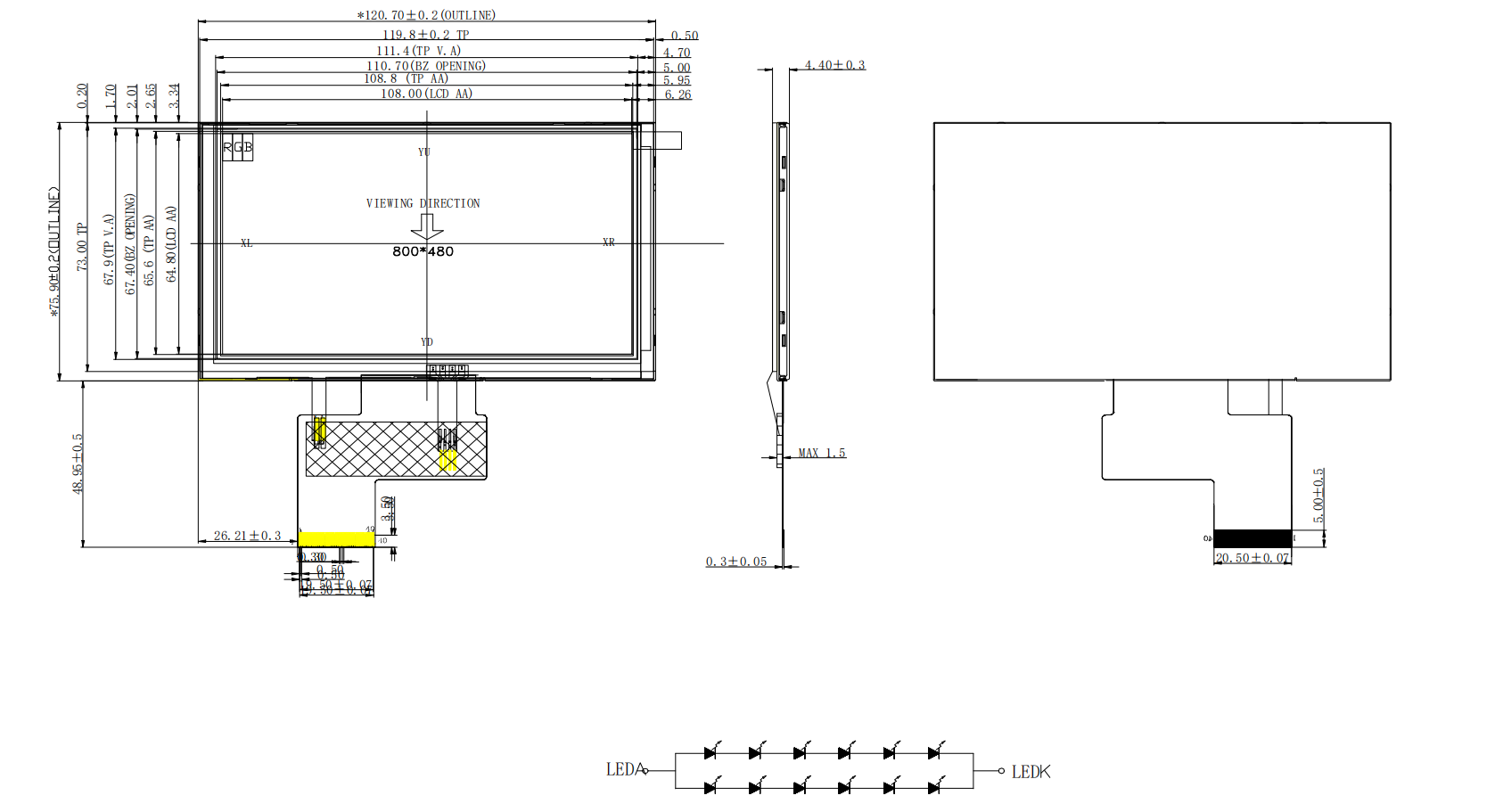

Drawing
Product Details
TFT Applications
This 5 inch TFT LCD module is the ideal choice for a range of applications, including dashcams, portable medical devices, measurement instruments, testing equipment, digital photo frames, and small entertainment systems.
|
