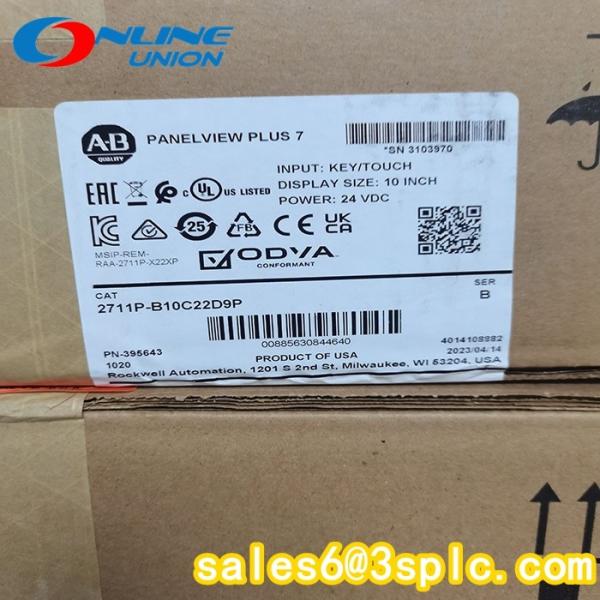

2711P-B10C22D9 Allen Bradley PanelView Plus 7 Graphic Terminal

The 2711P-B10C22D9P is a visualization component from Allen-Bradley. This is part of the 2711 PanelView Plus 7 Performance graphic operator terminal. It is primarily used to provide real-time monitoring and control of the connected process or machine. This operator terminal has a compact design that comes with a visualization screen, input interfaces and communication interfaces. This operator terminal is rated NEMA and UL Type 12, 13, 4X, also rated IP66 as Classified by UL and must be installed flush-mounted to enclosures with equivalent ratings to meet the required protection rating. This operator terminal is powered by an external supply voltage of 18-32VDC.

For visualization, the 2711P-B10C22D9P comes with a built-in 10.4-inch color TFT LCD screen with a non-replaceable backlight assembly that is rated to operated at a minimum half-life of 50,000 h at 40 °C (104 °F). The screen’s resolution is 800 x 600 SVGA in18-bit color graphics with aspect ratio of 4:3 with effective viewing area of 211 x 158 mm (8.3 x 6.2 in.). Operator interaction is initiated via the analog resistive touchscreen and embedded keypad interface. The touchscreen interface has an actuation rating of 1 million presses with operating force of 100 grams.
