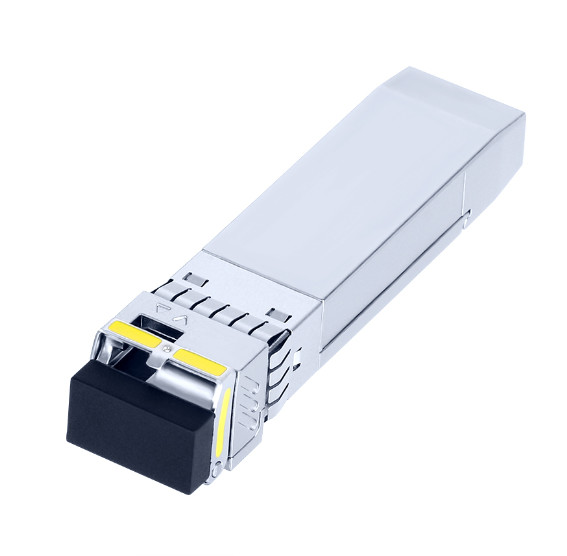

10G SFP+ BIDI Tx1550nmRx1490nm 80km Transceiver Fiber Optic Transceiver Module

10.3Gbps SFP+ Transceiver, Single Mode, 80km Reach

• Supports up to 10.7Gbps bit rates
• Hot-pluggable SFP+ footprint
• 1550nm Cooled EML laser and APD photodiode, Up to 80km for SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature: Standard: 0 to +70°C

​

Applications

• 10Gbps Optical systems
• 10GBASE-ZR at 10.3125Gbps
• 10GBASE-ZW at 9.953Gbps
• LTE systems
• Other Optical links​

• SFP+ MSA
• SFF-8472

Description

• The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.
• The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
• The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit Operating Case Tc 0 +70 °C Power Supply Voltage Vcc 3.135 3.30 3.465 V Power Supply Current Icc 450 mA Data Rate 1.0 10.3 10.7 Gbps

Optical and Electrical Characteristics
