| Categories | Custom Segment LCD Display |
|---|---|
| Brand Name: | Genyu |
| Model Number: | GY52169H |
| Certification: | RoHS, ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | 4400 pieces |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 500K pcs/ Month |
| Delivery Time: | 38-40 days |
| Packaging Details: | Foam & Carton Boxes |
| LCD Type: | HTN(Gray), positive |
| Viewing Angle: | 12 O'clock |
| Operating Temperature: | 0~+50℃ |
| Connector: | PIN, 27 numbers |
| Voltage: | 3.3V |
| Company Info. |
| Shenzhen Genyu Optical Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
HTN (High Twisted Nematic) is a variation of TN (Twisted Nematic) LCDs that offers:
Higher twist angle (about 110° to 160°, compared to 90° for TN)
Better viewing angles than standard TN
Lower cost than STN (Super Twisted Nematic)
Faster response time than STN
Common in segment LCDs, not dot-matrix or graphic LCDs
In positive mode LCDs:
Segments appear dark on a light background in transmissive or reflective displays.
Depending on the backlight and polarizer configuration, backlit displays often show light segments on a dark background.
Requires positive voltage bias to activate segments.

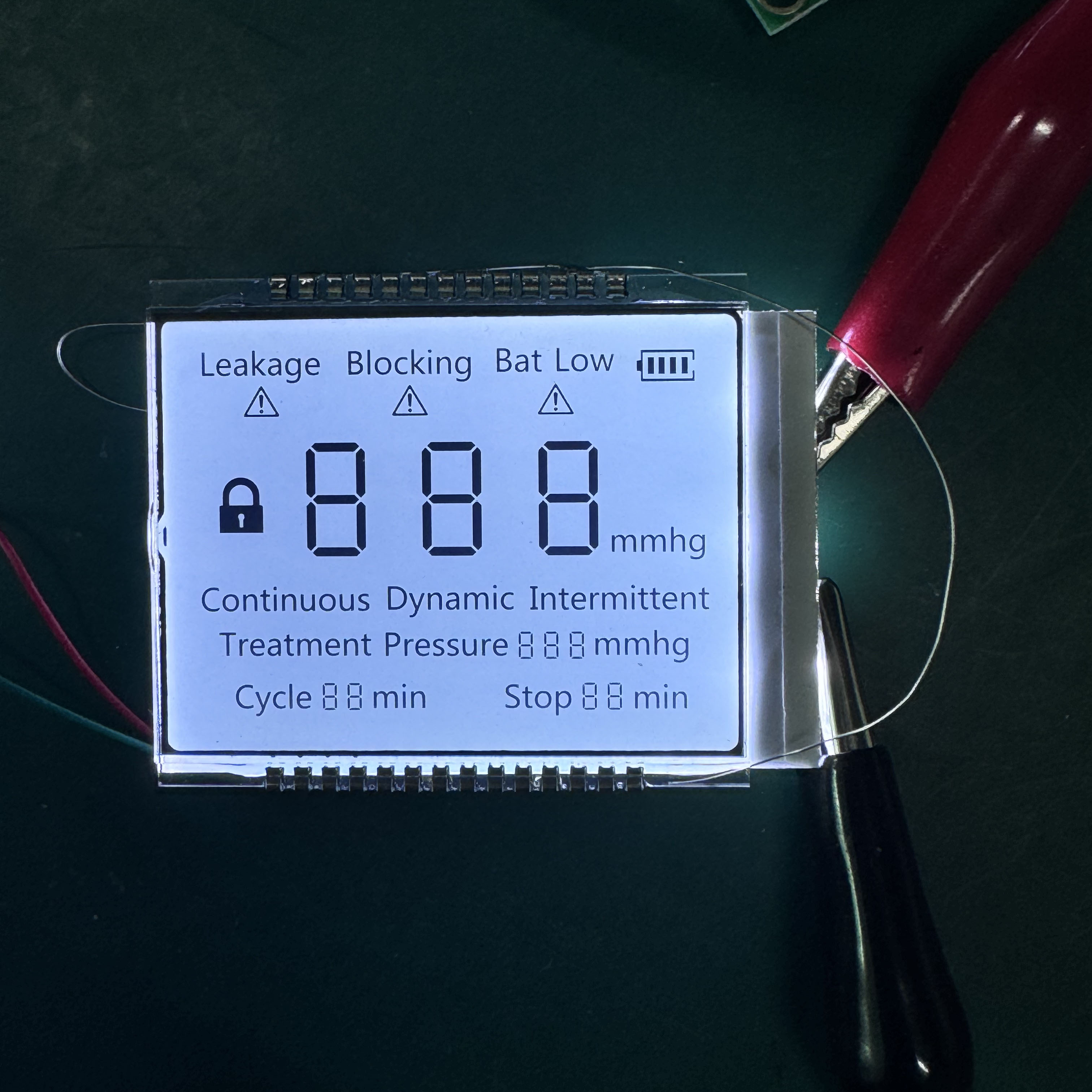

Detailed Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Model Number | GY52169H |
| 2 | LCD Type | HTN positive, transmissive |
| 3 | Viewing Angle | 12 O'clock |
| 4 | Drive Method | 1/4 Duty, 1/3 Bias, 3.0V |
| 5 | Operating Temperature | 0~+50℃ |
| 6 | Storage Temperature | -10~+60℃ |
| 7 | Connector | PIN, 27 numbers |
| 8 | Outline Dimension | 43(W)* 37(H)* 2.0(T) mm |
| 9 | LCD View Area | 40(W)* 30(H) mm |
| Application Area | Example Products | Notes |
|---|---|---|
| Home Appliances | - Microwave ovens - Washing machines - Refrigerators | Displaying time, status, temperature |
| Consumer Electronics | - Digital thermometers - Kitchen timers - Digital clocks/watches | Low-power, segment-based displays |

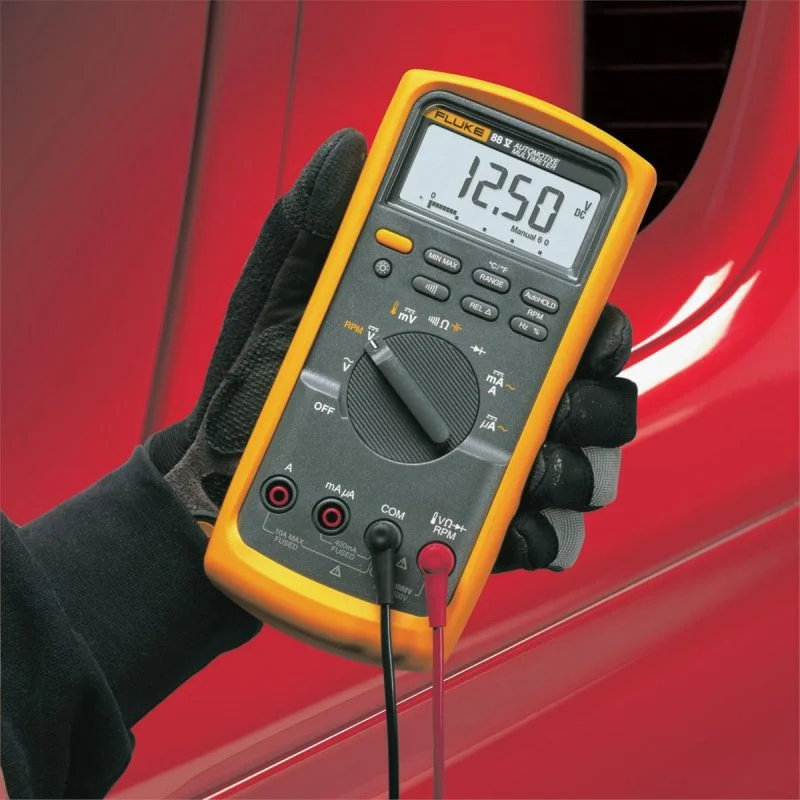

| Industrial Instruments | - Multimeters - Pressure gauges - Panel meters | Clear segment display with wide viewing angle |
| Medical Devices | - Blood pressure monitors - Glucose meters | Reliable and power-efficient |
| Office Equipment | - Calculators - Fax machines - Landline phones | Used for number/alphanumeric readouts |
| Automotive Displays | - Dashboard clocks - A/C control panels | Suitable for simple status displays |
| Remote Controls | - A/C remotes - TV remotes with displays | Compact and energy-efficient |
| Battery-Powered Devices | - Scales - Stopwatches - Portable testers |
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3. Q: How long can I get the custom samples?
A: Different product types will take different times. Usually, it will take about 25-30 days.
4. Q: Can I get free samples?
A: Yes, we would like to provide 3-10 pcs of free samples after tooling.
5. Q: What is the minimum order quantity?
A: MOQ depends on LCD sizes.
6. Q: How long is it for mass production?
A: Usually 35-40 days, it depends on your part number.
7. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
|
