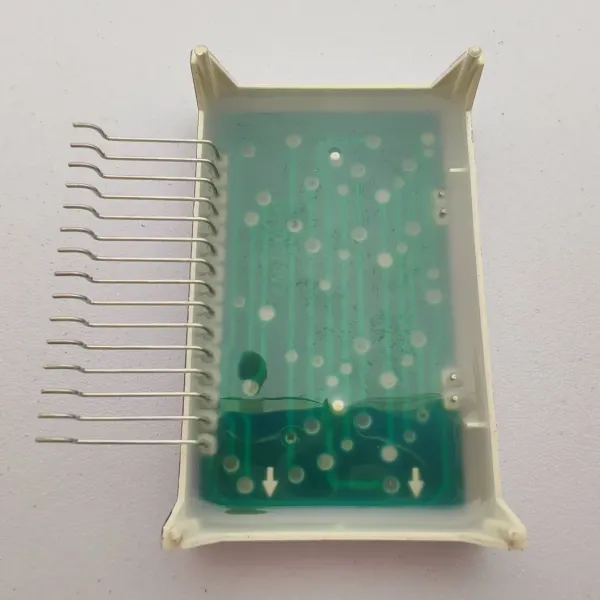

Ultra Bright White 4-Digit 7-Segment LED Display for Oven Timer
High-performance 4-digit 7-segment LED display featuring ultra
bright white illumination, common cathode configuration, and SMD
pin type. Designed specifically for oven timer controls with
exceptional visibility and reliability.
Product Specifications
| Dimensions | 56*35*15.3mm |
| Digit Height | 14.6mm (0.58 inch) |
| Polarity | Common Cathode |
| Pin Type | SMD |
| Emitting Color | Ultra Bright White |
| Application | Oven Timer Control |
| Working Temperature | +105°C to +120°C |
| Available Colors | Red, Blue, Green, White, Amber, Orange |
Technical Parameters by Color Code
Yellow Green (Code: J/JU)
Dynamic and vivid yellow green color option for enhanced visual
aesthetics.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 30 | | 40 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 569 | | 574 | nm |
Amber/Yellow (Code: Y)
Warm, inviting amber/yellow hue with magnetic visual appeal.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 585 | | 595 | nm |
Orange (Code: F)
Vibrant orange hue for energetic and attention-grabbing displays.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 600 | | 605 | nm |
Super Bright Red (Code: R)
Captivating red radiance for displays that demand attention.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 630 | | 635 | nm |
Ultra Bright Red (Code: UR)
Intensely luminous red for unmatched visibility and striking
presence.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 80 | | 100 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 625 | | 635 | nm |
Pure Green
Refreshing crisp green for eco-friendly themes and natural appeal.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.6 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 180 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 515 | | 525 | nm |
Ultra Bright Blue (Code: BH)
Cool, vibrant blue for refreshing and modern aesthetic appeal.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 140 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 460 | | 465 | nm |
Ultra Bright White (Code: WH)
Pristine white for unmatched clarity, brilliance and elegance.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 140 | mcd |
| LED Color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | | 0.30,0.33 | nm |
Absolute Maximum Ratings (Ta=25°C)
Robust performance attributes highlighting superior LED display
technology capabilities.
| Parameter | Symbol | Ratings | Unit |
|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40 to +85 | °C |
| Storage Temperature Range | Tstg | -40 to +85 | °C |
| Solder Temperature (≤3 seconds) | Th | 260 | °C |
