| Categories | Float Level Switch |
|---|---|
| Brand Name: | Schmersal |
| Model Number: | AZ16-12ZVRK-M16 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | USD18/PC |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs |
| Delivery Time: | 1WEEK |
| Packaging Details: | Paper box |
| Vorschriften: | EN ISO 13849-1 |
| Positive break travel: | 8 mm |
| Positive break force per NC contact, minimum: | 10 N |
| Type of the fixing screws: | 2x M6 |
| Company Info. |
| Mengchuan Instrument Co,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

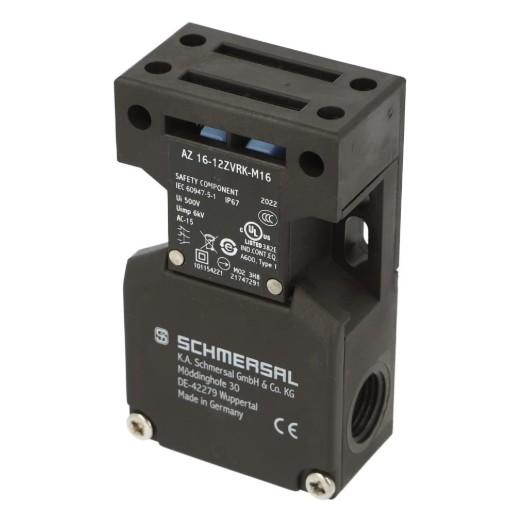

| Product type description | AZ 16-12ZVRK-M16 |
| Article number (order number) | 101154221 |
| EAN (European Article Number) | 4030661171586 |
| eCl@ss number, version 12.0 | 27-27-26-02 |
| eCl@ss number, version 11.0 | 27-27-26-02 |
| eCl@ss number, version 9.0 | 27-27-26-02 |
| ETIM number, version 7.0 | EC002592 |
| ETIM number, version 6.0 | EC002592 |
| Certificates | cULus CCC |
| Standards | EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-1 |
| Coding level according to EN ISO 14119 | Low |
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 120 g |
| Number of actuating directions | 3 |
| Number of auxiliary contacts | 1 |
| Number of safety contacts | 2 |
| Number of cable glands | 3 |
| Safety classification |
| Vorschriften | EN ISO 13849-1 |
| Performance Level, up to | c |
| Category | 1 |
| B10D Normally-closed contact (NC) | 2,000,000 Operations |
| Note | Electrical life on request. |
| B10D Normally-open contact (NO) | 1,000,000 Operations |
| Note | at 10% Ie and ohmic load |
| Mission time | 20 Year(s) |
|
