| Categories | Single Phase Hybrid Inverter |
|---|---|
| Brand Name: | RESUN |
| Model Number: | R-10K-SL-02 |
| Certification: | EN 62109-1/2, EN 61000-6-1/2/3/4,IEC 62116, IEC 61727,IEC62183,PEA&MEA,NBR 16149, NBR 16150, PORTARIA Nº 140,515, NRS097 |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
| Delivery Time: | 3-30days |
| Model: | R-10K-SL-02 |
| Power Rating: | 10.0 KW |
| Max Efficiency: | 97.6% |
| Operating Temperature Range: | -40 to 60°C |
| Battery Compatibility: | Lead-acid or LiFePO4 |
| Rated Battery Voltage: | 40～60 |
| Cooling Method: | Intelligent Fan cooling |
| Input Voltage Range: | 50/60Hz |
| PV INPUT DC voltage, current: | 90～480Vdc，40/40A |
| Communication Interfaces: | Wi-Fi/Ethernet/4G(Optional) |
| Certifications: | EN 62109-1/2, EN 61000-6-1/2/3/4,IEC 62116, IEC 61727,IEC62183,PEA&MEA,NBR 16149, NBR 16150, PORTARIA Nº 140,515, NRS097 |
| Warranty: | 5/10 years |
| Company Info. |
| RESUN ENERGY CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
• Built in instrument zero output limiter, precise control of power
output deviation, support for multiple parallel expansion of
capacity, single-phase hybrid design compatible with AC/DC
conversion, suitable for off grid/grid connected scenarios with
high requirements for power accuracy.
• With zero limit instrument technology to ensure output stability,
the multi link architecture can flexibly combine 4 devices to work
together, and achieve bidirectional energy management in
single-phase mixed mode, providing accurate power conversion
solutions for distributed power stations, household energy storage
and other scenarios.

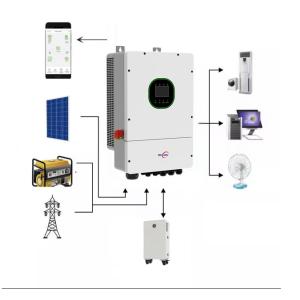

• A multi inverter equipped with zero output limiting instruments
reduces power fluctuations through precise control, and
single-phase hybrid technology adapts to multiple power inputs,
supporting independent operation off grid or complementary grid
connection, meeting the stable power supply needs of high-precision
electrical equipment.
KEY STRENGTHS
• Max 20A input current to better match high power panel
• 200% DC oversizing
• Built-in meter zero export limiter
| MODEL | R-10K-SL-02 |
| DC Input | |
| Max. PV Array Power [Wp]@STC | 20000 |
| Max. DC Voltage [V] | 500 |
| MPPT Voltage Range [V] | 90～480 |
| Rated DC Voltage [V] | 360 |
| Start Voltage [V] | 80 |
| Max. DC Input Current [A] | 40/40 |
| Max. DC Short Circuit Current [A] | 50/50 |
| No. of MPPT | 2 |
| Battery Parameters | |
| Battery Type | Lead-acid or LiFePO4 |
| Battery Voltage Range [V] | 40～60 |
| Max. Charging/Discharging Current [A] | 190 |
| AC Output [On-grid] | |
| Rated AC Power [W] | 10000 |
| Max. Apparent Power [VA] | 10000 |
| Rated Output Current [A]@230Vac | 43.5 |
| Max. Output Current [A] | 43.5 |
| Rated AC Voltage/Range [V] | L+N+PE, 220,230,240/180～280 |
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 |
| Power Factor [cos φ] | 0.8 leading～0.8 lagging |
| Total Harmonic Distortion [THDi] | <3% |
| AC Input [On-grid] | |
| Rated AC Voltage/Range [V] | L+N+PE, 220,230,240/180～280 |
| Rated Input Frequency [Hz] | 50,60 |
| Max. Input Current [A]@230Vac | 91 |
| AC Output [Back-up] | |
| Max.Output Power [VA] | 10000 |
| Max. Output Current [A] | 45.5 |
| Peak Output Apparent Power [VA] | 12000,60s |
| Rated AC Voltage/Range [V] | L+N+PE, 220,230,240/180～280 |
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 |
| Output THDv (@ Linear Load) | <3% |
| Efficiency | |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 97.0% |
| Protection | |
| Battery Input Reverse Polarity Protection | Integrated |
| Over load Protection | Integrated |
| AC Short Circuit Current Protection | Integrated |
| DC Surge Protection | Integrated |
| AC Surge Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AFCI Protection | Optional |
| RSD Protection | Optional |
| Interface | |
| PV Connection | Terminal Block |
| AC Connection | Terminal Block |
| Battery Connection | Terminal Block |
| Display | LED+APP |
| Communication | Wi-Fi/Ethernet/4G(Optional) |
| General Parameters | |
| Topology | Non-isolated |
| Operating Temperature Range | -40℃ to +60℃ (50℃ to 60℃ with derating) |
| Cooling Method | Intelligent Fan cooling |
| Ambient Humidity | 0-100% Non-condensing |
| Altitude | 4000m (>3000m Power Derating) |
| Noise [dBA] | <50 |
| Ingress Protection | IP65 |
| Dimensions [H*W*D] [mm] | 590*380*241 |
| Weight [kg] | 29 |
| Warranty [Year] | 5/10 |
| Standard | EN 62109-1/2, EN 61000-6-1/2/3/4,IEC 62116, IEC
61727,IEC62183,PEA&MEA,NBR 16149, NBR 16150, PORTARIA Nº 140,515, NRS097 |
|
