Transmission Line Stringing Equipment 1x120KN Pulling Type Cable Tensioner

Categories Transmission Line Stringing Equipment
Brand Name: HANYU
Model Number: TY1X120III
Certification: ISO9001
Place of Origin: China
MOQ: 1set
Price: USD74,500.00-79,000.00/Set
Payment Terms: L/C, T/T
Supply Ability: 10Sets/Month
Delivery Time: 15-35days
Packaging Details: Container
Type: Pulling Type Cable Tensioner
Max continuous tension: 1x120kN
Max reverse pulling force: 1x90kN
Total weight: 8500kg
Bull-wheel diameter: 1500mm
Diese: 77kw(103hp)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Transmission Line Stringing Equipment 1x120KN Pulling Type Cable Tensioner

Transmission Line Stringing Equipment 1x120KN Pulling Type Cable Tensioner

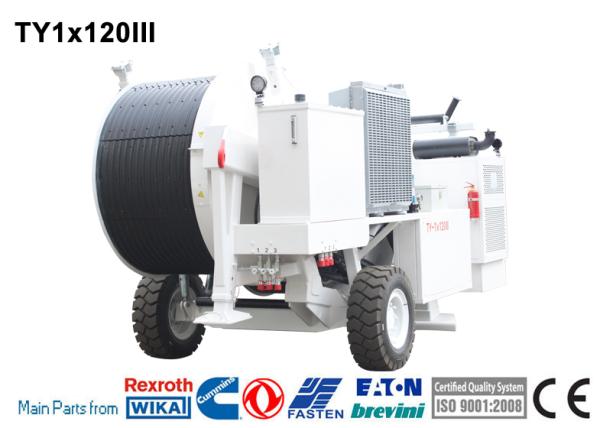

TY1X120III Hydraulic Tensioner
  • The machine allows for the tension stringing of triple-bundle conductor of 630mm2 and below in mountainous and hilly areas, of triple-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Engine
  • Diesel 77kw(103hp)
  • Cooling system water
  • Electrical system 24V
Characteristics
  • Max conductor diameter: 40mm
  • Total weight: 8500kg
  • Bull-wheel diameter: 1500mm
  • Groove number: 12
  • Overall dimension (length*width*height): 5200×2300×2700mm
Performance
  • Max continuous tension: 1x120kN
  • Max intermittent tension: 1x130kN
  • Max speed: 5km/h
  • Max reverse pulling force: 1x90kN
  • Pull at max speed: 1x50kN
  • Speed at max tension: 2.5km/h
Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.
Additional Devices
  • Air brake system for the trailer(extra charge)
  • Digital speed and meter counter
  • 3 hydraulic conductor clamps for drum change operations (extra charge)
  • Lighting system for the trailer
Configuration
  • Digital speed meters
  • Digital meter counters
  • Hydraulic oil cooling system
  • Grounding connection point
  • Hydraulic dynamometers
  • Hydraulic power pack to control up to 3 separated drum stands with hydraulic motor
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic front stabilizer
Main configuration
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Engine: Cummins
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Main motor:German Rexroth/French Leduc
  • Main hydraulic valves: USA Sun / Italy ATOS
