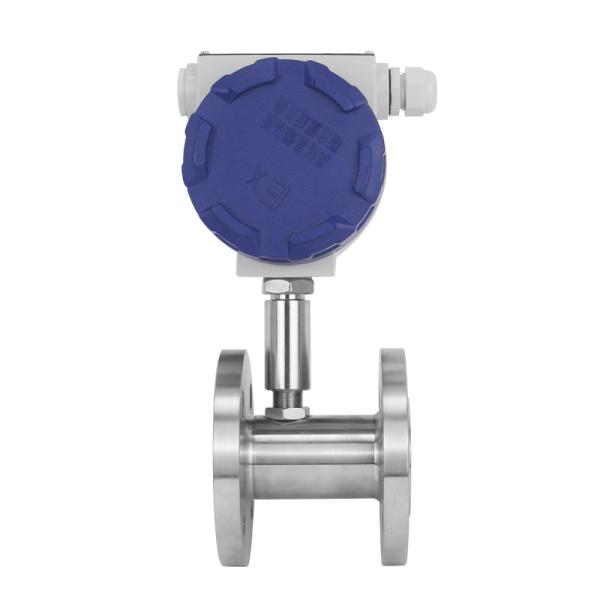

Yunyi Digital Turbine Flow Meter High Accuracy Gas Sensor for Fuel & Liquid Dn4 I2c Rs485 OEM Customizable

Yunyi Digital Turbine Flow Meter High Accuracy Gas Sensor for Fuel & Liquid Dn4 I2c Rs485 OEM Customizable

1. Working Principle
The liquid turbine flowmeter works based on the principle of turbine rotation:

When the fluid passes through the flowmeter, it drives the turbine blades to rotate, and its speed is proportional to the flow rate.

The rotation of the turbine is converted into an electrical pulse signal by a magnetoelectric induction or photoelectric sensor.

After the signal is processed by the amplifier, a pulse signal or a standard current signal (such as 4-20mA) with a frequency proportional to the flow rate is output, and the flow value is finally calculated.

2. Core Structure
Turbine rotor: made of lightweight materials (such as plastic, aluminum alloy), and the blades are precisely balanced.

Bearing system: supports the turbine and affects the life of the instrument (common materials: tungsten carbide, ceramic).

Magnetoelectric/photoelectric sensor: detects the turbine speed, non-contact design.

Signal converter: converts the pulse signal into a standard output.

Shell: usually stainless steel (such as 304/316), corrosion-resistant and pressure-resistant.

YUN YI ,we are professional manufacturer that engaged in the fields of pressure measurement instrument.
we have 12 years sensor producing and developing experiences

Xi'an Yunyi Instrument Co., Ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.

12 moths warranty
OEM&ODM
Near 1/2 buyers found pressure sensor & contact us
