Multi Axis CNC EDM Small Hole Drilling Sjd706 Advanced Metal-Drilling Process Usage

Categories CNC Small Hole Drilling EDM Machine
Model NO.: SJD706
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools
Certification: ISO 9001
Condition: New
Transport Package: Wooden Case
Specification: 2300x2100x2500
Trademark: TOSUN
Origin: Suzhou
HS Code: 8456301090
Supply Ability: 1000PCS/Year
After-sales Service: Yes
Warranty: 1 Year
Application: Metal
Process Usage: Metal-Drilling CNC Machine Tools
Movement Method: Linear Control
Control Method: Open-Loop Control
Customization: Available | Customized Request
Place of Origin: China
Brand Name: TOSUN
MOQ: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

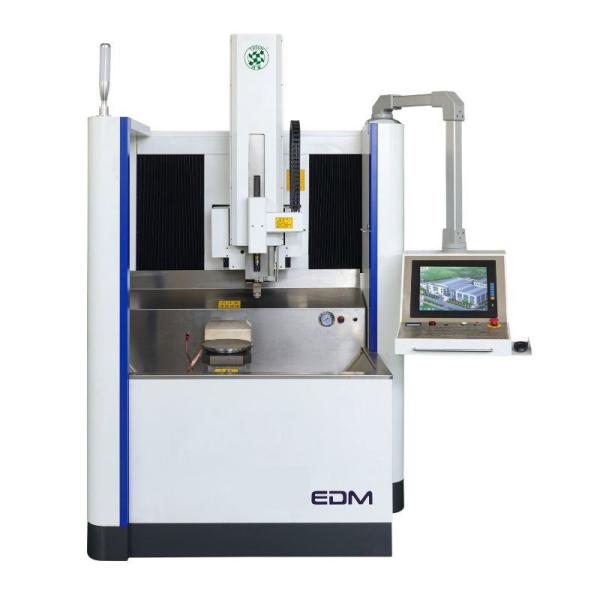

Multi Axis CNC EDM Small Hole Drilling Sjd706 Advanced Metal-Drilling Process Usage

Product Description

SJD706 is mainly used for electric discharge hole drilling on three-dimensional surfaces, which can process various conductive materials and is suitable for blind hole and through-hole machining. It is specialized for drilling turbine blade film cooling holes.
Features:

  1. Bullhead ram type mechanical structure
  2. The smallest aperture0.2mm
  3. Cradle type turntable A,C axis
  4. X, Y, Z, S, B,C axis position loop control can be achieved
  5. Film cooling holes at any angle machining in one time setup
  6. Automatically determine the penetration hole and depth control
  7. Patented inverted cone machining
  8. Processing data can be traced back
  9. Multi-coordinate and G code programming
  10. Pneumatic centering of the electrode shank ER collet
  11. Offline electrode replacement
  12. Memory origin position anytime
  13. AC servo motor with absolute encoder
  14. Deionized water treatment system
  15. The slide mechanical structure and precision in long-term
  16. Online workpiece measurement
  17. Hand box and encoder moving

Product Parameters

No.DescriptionUnitSpecification
1ModelSJD706
2Worktable Size (L×W)mmΦ250
3X,Y,Z-axis Travelmm400×300×300
4S-axis Travelmm400
5B-axis Travel°±90
6C-axis Travel°0-360
7Max. Workpiece Heightmm300
8Max. Workpiece WeightKg25
9Max. Working Solution PressureMpa10
10Max. Working CurrentA30
11Electrode Wire DiametermmΦ0.15~Φ3.0
12Max. Drilling Speedmm/min30-60
13Max. Depth Diameter Ratio1:300
14Machine Dimensionmm2300x2100x2500

Detailed Photos

Multi Axis CNC EDM Small Hole Drilling Machine Sjd706Multi Axis CNC EDM Small Hole Drilling Machine Sjd706Multi Axis CNC EDM Small Hole Drilling Machine Sjd706

Packaging & Shipping

Multi Axis CNC EDM Small Hole Drilling Machine Sjd706

Multi Axis CNC EDM Small Hole Drilling Machine Sjd706

Company Profile

Multi Axis CNC EDM Small Hole Drilling Machine Sjd706
Multi Axis CNC EDM Small Hole Drilling Machine Sjd706

Multi Axis CNC EDM Small Hole Drilling Machine Sjd706
