Precision 82mm Spindle Bore CNC Lathe Machine with Multifunctional Flat Bed Type

Categories	CNC Lathe Machine
Type:	Horizontal
Max. Length of Workpiece (mm):	2000
Structure:	Flat Bed Lathe
Machining Capacity:	Medium Duty
Width of bed (mm):	500 mm
Spindle Motor Power(kW):	7.5
No. of Spindles:	Single
Number of Axes:	2
Travel (X Axis)(mm):	295 mm
Travel (Z Axis)(mm):	1000 mm
Positioning Accuracy (mm):	±0.005
Repeatability (X/Y/Z) (mm):	±0.01
Place of Origin:	Henan, China
Brand Name:	TIMAC
Model Number:	CK-500
Voltage:	As request
CNC Control System:	KND
Tool Post Stations:	4
Weight (KG):	2100
Warranty:	1 Year
Key Selling Points:	Multifunctional
Machinery Test Report:	Provided
Video outgoing-inspection:	Provided
Warranty of core components:	1 Year
CNC or Not:	CNC
Bed width:	390mm
Spindle nose:	A2-8mm
Chuck size:	250mm
X/Z-axis min. feed unit:	0.001mm
Tool post type:	V4
Tool section size:	25x25mm
Tailstock quill diameter:	75mm
Max. Swing Diameter (mm):	500
Certification:	CE,ISO
Condition:	New
Applicable Industries:	Building Material Shops, Manufacturing Plant, Farms, Retail, Energy & Mining
Showroom Location:	Canada, United States, Italy, Germany
Marketing Type:	Ordinary Product
Core Components:	Bearing, Motor, Gear, Engine
Max. Spindle Speed (r.p.m):	1600 r.p.m
Spindle Bore(mm):	82
Max. Turned Length (mm):	2000
Packaging Details:	In plywood cases.
Port:	China port.
Supply Ability:	300 Set/Sets per Month
Price:	$25,800.00/sets >=1 sets
MOQ:	1 set

Contact Now

Add to Cart

Company Info.

Zhengzhou Timeway Machine Tool Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Precision 82mm Spindle Bore CNC Lathe Machine with Multifunctional Flat Bed Type

Multifunctional Flat Bed Type CNC Lathe / Precision 500mm Swing CNC Lathe Machine

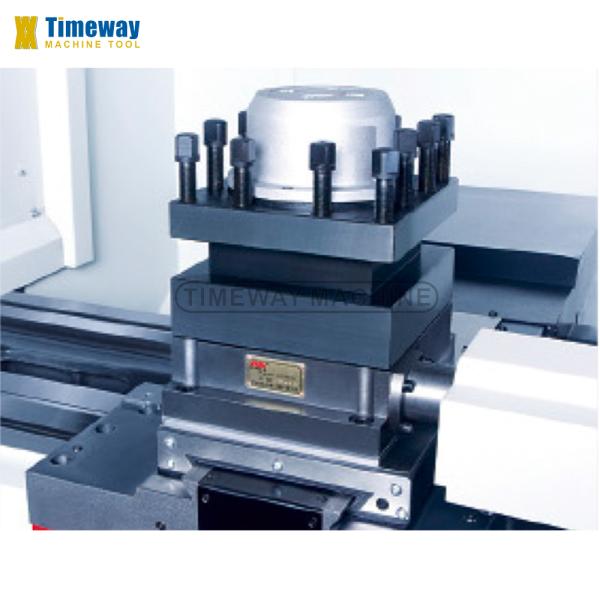

Standard accessories: GSK 980TDI， 3-jaw chuck, 4-station electronic tool post， Electronic handwheel， Lubrication system， Cooling system， Work lamp， Protection guard， Axial fan， Leveling blocks & bolts， Tools & tool-box， Operation manuals. Optional accessories: FANUC CNC system, SIEMENS CNC system, 4-jaw chuck, Horizontal 6-station tool post, Horizontal 8-station tool post, Pilot lamp, Air conditioner, Heat exchanger, Hydraulic chuck, Special fixture, Tool setter, Chain type chip conveyor.

PRODUCT SPECIFICATIONS

Specification	Unit	CK400	CK500	CK660
Max. swing over bed	mm	420	500	660
Max.. swing over cross slide	mm	210	290	430
Distance between centers	mm	750	1000/1500/2000	1000/1500/2000
Max. turning length	mm	750	1000/1500/2000	1000/1500/2000
Bed width	mm	335	390	390
Spindle nose	mm	A2-6	A2-8	D10
Spindle bore	mm	58	82	105
Spindle taper	-	MT6	Metric 90	Metric 90
Spindle speed (Manual steps)	rpm	60-2000 (3)	45-1600 (3)	45-1600 (3)
Center height	mm	210	250	330
Chuck size	mm	200	250	320
Cross travel (X)	mm	295	295	365
Longitudinal travel (Z)	mm	750	1000/1500/2000	1000/1500/2000
X/Z-axis rapid feed speed	mm/min	8/10	8/12	8/12
X/Z-axis min. feed unit	mm	0.001	0.001	0.001
X/Z-axis feed motor torque	NM	5/7	5/7	7.5/10
Tool post type	-	V4	V4	V4
Tool section size	mm	25x25	25x25	25x25
Tailstock quill diameter	mm	65	75	75
Tailstock quill travel	mm	150	150	150
Tailstock quill taper	-	M4	M5	M5
Main motor power	kw	5.5	7.5	11/15
Coolant pump power	kw	0.12	0.12	0.12
Machine weight	kg	1800	2100/2300/2600	2100/2500/2800

Company Introduction

Exhibition & Training

Package & Transportation

Customers Visited

Why Choose Us

Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;

2 . Professional R&D team and 25 years exportexperience;

3 . Exported more than 70 countries;

4 . CE, ISO Certificates;

5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);

6 . 12 months quality warranty;

7 . Oversea engineers available for problem resolving;

FAQ

Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc.

Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
