Small Scale 5 Tons Mini Gold Processing Plant for Alluvial Gold Gravity Separation

Categories Gold Washing Machine
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining, Advertising Company, Other
Showroom Location: Italy, Germany, Viet Nam, Peru, India, Kenya
Condition: New
Type: Gravity Separator
Production Capacity: 5-10TPH
Place of Origin: Henan, China
Brand Name: ZHENGZHOU Sinolion
Voltage: 380V
Dimension(L*W*H): 3000*800*1500mm
Weight: 600 KG
Warranty: 1 Year
Marketing Type: Hot Product 2024
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, Pressure vessel, Engine, Other
Key Selling Points: Easy to Operate
Application: Alluvial Gold Washing
Color: Customized Making
Feeding size: 300mm
After-sales Service Provided: Video Technical Support
Material: Steel
Processed materials: Alluvial Gold Sand Gold
Price: $4,080.00/sets
MOQ: 1 unit
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Small Scale 5 Tons Mini Gold Processing Plant for Alluvial Gold Gravity Separation

Product Description

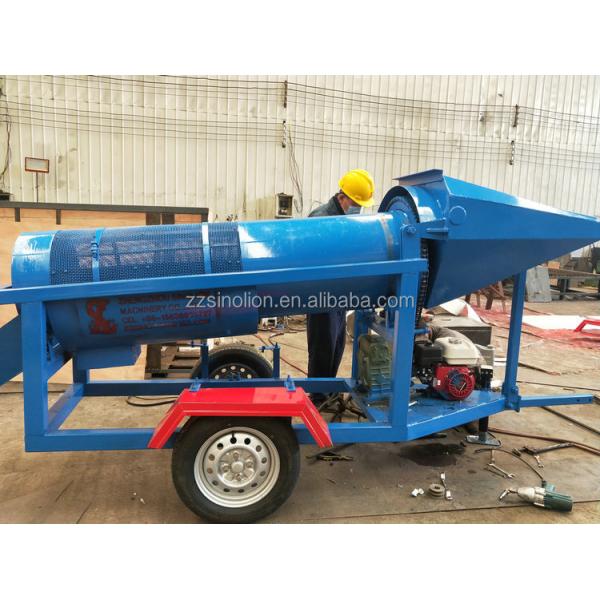

Gold Mobile Trommel Screen 0519 can process 5-10 tons of materials per hour, with a recovery rate of up to 92%. 0519 drum screen is suitable for placer gold and alluvial gold. It is a movable platform with a traction on the front side of the traction, which can be well fixed and moved on the sand. It is mianly consist of motor, drum device, frame, tries, grille, and inlet and outlet. We can also match a HONDA gasoline engine or a diesel engine.
The gold washing trommel 0519 can be washing and screening. When GMTS 0519 is running, it is powered by the motor, and the materials enters from the feed inlet. Some large pieces of materials are blocked outside the grille, and small pieces of materials enter the drum to start screening. Since the density and specific gravity of gold are different, so during the washing and screening process, heavy metals containing gold will be screened out from the discharge port.The trommel screen is equipped with a engine, which has a long service life and does not need to worry about outdoor power generation. It is economical, durable, safe and powerful.

Drum Device
The cylinder screen is a single-layer structure, which is used when the materials do not contain bulk materials. The advantage of the single-layer structure is that the entire cylinder is lightweight, which can reduce the weight and energy consumption of the entire equipment.
The screen adopts high manganese steel woven screen, which has high efficiency and long service life. The screen is easy to wash and will not block. It is have a breaking knife inside the trommel screen, which can break some hard stones wrapped in gold.





Gold dust separated

Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collecting.




Hopper grate
The grille can clog large pieces of materials outside, and smaller placer gold and alluvial gold enter the hopper for screening, which is beneficial to improving the efficiency of the screening hopper.

Product Details
Specification
Model
GMTS0519
Drum Diameter
500mm
Drum Length
1910mm
Capacity
5-10 tons/hour
Power
1.5kw
Motor
Diesel engine
HONDA gasoline engine
Electric motor
sluice box
1000*6000mm
Angle adjustable 2-8°
Grizzly
Steel bard diameter 20mm
Bar spacing 50mm
Input hopper: 0.5m³
Weight
600kg
