| Categories | Baler Machine |
|---|---|
| Warranty: | 1 Year |
| Type: | Other |
| Applicable Industries: | Energy & Mining |
| Showroom Location: | None |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Warranty of core components: | 1 Year |
| Core Components: | Motor |
| Condition: | New |
| Application: | Food, Textiles, waste paper,cardboard,carton,used clothing, Packaging straw |
| Packaging Type: | Cartons, Bags, Belt, Bale |
| Packaging Material: | Plastic, Wood, iron wire |
| Automatic Grade: | Automatic |
| Driven Type: | Hydraulic |
| Voltage: | 380V |
| Power: | 22 |
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Weight: | 35000 KG |
| Dimension(L*W*H): | 10200*16200*5370 |
| Key Selling Points: | Automatic |
| Product name: | horizontal baler machine / waste paper baling press machine |
| Keyword: | carton bale press machine |
| Name: | waste paper baling press machine |
| Key Word: | horizontal waste paper bale press machine |
| Color: | as per customized |
| Capacity: | 10-15Tons/h |
| Sales service: | engineer overseas available |
| Supply Ability: | 50 Set/Sets per Month carton recycling machine |
| After Warranty Service: | Video technical support |
| Price: | $12,500.00/sets >=1 sets |
| MOQ: | 1 unit |
| Company Info. |
| Zhengzhou Sinolion Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

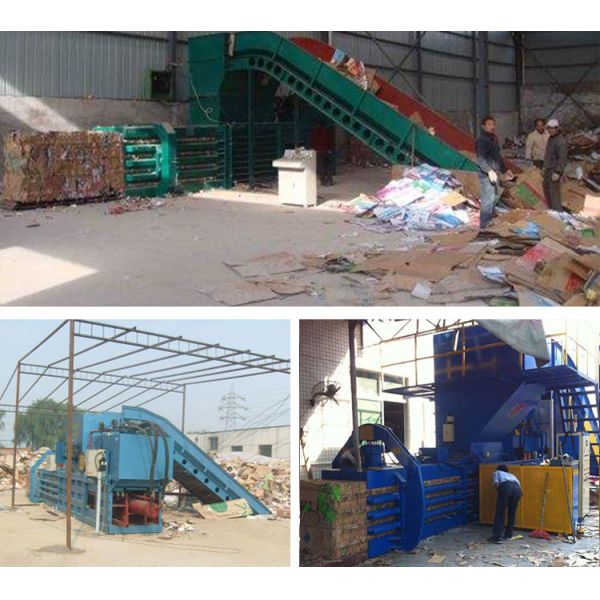

Horizontal hydraulic baling machine is used for packing materials .Such as cotten ,wool,sack,waste paper,crop stalks,rice straw,plastic,cotton,sawdust etc,for easy storage and transportation.Adopting PLC Automatic controller operation system.The system will automaticly ensure the safety of labor and equipment.It is also characteristic of low power consumption ,high output,easy operation etc.
The baler machine with the door is widely used to press waste plastic bottle.
Main Features
1.The host frame system: More high quality steel gas shielded
welding casting solid framework, advanced mechanical design makes
equipment durability.
2. Conveying system:High quality thickening flange beam frame, high
strength steel plate type transmission belt.
3. Hydraulic System : Hydraulic pump, solenoid valve, key parts
adopt imported components and hydraulic cylinder oil seal, packing
pressure, fast, durable, low noise.
4.Electric control system: Using Siemens motor, original mitsubishi
PLC programming controller.Other buttons, sensors, infrared
correlation, such as remote control system for the key parts adopt
imported components, key operation simple and convenient
maintenance.
5.Security alarm system:Program control five safety automatic lock
down alarm. In the equipment misuse, lack of power supply, power
phase sequence error, high pressure, people stray into the mouth
when the automatic shutdown alarm.
| Model | YYD-100 | YYD-120 | YYD-160 | YYD-200 |
| Main nominal thrust (KN) | 1000 | 1200 | 1600 | 2000 |
| Baler Size W*H*L(mm) | 900*1000*adjustable | 900*1100*adjustable | 1100*1300*adjustable | 1100*1300*adjustable |
| Bale density(kg/m3) | 400-450 | 400-450 | 400-450 | 400-450 |
| Voltage | 3PH380V | 3PH380V | 3PH380V | 3PH380V |
| Power(KW) | 22 | 22 | 22+15 | 22+15 |
| Capacity(Ton/hour) | 2-5(3-5bag) | 5-8(5-10bag) | 8-12(8-10bag) | 10-15(10-12bag) |
| Bale line | 5 | 5 | 5 | 5 |
| Feed opening sizeL*W(mm) | 1500*820 | 1685*860 | 1880*1060 | 1960*1145 |
| Weight(KG) | 18000 | 23000 | 25000 | 35000 |
| Machine size | 8660*12000*4120 | 8700*12200*4120 | 8700*12200*4120 | 10200*16200*5370 |
| Automatic Grade | Semi-automatic | Automatic | Automatic | Automatic |
1. Payment accepted: After confirming all the details with our sales,
we will make contract for you to make deposit first and the balance
need to be cleared against shipping. Generally we accept most of the payment methods like TT, L/C,
PayPal, West union, Moneygram.
2. Lead time: 7 working days against your deposit.
3. What about the quality: We use the best national certified steel
and top brand e-parts
4. Warranty: 12 months warranty and life time service.
5. Certificate: ISO, CE, CCC
6. How can I get to your company: We are located in zhengzhou City. You can fly to XINZHENG INTERNATIONAL AIRPORT and we will pick you
up there.
If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
|
