| Categories | Series LT455...W, DIP Type Ceramic Filter |
|---|---|
| Brand Name: | SJK |
| Model Number: | LT455EW |
| Certification: | SGS, RoHS, REACH |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30Kpcs per Month |
| Delivery Time: | 2-3 wks |
| Packaging Details: | 1Kpcs/Bag |
| Model: | LT455W Series Ceramic Filters |
| Center frequency: | 455KHz |

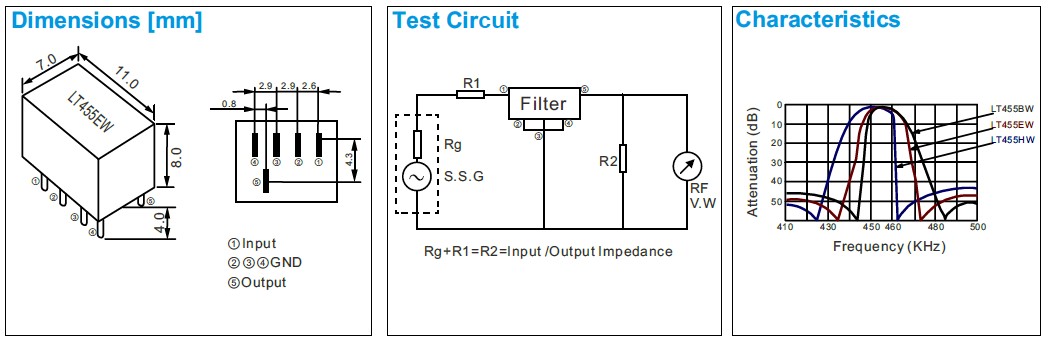

| Size: | 11*7*8 mm |
| Applications: | Radio, Telecommunications |
| Pins: | 3+2 pins or 4+1 pins |
| Type: | Dip type |
| Color: | Black |
| Company Info. |
| Shenzhen Crystal Technology Industrial Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Dip 5Pins Type LT455W Ceramic Filter With 455KHz 11*7*8mm
Input/Output impedance: 1000Ω~2000Ω
High selective ceramic filters
Center frequency: 455KHz
Low insertion loss: 4dB, 6dB Max
Passband ripple: 2dB Max
Applications: Radio, Telecommunications, Automotive and more
RoHS Compliant
Specifications
LT450W Series
| Part Number | Center Frequency (kHz) | Insertion Loss (dB) Max | Pass Band Ripple (dB) Max. | 6dB Bandwidth (kHz) Min | 50dB Bandwidth (kHz) Min | Stop Band Att. ±100KHz (dB) Min | Input-Output Impedance (Ω) |
| LT450BW | 450±2.0 | 4 | 2 | ±15 | ±30 | 40 | 1500 |
| LT450CW | 450±2.0 | 4 | 2 | ±12.5 | ±24 | 40 | 1500 |
| LT450DW | 450±1.5 | 4 | 2 | ±10 | ±20 | 40 | 1500 |
| LT450EW | 450±1.5 | 6 | 2 | ±7.5 | ±15 | 40 | 1500 |
| LT450FW | 450±1.5 | 6 | 2 | ±6 | ±12.5 | 40 | 2000 |
| LT450GW | 450±1.5 | 6 | 2 | ±4.5 | ±10 | 40 | 2000 |
| LT450HW | 450±1.0 | 6 | 2 | ±3 | ±9 | 40 | 2000 |
| LT450IW | 450±1.0 | 6 | 2 | ±2 | ±7.5 | 40 | 2000 |
| LT450HTW | 450±1.0 | 6 | 2 | ±3 | ±9 | 60 | 2000 |
LT455W Series
| Part Number | Center Frequency (kHz) | Insertion Loss (dB) Max | Pass Band Ripple (dB) Max. | 6dB Bandwidth (kHz) Min | 50dB Bandwidth (kHz) Min | Stop Band Att. ±100KHz (dB) Min | Input-Output Impedance (Ω) |
| LT455BW | 455±2.0 | 4 | 2 | ±15 | ±30 | 40 | 1500 |
| LT455CW | 455±2.0 | 4 | 2 | ±12.5 | ±24 | 40 | 1500 |
| LT455DW | 455±1.5 | 4 | 2 | ±10 | ±20 | 40 | 1500 |
| LT455EW | 455±1.5 | 6 | 2 | ±7.5 | ±15 | 40 | 1500 |
| LT455FW | 455±1.5 | 6 | 2 | ±6 | ±12.5 | 40 | 2000 |
| LT455GW | 455±1.5 | 6 | 2 | ±4.5 | ±10 | 40 | 2000 |
| LT455HW | 455±1.0 | 6 | 2 | ±3 | ±9 | 40 | 2000 |
| LT455IW | 455±1.0 | 6 | 2 | ±2 | ±7.5 | 40 | 2000 |
| LT455HTW | 455±1.0 | 6 | 2 | ±3 | ±9 | 60 | 2000 |
