| Categories | IPS TFT LCD Display |
|---|---|
| Brand Name: | RGH |
| Model Number: | RT43WH029B |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen,China |
| MOQ: | 3PICS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 3.5kk |
| Delivery Time: | 3-5weeks |
| Packaging Details: | Standard Exportation Package |
| Size: | 4.3 inch |
| Resolution: | 480X(RGB)X272 |
| Viewing Direction: | ALL o’clock |

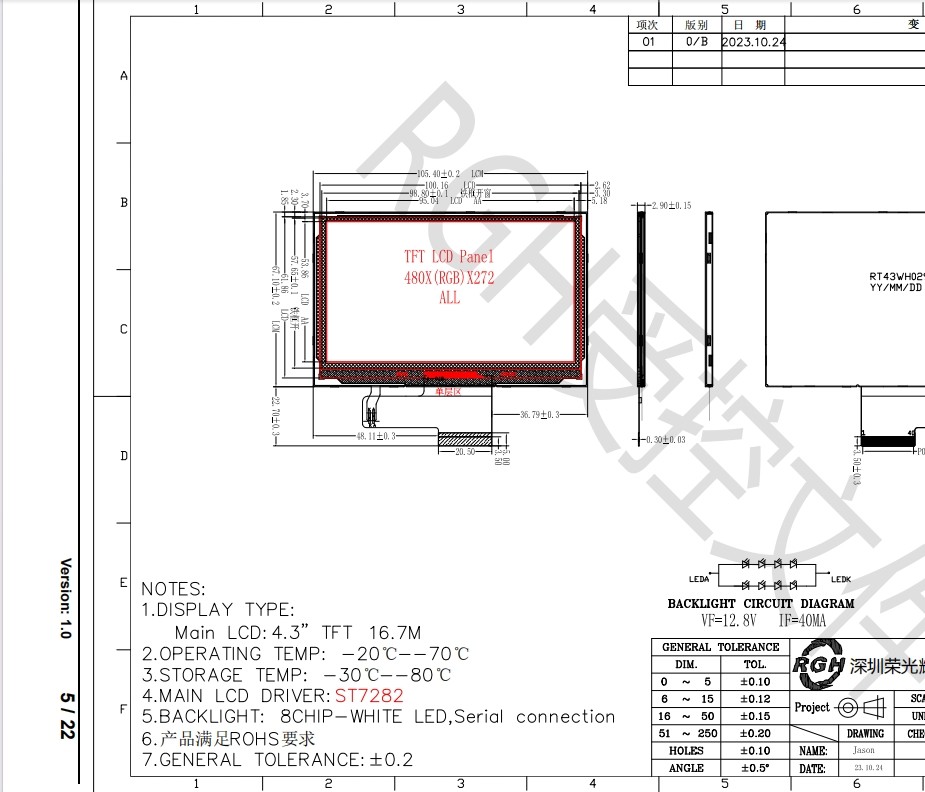

| LCM Outline Dimension: | 105.40(H) X 67.10(V) X2.90(T) mm |
| Viewing area: | 96.04(H) X54.86 (V) |
| Active area: | 95.04(H) X53.86 (V) |
| Operating temperature: | -20℃~70℃ |
| Storage temperature: | -30℃~80℃ |
| Driving IC: | ST7282A |
| Response time: | 30ms |
| Contrast ratio: | 1000:1 |
| Luminance: | 300CD/M2 |
| Interface: | MIPI |
| Weight: | TBD |

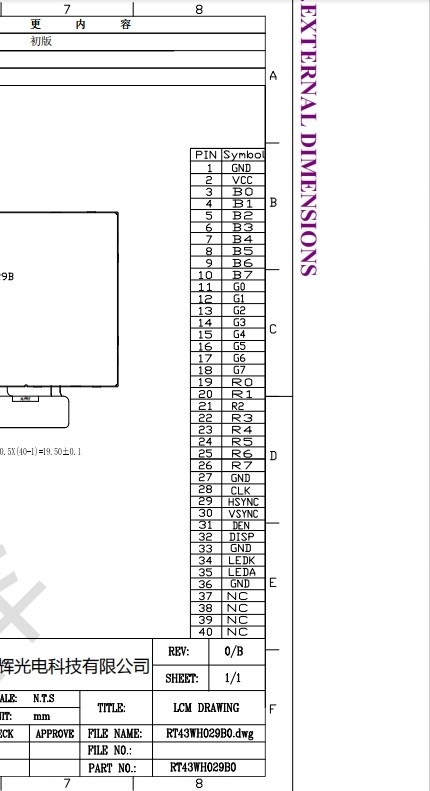

| NO. | Symbol | Level | Function |
| 1 | GND | Ground. | |
| 2 | VCC | Power supply. | |
| 3-10 | B0-B7 | Data Bus.Serial 8-bit data input selection. | |
| 11-18 | G0-G7 | Data Bus.Serial 8-bit data input selection. | |
| 19-26 | R0-R7 | Data Bus.Serial 8-bit data input selection. | |
| 27 | GND | Ground. | |
| 28 | CLK | Sample clock. | |
| 29 | HS | Horizontal synchronizingsignal. | |
| 30 | VS | Vertical synchronizing signal. | |
| 31 | DEN | Data Enable. | |
| 32 | DISP | DISP | |
| 33 | GND | Ground. | |
| 9A | LEDK | LED,cathode. | |
| 35 | LEDA | LED,anode. | |
| 36 | GND | Ground. | |
| 37-40 | NC | NC |
 |  |
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and
3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the CTP?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 20 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
|
