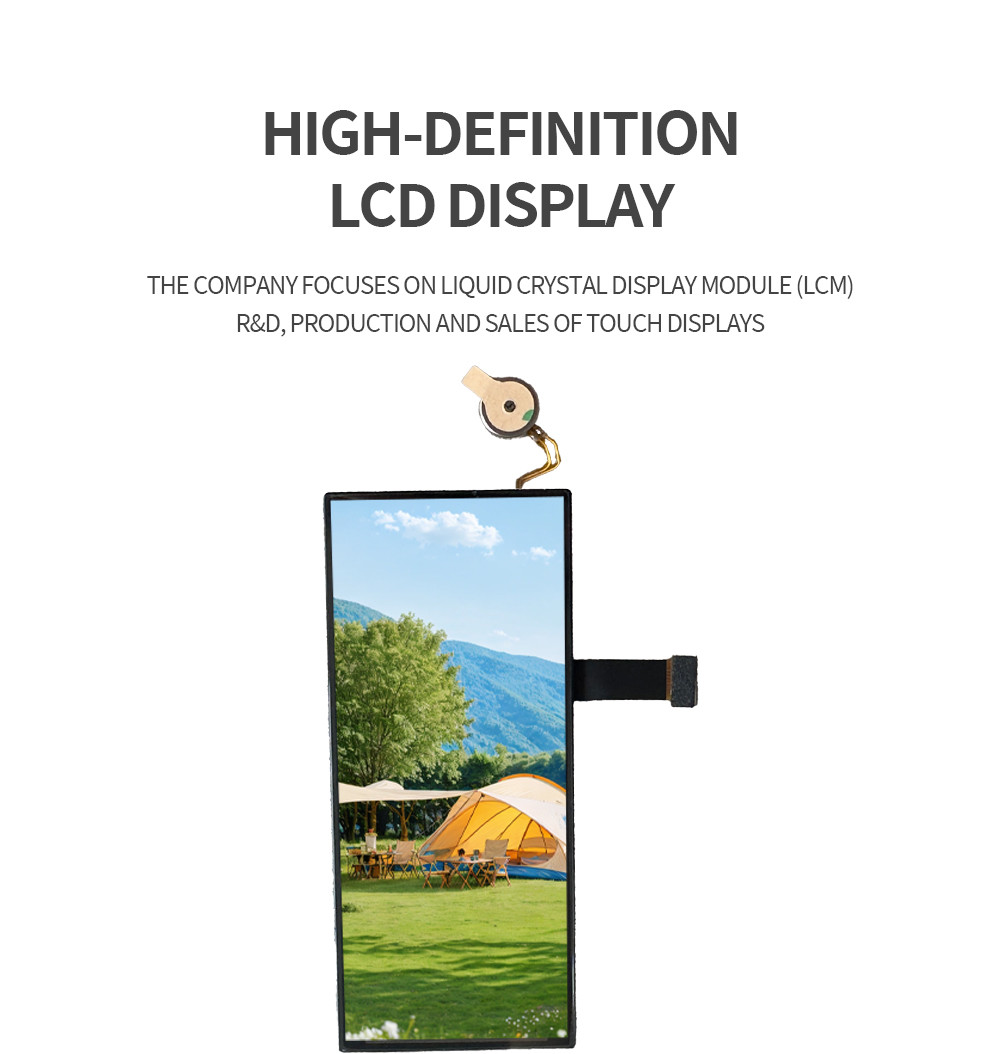

| Categories | TFT LCD Capactive Touchscreen |
|---|---|
| Brand Name: | RGH |
| Model Number: | RTP34WV001A |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhern,China |
| MOQ: | 3PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 3.5kk |
| Delivery Time: | 3-5weeks |
| Packaging Details: | Standard Exportation Package |
| Screen Size: | 3.4inches |
| Resolution: | 412*960 |
| Response Time: | 30 ms |
| Contrast Ratio: | 1000:1 |

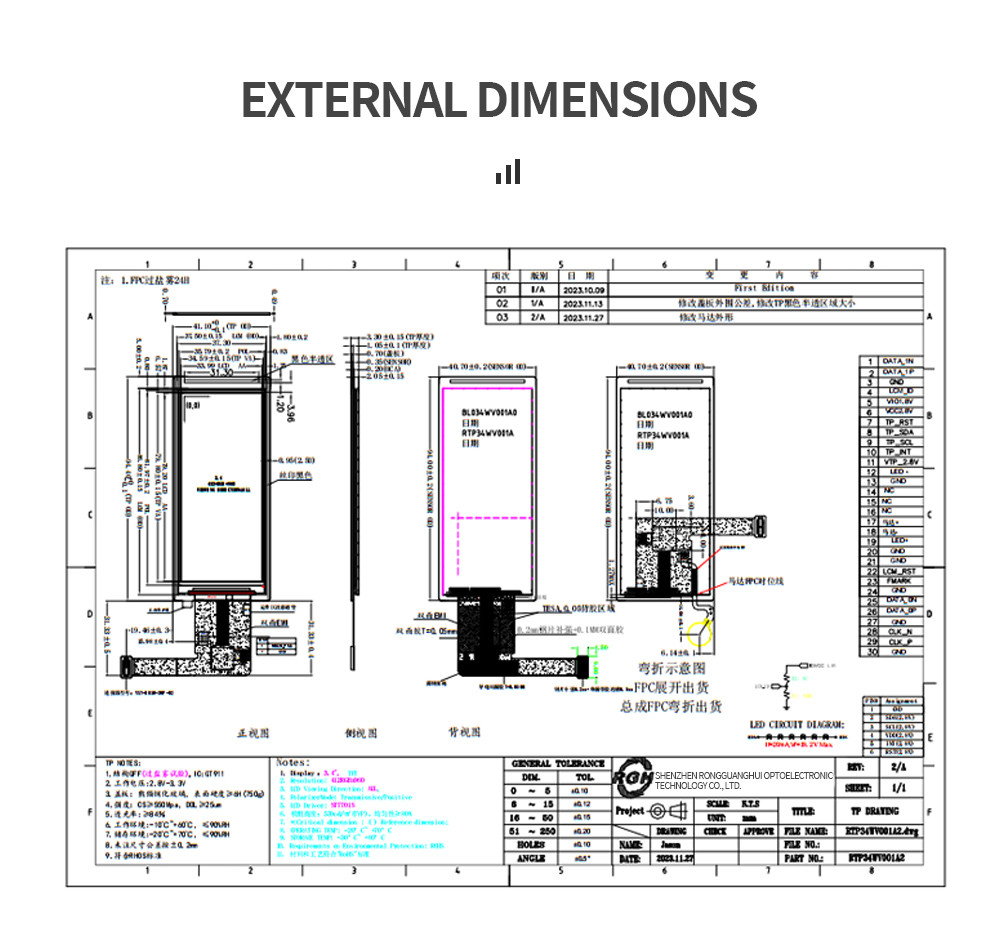

| LCM Outline Dimension: | 41.10(H)X94.40(V) X3.3(T) mm |
| Interface: | MIPI 2L |
| Brightness: | 480 cd/m² |
| Backlight Type: | LED |
| Display Type: | Transmissive TFT |
| Viewing Angle: | ALL O'COLCK |
| Operating temperature: | -20℃~70℃ |
| Storage temperature: | -30℃~80℃ |
| Driving IC: | ST7701S |
| CTP IC: | GT911 |
| weight: | TBD |
| Active area: | 33.99(H) X79.20 (V) mm |
| Number of Dots: | 412 X（RGB） X 960 |
| Backlight: | 6LEDS |
| V | Symbol | Level | Function |
| 1 | D1N | MIPI Data pin Positive | |
| 2 | DIP | MIPI Data pin Positive | |
| 3 | GND | Ground | |
| 4 | LCM_ID/GND | Ground | |
| 5 | IOVCC | 1.8V | Power setting |
| 6 | VOC | 2.8V | Power setting |
| 7 | TP-RST | CTP | |
| 8 | TP-SDA | CTP | |
| 9 | TP-SCL | CTP | |
| 10 | TP-INT | CTP | |
| 11 | TP-VO0 | CTP | |
| 12 | LEDK | LED power cathode | |
| 13 | GND | Ground | |
| 14-16 | NC | NC | |
| 17 | 马达+ | ||
| 18 | 马达- | ||
| 19 | LEDA | LED power anode | |
| 20-21 | GND | Ground | |
| 22 | RESET | -The external reset input | |
| 23 | FMARK | -Tearing effect signal is used to synchronizeMCU to frame memory witing. | |
| 24 | GND | Ground | |
| 25 | D0N | MIPI Data pin Positive | |
| 26 | D0P | MIPI Data pin Positive | |
| 27 | GND | Ground | |
| 28 | CLKN | Mipi clock signal | |
| 29 | CLKP | Mipi clock signal | |
| 30 | GND | Ground |
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and
3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
|
