700MHz-2700MHz UAV FPV Drone Jammer Module Super High Power 300W Wide 91mm With Circulator

Categories Jammer Module
Brand Name: TeXin OEM
Model Number: TX-300W
Certification: CE ISO
Place of Origin: Shenzhen,China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T,
Supply Ability: 100000/month
Delivery Time: Within 3 work days
Packaging Details: Durable case or box
Brand: TEXIN
Application: Signal jammer field
Power: 300W
Frequency: 100-1000MHz 4000-5000MHz(Customized)
Size: 170*87*28mm
Weight: 1390g
Material: Aluminium shell
Power supply wire: Red+Black+Enable wire
Current: 29A
Test voltage: 28V-32V
Connector: N/Female
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

700MHz-2700MHz UAV FPV Drone Jammer Module Super High Power 300W Wide 91mm With Circulator

Super high power 300W wide 91mm with Circulator 700MHz-2700MHz UAV FPV drone jammer module

This is super high power 300W anti drone jammer module ,it adopted advanced components on the market and by the radio frequency method the signal can easy to strength.The internal structure is equipped with a circulator when you assemble a larger countermeasure device,the circulator can form protection of the module . The dorne FPV prevalence nowadays we should take more concered about our privcy such as government protected areas,large entertainment venues,industrial sites,agriculture sites.

parameter:

No.ItemDataUnit
1Frequency700-2700MHz
2Test voltage28V
3Current29A
4Output300W
5Gain53dB
6Output stability1dB
7ConnectorN / male
8Output connector VSWR≤1.30 (No power and VNA test)
9Power supply wireRed+Black+Enable wire
10Enable ControlHigh ON Low Off

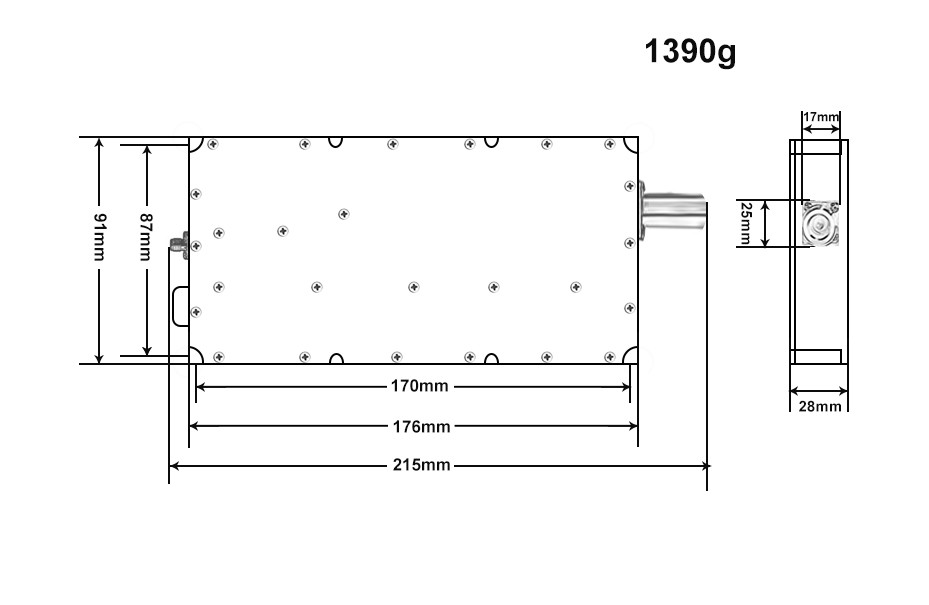

11Out shell Size170*87*28mm
12Mount hole87*176mm
13Weight1390g
14Work Temperature-40~+65
15Out shell materialAluminum
16Vibration needCar load OK

Features :

1.Can be used in multiple locations

2.It support 28V-32V voltage operate

3.Super high power 300W offered

4.Light weight 1390g convenient to carry


Packing

1.Standard carton for product exterior the standard quantities is 20pieces in a box

2.The carton box size is 43.5*39*26.5 cm

3.When there is a gap in the box will use foam fill in

4.Will choose the most suitable deliver way to shipment

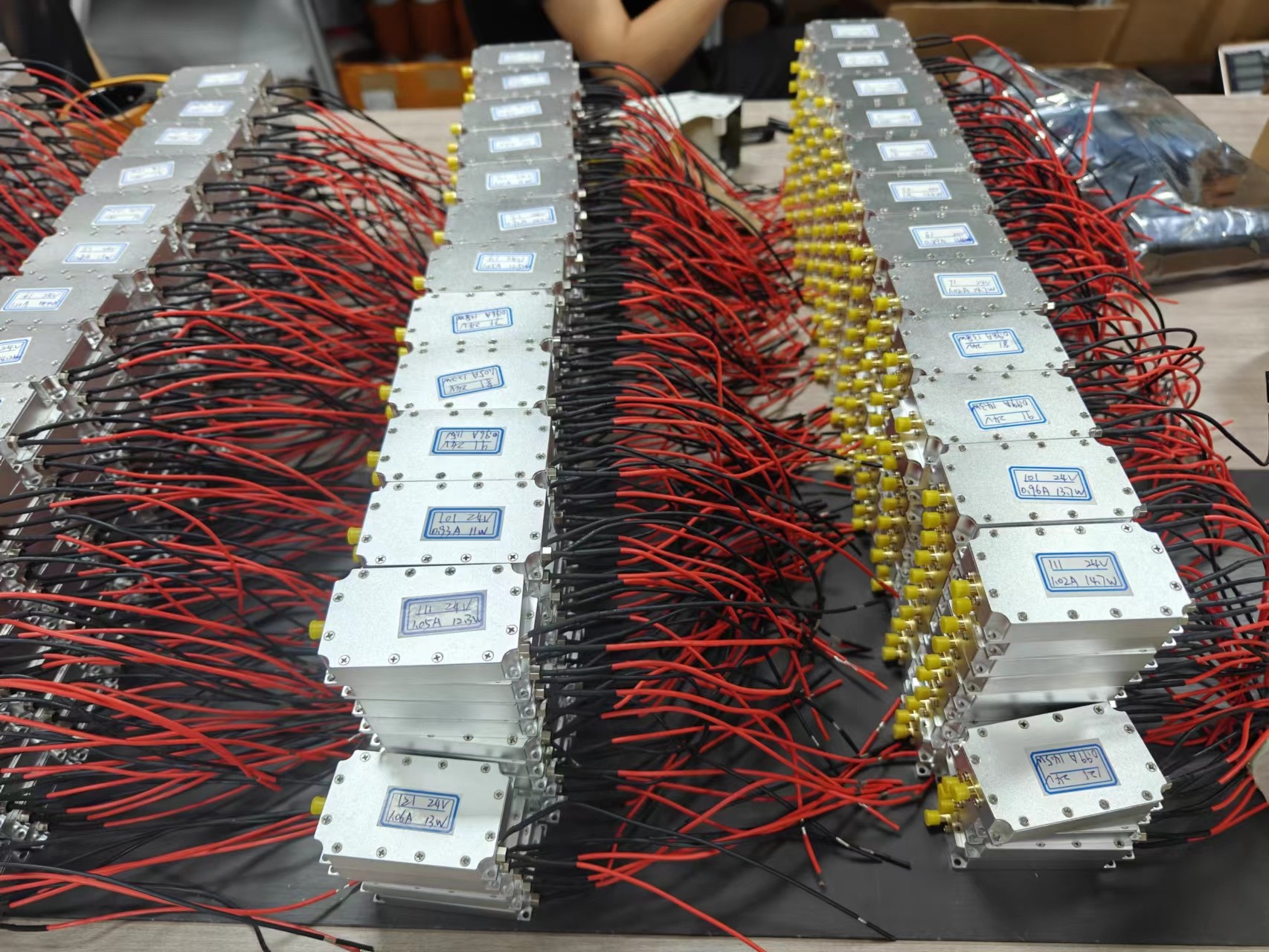

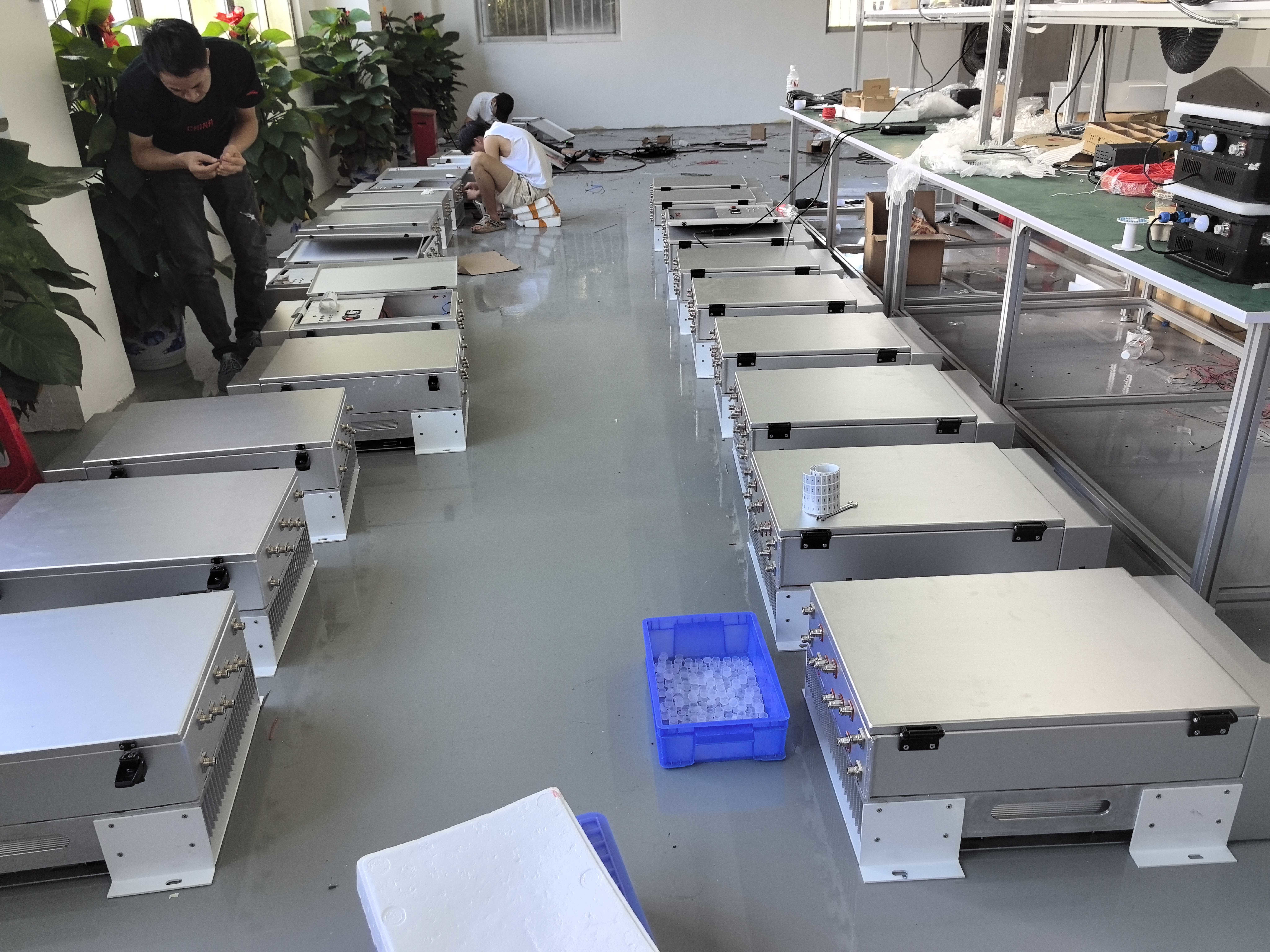

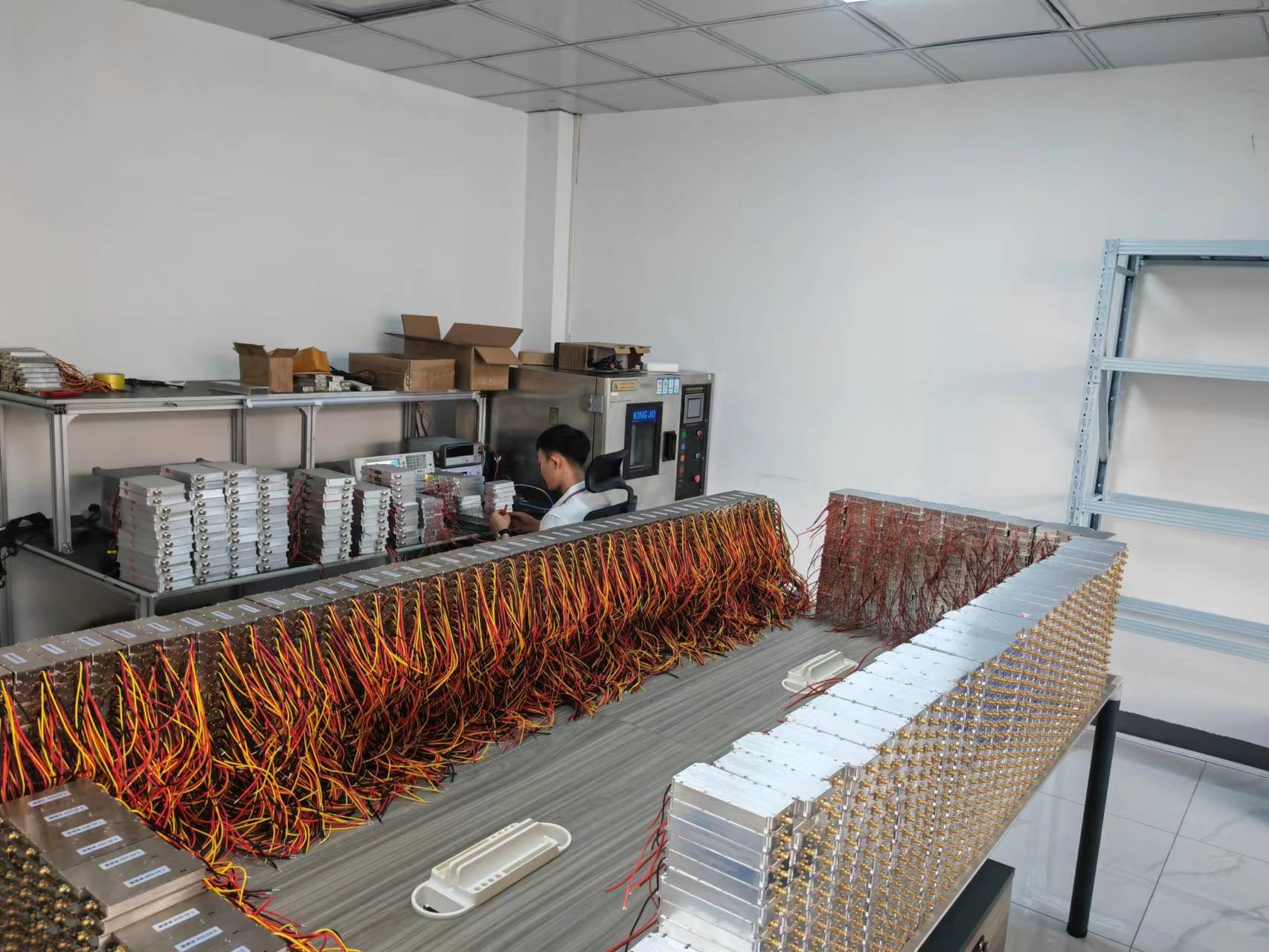

Factory real display
