Plate Flat Welding GR2 DN50 Flange Forged Titanium Piping For Connection

Plate Flat Welding GR2 DN50 Flange Forged Titanium Piping For Connection

Titanium welding neck flanges offer excellent strength and hardness, making them versatile for various applications. They are suitable for marine environments, the chemical industry, and numerous other uses. These flanges deliver high performance and come with secure packaging for safety. They are easy to install and adaptable for diverse applications, including chemical and mechanical systems. Additionally, titanium flanges are available in various standards and materials to meet specific requirements.

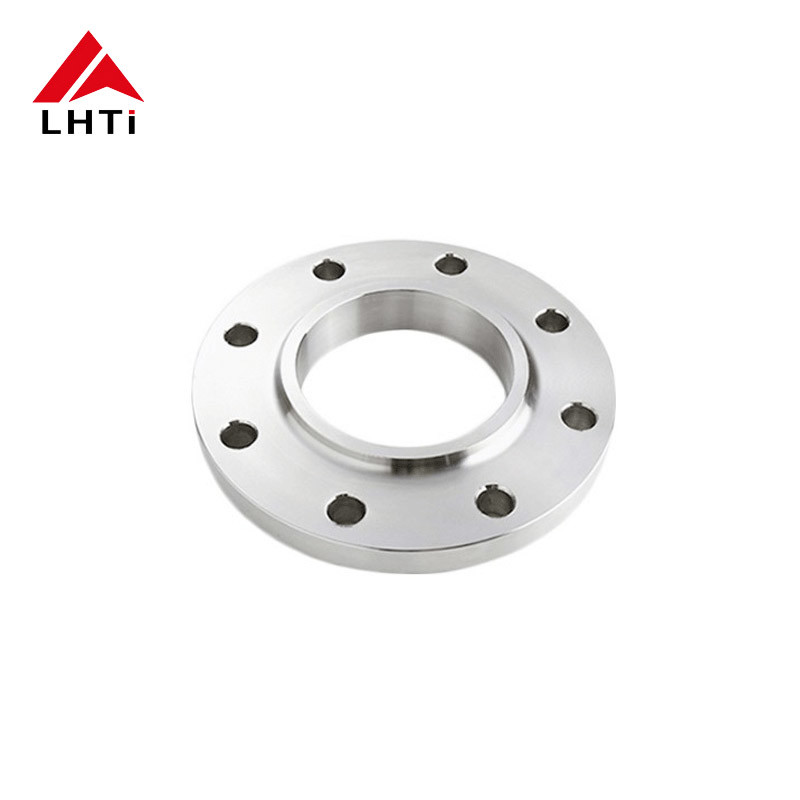

The Plate Flat Welding GR2 DN50 Flange is a premium-grade titanium component designed for robust piping connections. Constructed from high-quality GR2 titanium, this flange is forged to offer exceptional strength, durability, and resistance to corrosion and high temperatures.

Key features include:

Material: Made from GR2 titanium, known for its excellent mechanical properties and corrosion resistance, ideal for harsh environments.
Size: DN50, or 50 mm nominal diameter, suitable for medium-sized piping systems.
Design: Features a plate flat welding design, allowing for seamless integration with other components and ensuring a strong, leak-proof connection.
Forged Construction: The forging process enhances the mechanical strength and overall integrity of the flange, making it suitable for high-stress applications.
Applications: Perfect for use in industries such as aerospace, chemical processing, and marine, where reliability and performance are critical.
This Plate Flat Welding GR2 DN50 Titanium Flange combines advanced material technology with precise engineering to deliver a high-performance solution for demanding piping systems.

ASTM B265	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Rp 0.2	Rm
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 2	0.3	0.25	0.03	0.1	0.015	/	/	/	/	/	20	275-450	345-480
Grade 5	0.4	0.2	0.05	0.1	0.015	/	5.5-6.7	/		/	10	800-1100	890-1400
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25	/	/	/	/	20	275-450**	345
Grade 12	0.3	0.25	0.03	0.1	0.015	/	/	/	0.3	0.8	25	414-460	499-600

Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.

The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.

    The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.

    The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
