Precise Flow Rate Stability Ion Chromatography Instrument 220V 48 Positions

Categories Ion Chromatography Instrument
Brand Name: Wayeal
Model Number: IC6300
Place of Origin: Anhui, China
Certification: CE
MOQ: 1 Unit
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 35 days
Payment Terms: T/T
Supply Ability: 30 Units/Month
Product Name: Ion Chromatography Instrument
Working Temperature: 10~40°C
Quantitative Repeatability: ≤0.004μS·cm-1/30min
Power Supply: 220V, 50~60Hz
Eluent Concentration Range: KOH、MSA-0.1~100.0mM
Flow Rate Stability: <0.2%
Injection Positions: 48 Positions
Column Capacity: 2pcs, 250mm And 150mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

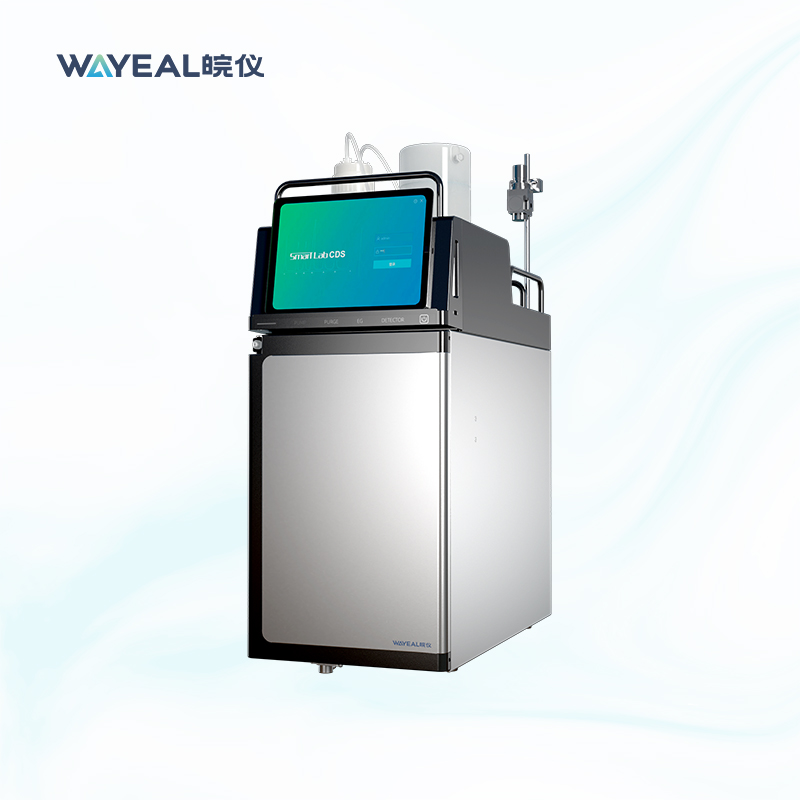

Precise Flow Rate Stability Ion Chromatography Instrument 220V 48 Positions

Description of Ion Chromatography Instrument:
As an efficient, sensitive, rapid and accurate analytical instrument, ion chromatograph plays an important role in modern analytical technology. First of all, ion chromatograph can separate and detect various ions. Secondly, ion chromatograph has fast analyzing speed, which usually takes only a few minutes to several minutes to complete the analysis of a sample. Finally, ion chromatograph has high sensitivity and selectivity, and can analyze a variety of ions at the same time, which provides a strong support for the analysis of complex samples.


Technical Parameters of Ion Chromatography Instrument:

Precise Flow Rate Stability Ion Chromatography Instrument 220V 48 Positions

Product NameIon Chromatography Instrument
Working Conditions
Working Power220V, 50Hz
System Parameters
Qualitative Repeatability≤1%
Quantitative Repeatability≤1%
Pump System
Flow Rate0.001~15.000mL/min
Pressure Range0~42MPa
Flow Rate Setting Error<0.2%
Flow Rate Stability<0.2%
Eluent
Flow Rate Range0.001~3.000ml/min
Eluent Concentration RangeKOH/MSA 0.1~100.0mM
Accuracy of Concentration0.1mM
Max Working Pressure21Mpa (3000psi)
Autosampler (AS2800 series)
Quantitative RepeatabilityFull loop injection <0.5%RSD
Linearity>0.9995
Injection Positions48 Positions
Working Temperature10~40°C
Sample Bottle5mL/100mL
Injection Volume10μL~400μL
Autosampler (AS3110 Series)
Injection Positions120/64/92 positions for optional
Cooling Temperature4~30°C
InjectorStandard 500μL, options 250μL, 100μL, 2500μL
Column Oven
Temperature RangeRoom temperature, +5℃~70℃
Temperature Control Stability≤0.1°C
Temperature Setting Error0.05°C
Column Capacity250mm and 150mm
Suppressor
Dead Volume50μL
Suppression Capacity170ueq/min
Pressure Resistance3Mpa
Conductivity Detector
Baseline Noise≤0.0005μS/cm
Baseline Drift≤0.0005μS·cm-1/30min
Min Detection Concentration(Cl)≤0.0005μg/mL
Min Detection Concentration (Li)≤0.0002μg/mL
Cell Volume≤0.4μL
Detector Resolution0.00238nS/cm
Temperature Setting Error±0.01°C
Ampere Detector
Drive Voltage Range-2.048V---2.048V
Drive Voltage Resolution0.001V
Single Input RangeIntegral mode, 50pc---200uC
DC mode1pA---74uA
Cell Volume<0.2μL
Min Detection ConcentrationI: 0.001μg/mL

Application Industries of Ion Chromatography Instrument:

  • Pharmaceutical Quality Control: Ion chromatography instrument can be used for the analysis of organic acids, inorganic salts and other components in drugs, as well as for stability and purity testing of pharmaceutical preparations.
  • Petrochemical Analysis: The ion chromatography instrument is commonly used in petrochemical analysis to determine the concentration of ions in crude oil, refined products, and additives. It can detect and quantify various anions and cations, such as chloride, sulfate, nitrate, and phosphate. It can also be used to monitor corrosion and scaling in pipelines and storage tanks.
  • Research and Development: The Ion Chromatography Instrument is a valuable tool for scientific research in chemistry, biology, and environmental science. It can be used to investigate the behavior of ions in solution, study the kinetics of chemical reactions, and develop new analytical methods. Its high sensitivity and accuracy make it a useful instrument for exploring complex chemical systems.
