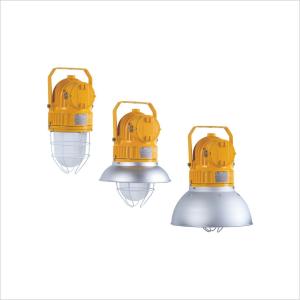

BDD91 Series Industrial Explosion Proof Pendant Lighting With 3800-56500lm Luminous

Categories Pendant Light Fittings
Brand Name: Warom
Model Number: BDD91
Certification: IECEx; ATEX; CU-TR
Place of Origin: China
Payment Terms: T/T
Packaging Details: carton packing/wooden box package
Explosion Protection Standard: CENELEC,IEC,NEC
Can be used in: Zone 1,2,21,22 Class I Division 1 Groups A, B, C, D
Applicable lamp(max.400W): -Metal halide lamp (HIE) -High pressure sodium lamp(HSE) -High pressure mercury lamp(HME)
Three enclosure types: 150,250,400.
Voltage: 220~240V AC 50/60Hz
Wattage: 70~400W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

BDD91 Series Industrial Explosion Proof Pendant Lighting With 3800-56500lm Luminous

Product Introduction




Specification
Global (IECEx)IECEx CQM 12.0016X
Gas and dust

Ex d IIC T□1)Gb

Ex t IIIC T□1)Db IP66

Europe (ATEX)DNV 11 ATEX 05977X
Gas and dustII 2 G Ex d IIC T□1)Gb

II 2 D Ex tb IIIC T□1)Db IP66
CertificatesIECEx; ATEX;CU-TR
Conformity to standards

EN60079-0,EN60079-1,EN60079-31

IEC60079-0,IEC60079-1,IEC60079-31

Degree of protectionIP66
Ambient temperature-60℃~+55℃


Data
Material

Copper-free Aluminium Alloy,powder coated surface,yellow (RAL1021),

Toughened glass,stands 4J impact

Weight11.2~16.7kg
Dimensionsdifferent power has different dimension
Lamp specificationHIE HSE HME
Lamp power (W)70~400W
Rated voltage220~240V AC 50/60Hz
Rated luminous flux3800~56500lm
Terminal3 x 1.5~4m (L+N+PE)
Cable entries2 x M25x1.5 for bracket type, 1 x M25x1.5 for pole type.
Cable gland(optional)DQM-II(Ex d)or DQM-III(Ex d) is recommended.


Download

BDD91 Series Explosion-proof Light Fittings

(Download here:icon_pdf.gifBDD91 Series Explosion-proof Light Fittings.pdf)


Global (IECEx): IECEx CQM 12.0016X

(Download here:icon_pdf.gifIECEx CQM 12.0016X.pdf )


Contact us for more information:

Address : No. 555, Baoqian Road, Jiading District, Shanghai, China

Zip Code: 201808

Tel: +86 21 39977076 /+86 21 39972657

Fax: +86 21 39977077

E-mail: gmb@warom.com
