| Categories | Addressable Fire Alarm System |
|---|---|
| Brand Name: | XHA |
| Model Number: | CA9010 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000PCS/Month |
| Delivery Time: | 3 Working days |
| Packaging Details: | 100pcs/carton |
| Types of Smoke Detectors: | Protection Isolator Module |
| Work voltage: | DC17V～DC33V |
| Protection current: | 200mA |
| Installation: | Wall mounted |
| Warranty: | 1 year |
| Type: | Networkable |
| Wire Type: | Non-Polarity 2-Wired |
| Connected: | loop bus |
| Customization: | Available | Customized Request |
| Company Info. |
| Shenzhen Xinhe'an Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Introduction

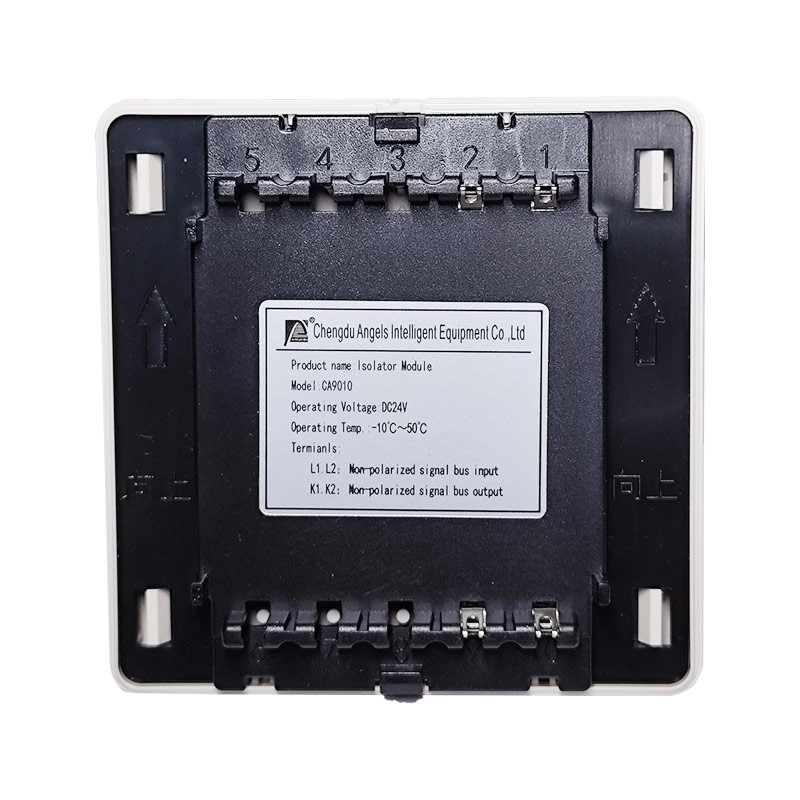

CA9010 Loop Isolator module is the protection facility for addressable loop, can isolate the shorted circuit from the complete loop to ensure normal operation of other parts and locate the isolated part.isolator module does not occupy the address of the loop bus.
| Product name | Isolator Module | Protection Current | ≤200mA |
| Loop Bus wired | 2-wire Non-polarized | Dimension | Φ85*85*40 mm |
| Work voltage | DC17V～DC33V | Operating Environment | Temperature -10°C~+50°C Humidity ≤95%. |

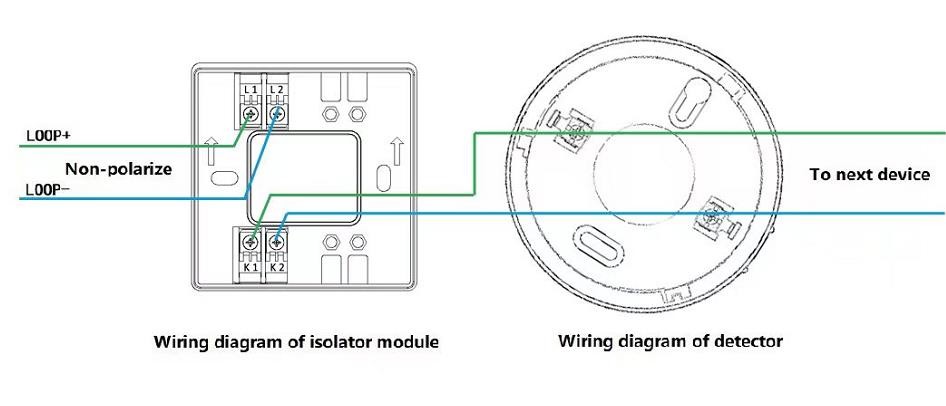

Connection between Isolator Module and Detector
Connection Diagram of Fire Alarm System
Product range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
|
