| Categories | Industrial PoE Switch |
|---|---|
| Brand Name: | E-link |
| Model Number: | LNK-IMC005GPM |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | $29.9-389 |
| Payment Terms: | T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 10000pcs/Month |
| Delivery Time: | 3-5 working days |
| Packaging Details: | Industrial PoE Switch Standard Package |
| POE: | IEEE 802.3at Power over Ethernet |
| Power Input: | 12~48V DC (Terminal Block) |
| Power Consumption: | PoE In Use: <125W |
| PoE Budget 1: | 60-watt PoE budget (12VDC) |
| PoE Budget 2: | 90-watt PoE budget (24VDC) |
| PoE Budget 3: | 120-watt PoE budget (48VDC) |
| Company Info. |
| E-link China Technology Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

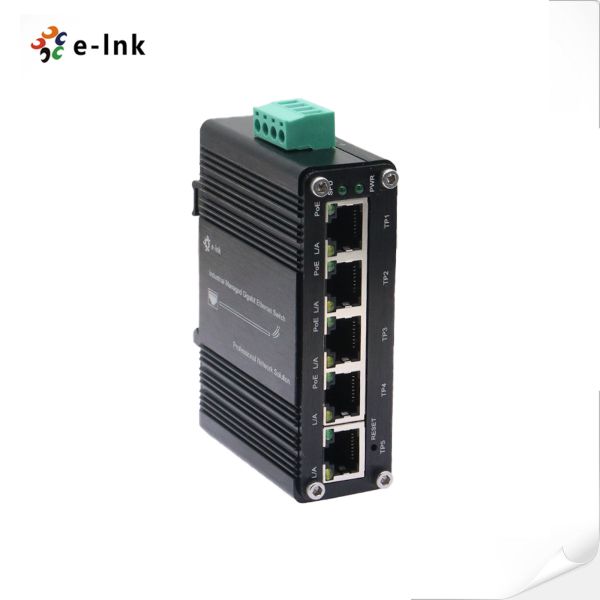

Mini Gigabit Industrial Web Managed POE Switch 4 x Gigabit POE Ports 12-48V
Industrial POE Switch Advantages
Specifications
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 20Gbps; Packet forwarding rate:14.88Mpps |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ (Ports 1 to 4) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Reset Button | Support |
| Dimensions (WxDxH): | 95 x 70 x 29 mm |
| Weight: | 0.25KG |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators | |
| PWR | Power |
| SPD | Data rate |
| L/A | Link/Activity |
| PoE | PoE Status |
| WEB Management Features | |
| System Settings | Device Info; Account Settings; Restoring; Reboot; Upgrade |
| Port Management | Port Settings; Port Mirroring; Port Statistics; Rate Limit |
| VLAN Settings | 802.1Q VLAN; PVID Settings; Hybrid Port |
| QOS Settings | Priority Selection; Scheduling Mode |
| Loop Detection | Support |
| Saving Settings | Get Configuration; Restore Configuration; Saving Configuration |
| Default IP | 192.168.40.253 |
| Default User Name | admin |
| Default Password | admin |
Overview
LNK-IMC005GPM Series is a Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port
10/100/1000T Ethernet Switch with 12~48V DC wide range power input.
Order Information
| Model | Description |
| LNK-IMC005GPM | Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48 |
|
