| Categories | Submersible Level Sensor |
|---|---|
| Brand Name: | YUNYI |
| Model Number: | YD322 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | $43-$68/PC |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 200PCS/week |
| Delivery Time: | 7 days |
| Packaging Details: | Carton box |
| Item: | Input type fuel tank liquid level sensor |
| Probe material: | stainless steel |
| Cable material: | PE, PU,PTFE |
| Measurement range: | 0-200m |
| Medium: | liquid |
| Output signal: | 4-20mA, 0-10V,0-5V |
| Input power: | 12-36vdc |
| Warranty: | 1 year |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

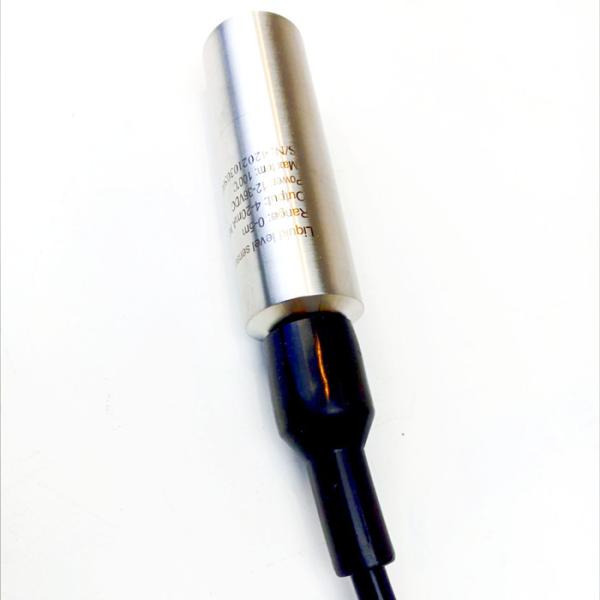

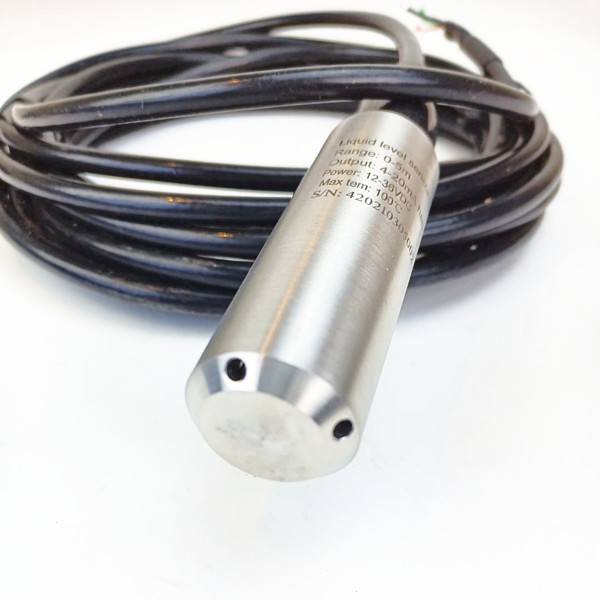

Input Type Fuel Oil Water Tank Submersible Level Sensor
The Input Type Fuel Oil Water Tank Submersible Level Sensor from the YD322 series utilizes a high-performance diffused silicon piezoresistive pressure sensor as its measuring element. This series of pressure transmitters is characterized by high reliability, stability, accuracy, and compact size. It features a modular structure and is commonly employed for measuring liquid pressure and height in small-diameter pumps, as well as determining the level height of liquid reservoirs containing substances like water, oil, and mildly corrosive liquids.
Feature Input Type Fuel Oil Water Tank Submersible Level Sensor
● Wide range application
● Long service life
● Diffused silicon oil-filed sensor cell
● CE certificate
● Reinforcement cables optional
● Intrinsically sate ,explosion proof
Applications Input Type Fuel Oil Water Tank Submersible Level Sensor
● Hydraulic monitoring
● Frequency water supply
● Liquid measuring for petroleum ,metallurgy
● City water supply
● Sewage treatment
● Tank level monitoringT
● Water-saving irrigation
● Circulation fluid monitoring
Specification Input Type Fuel Oil Water Tank Submersible Level Sensor
| pressure medium | liquid compatible stainless steel |
| pressure ranges | 0~0.5m~1 m H2O...300 m H2O |
| overload pressure | 150%FS |
| output signal | 4~20mA, 0.4 ~4.5V, 0~5V |
| accuracy | 0.1%FS,0.25%FS,0.5%FS (standard) |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
| long term stability | 0.2%FS/year |
| supply voltage | 10~36VDC |
| compensated temperature range | -10~70°c |
| operating temperature range | -20~85°c |
| storage temperature range | -40~125°c |
| temperature coefficient of zero | ±0.015%FS/°c@25°c |
| temperature coefficient of span | ±0.02%FS/°c@25°c |
| insulation resistance | 100MΩ@ 500VDC |
| Pressure connection | screw thread, throw-in type |
| Protection grade | IP68 |
| material of wetted part and housing | 304SS or 316L |
| material of pressure membrane | 316L |
| Response time | 1ms |
|
