TM601 Plus Clamp-on Ultrasonic Flowmeter

Clamp-on compact type ultrasonic flow meters.

Product Description

TM601 Plus is a flow meter specially designed for ultrasonic cleaning machines

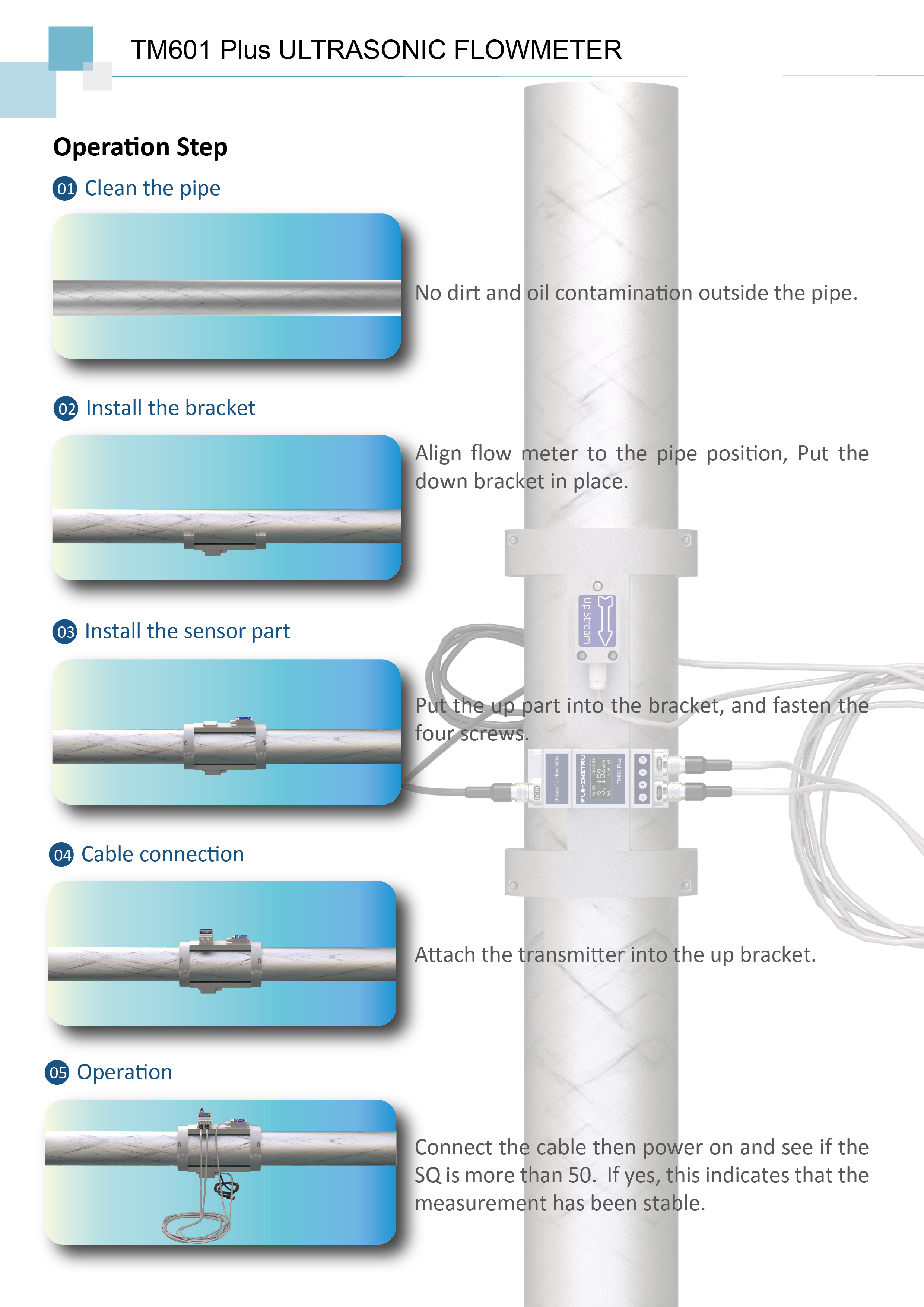

1. Only takes 1min to complete the installation and start the measurement

2. No additional changes to the pipeline, and installation and measurement can be completed according to the operating instructions.

3. It can be installed and used without stopping production, without any pipeline modification, and without pressure loss

4. OLED display (128x 64px), even in the dark environment has the best display

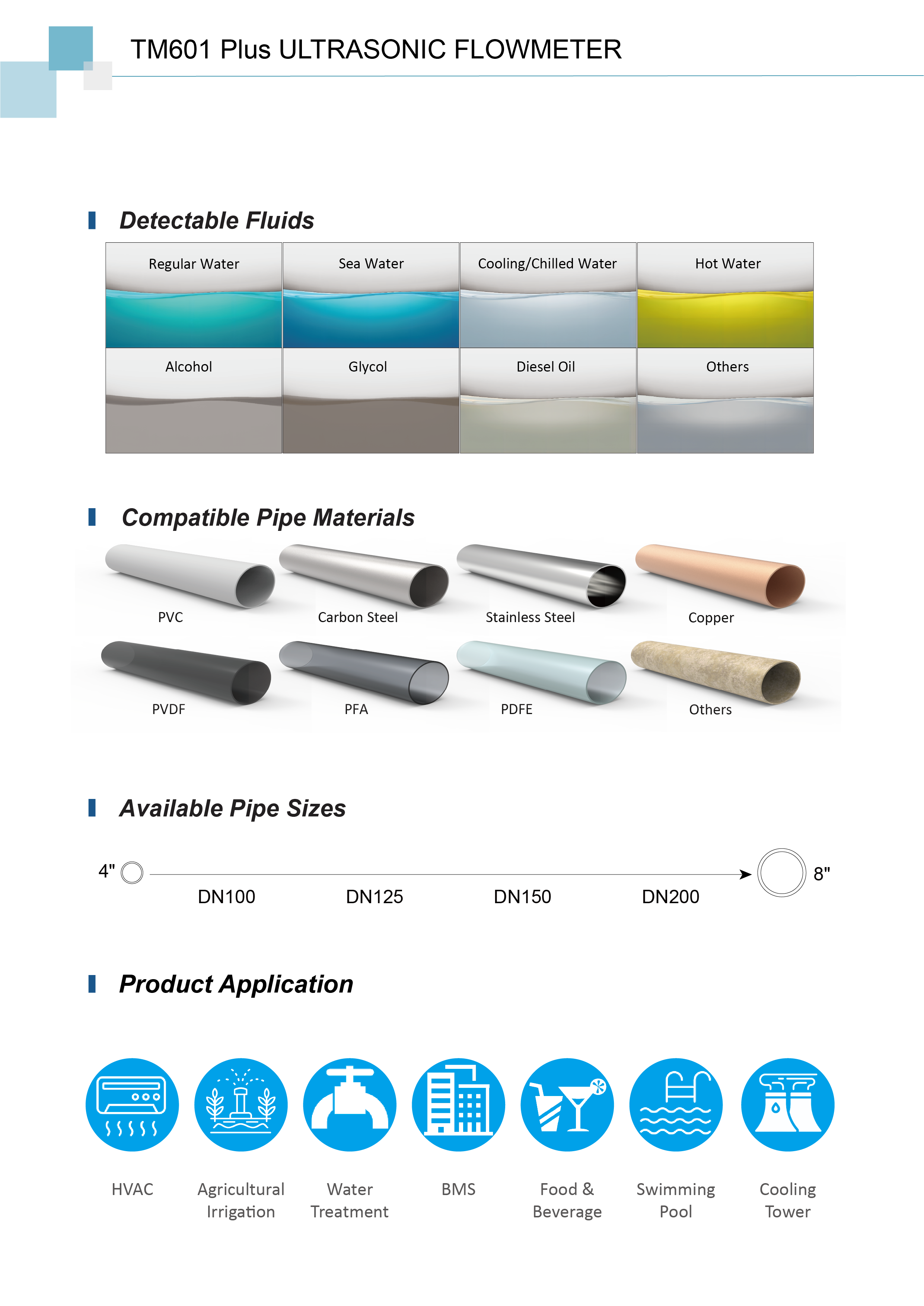

5. Suitable for a variety of pipelines: stainless steel pipes, carbon steel pipes, copper pipes, PVC, PVDF, PPR, PPH, HDPE, etc.

Benefit & Feature

• No Pipe Modification Necessary

The difficulties commonly associated with installing a new ultrasonic flow meter are eliminated by simple CLAMP-ON. This design eliminates the need to cut pipe, shut down pipe running, stop production, offer additional costs, and much more.

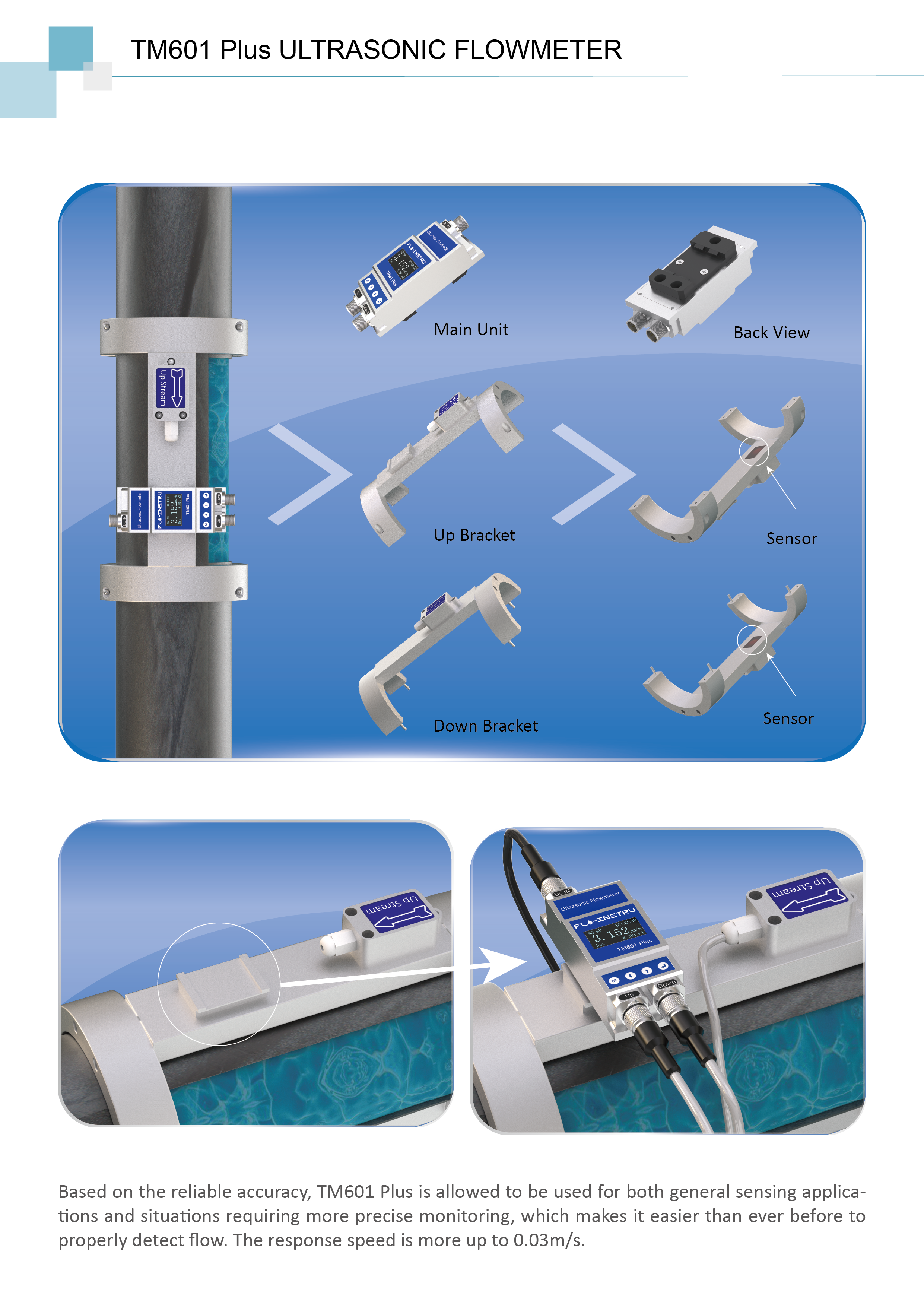

• Snap-On Type Installation

The main unit(display screen) has a very special and easy installation. its back has snap-on design. It can be easily installed by just clamping it on pipe clamp that can accommodate the buckle on its back.

• Big Pipe Size,Big Pipe Clamp

In order to fit bigger pipe diameter, TM601 Plus also matches the pipe clamp that can meet this type of size. The sensor is located in top bracket and bottom bracket respectively, which can fully measure the flow velocity and liquids. Unique design is more suitable for complex application environment.

Specifications

The Pipe Size Range and Flow Range Reference Table
