| Categories | Prefab Folding House |
|---|---|
| Brand Name: | 3xnest |
| Model Number: | Small 20-Foot Double Wing Expandable Container House |
| Certification: | CE |
| Place of Origin: | Hebei |
| MOQ: | Six |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 600 SETS FOR ONE MONTH |
| Delivery Time: | 25 Working Days |
| Packaging Details: | 40 Feet High Cabinet |
| Advantage: | Environmental Protection Low Cost Recycle |
| Window: | PVC Window |
| Warranty: | 12 Months |
| Color: | Customized Color |
| Structure: | Q235B Light Steel Frame |
| Port: | Tianjin Port |
| Company Info. |
| Hebei 3X nest Container House Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Double wing container house, also known as double wing folding house, is a kind of container house with high technical content. It uses light steel materials such as galvanized high-strength square pipe and galvanized Angle iron to make the frame, anti-corrosion double-sided color steel composite plate as the wall, and uses high-strength hinges between the frames to connect, which can quickly expand the housing space.
Galvanized Steel Frame Container Houses Modern Movable Living Foldable(Small 20-foot double wing extension):
Characteristics and advantages
Space expansion: After the expansion of the double wing container house, its space is nearly 3 times larger than before the expansion, providing greater residential or commercial use space.
Convenience: Due to the folding design, the volume of the double-wing container
house is greatly reduced after compression, which is convenient for
transportation. Whether by truck or shipping container, it is easy
to transport long distances.
Integration: The internal integration of water and electricity system, toilet,
shower, kitchen and other facilities, can be installed according to
customer needs before the factory, to achieve ready-to-use.
Durability: The use of high-strength materials and scientific structural
design, so that the double wing container house has the advantages
of robustness, earthquake resistance and fire prevention.
Configuration Parameter
Product model | Little 20 feet | House type | One Hall |
Expanded size | L5900*W4800*H2480 | Number of people accommodated | 2-4people |
Internal dimensions | L5460*W4640*H2240 | Power consumption | 12KW |
Folded Size | L5900*M700*H2480 | Total net weight | 1.95 tons |
Floor area | 27.5 square meter | ||

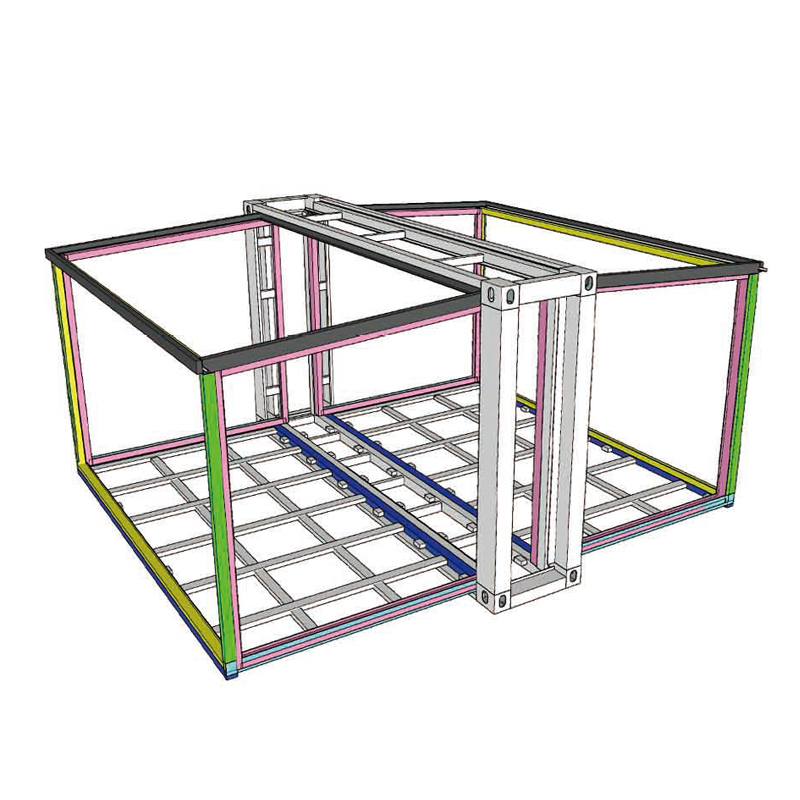

Small 20-Foot Double Wing Expandable Container House Frame Diagram |  |

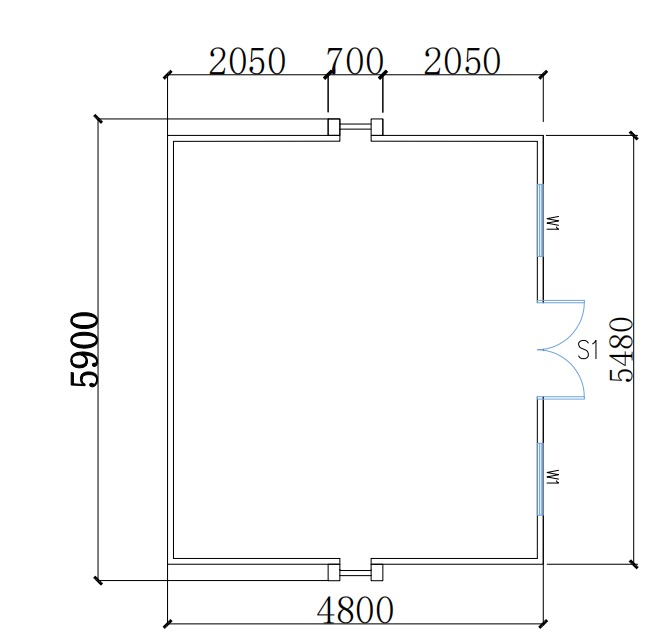

| Small 20-Foot Double Wing Expandable Container House Graphic Design | Layout chart

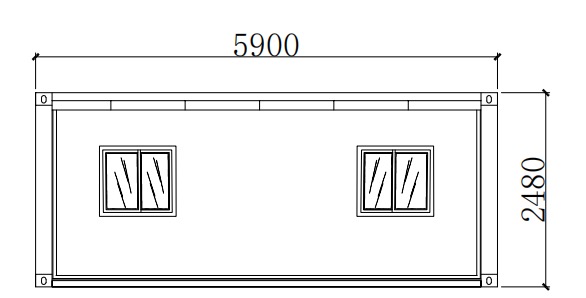

Left elevation view

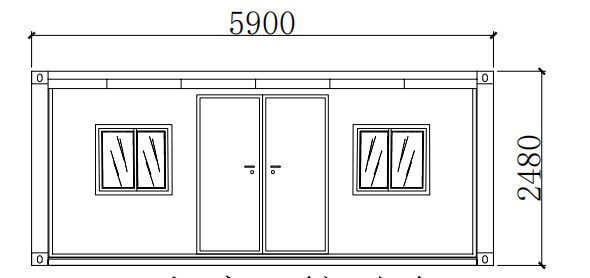

Right elevation view

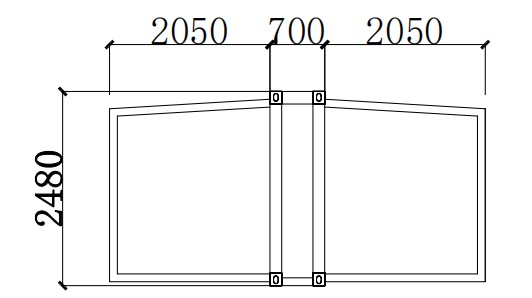

Front and rear elevation views
|

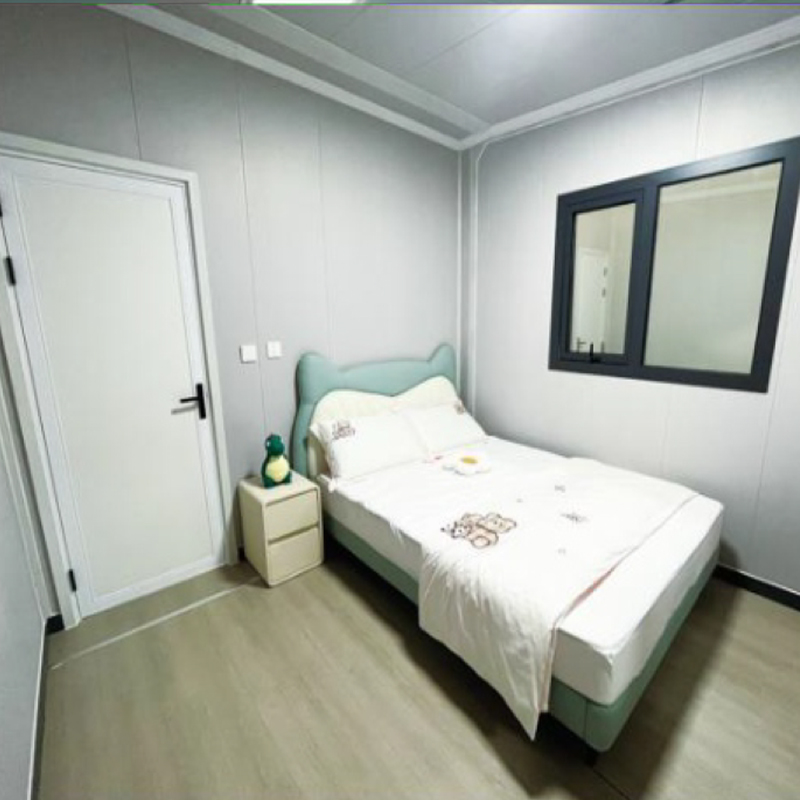

| Small 20-Foot Double Wing Expandable Container House Inside Finish |    |

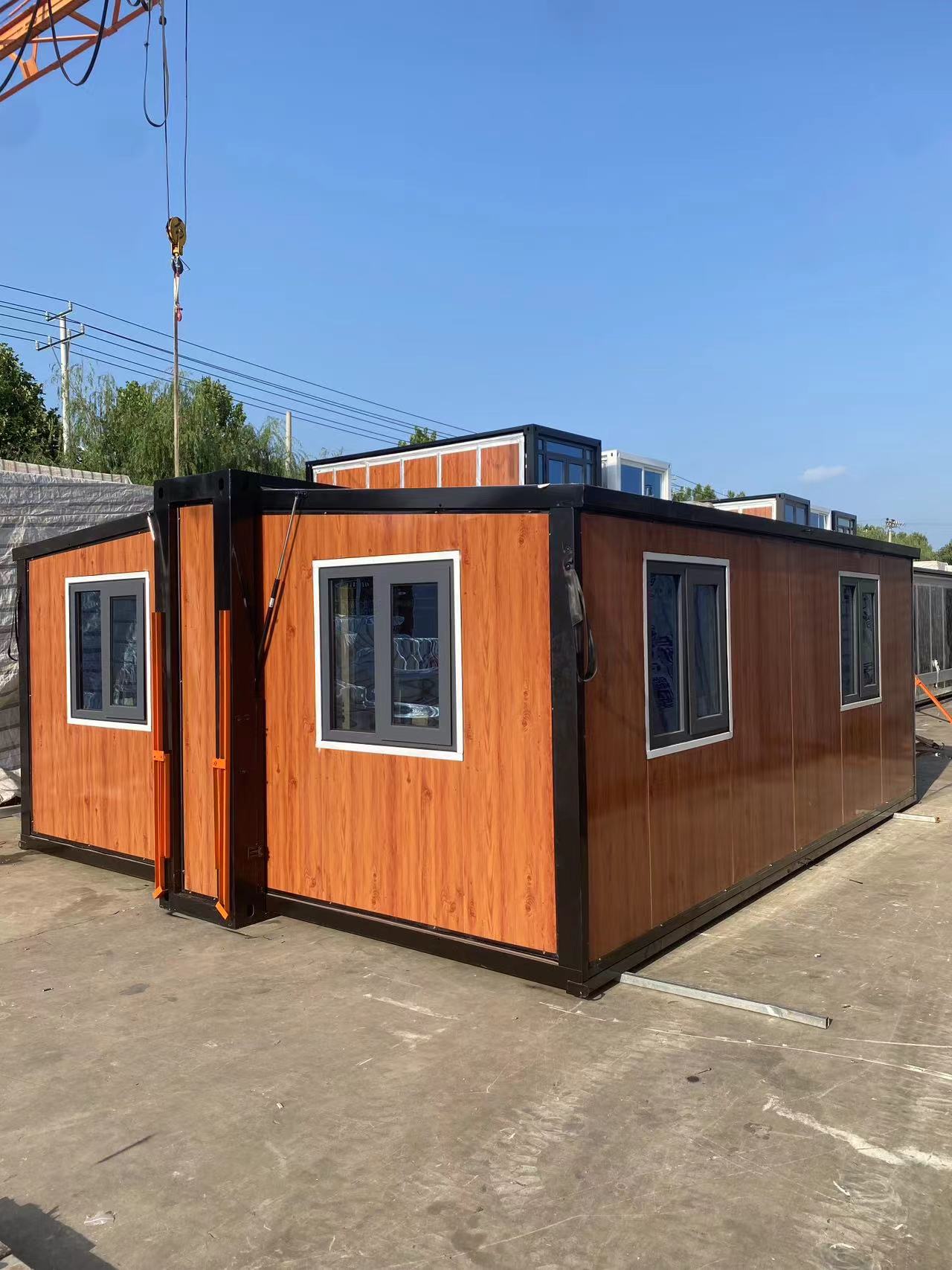

| Small 20-Foot Double Wing Expandable Container House picture of real product 1 |  |

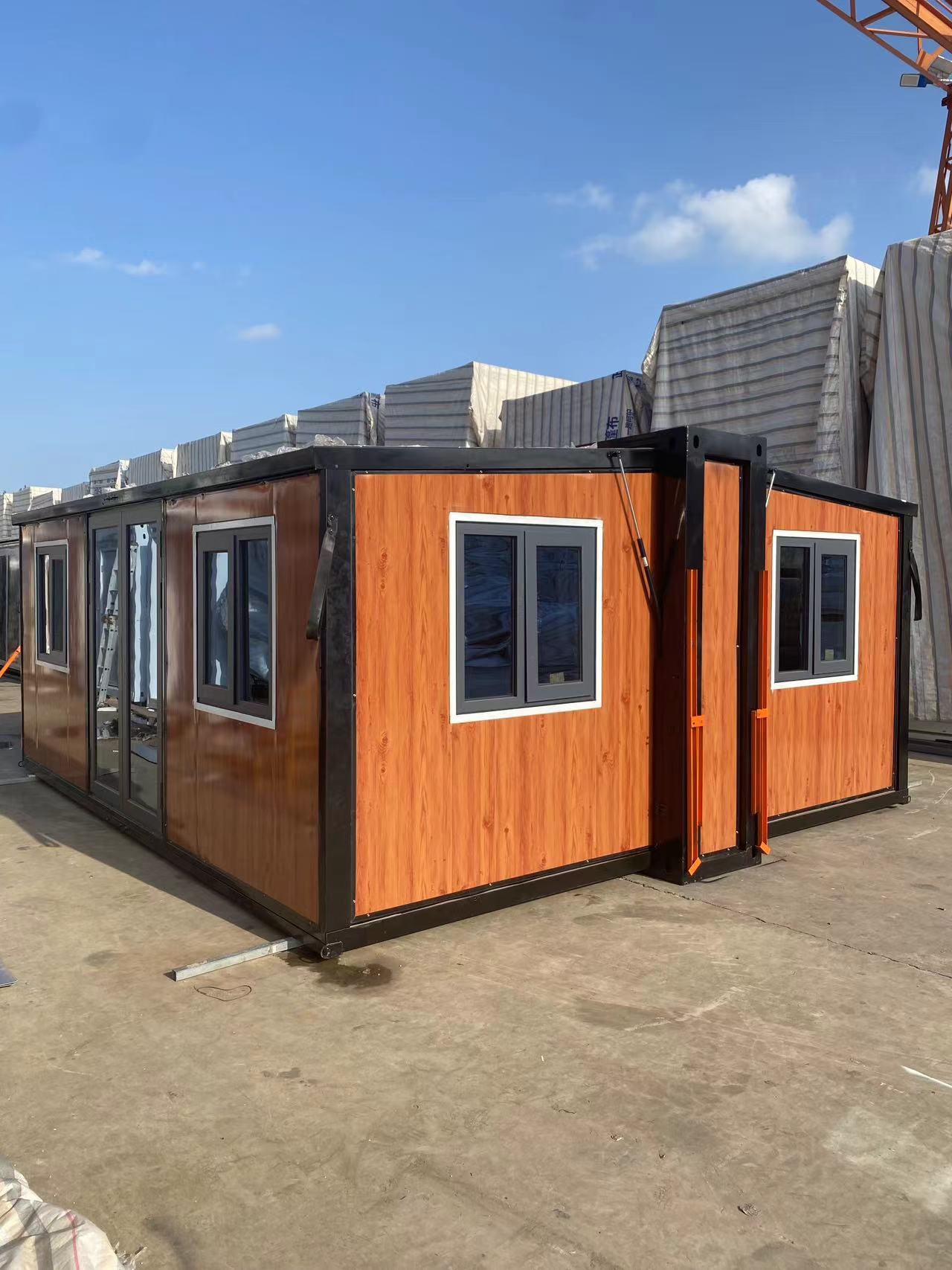

| Small 20-Foot Double Wing Expandable Container House picture of real products 2 |  |
| Small 20-Foot Double Wing Expandable Container House Frame Structure | ||
| Name | Content | Specifications |
| Main farme(fully galvanized) | Top side beam | 80*140*2.5mm square tube |
| Top beam | Bending parts 2.0mm | |
| Bottom side beam | 80*100*2.5mm square tube | |
| Bottom beam | Bending piece 2.0mm | |
| Galvanized hanging head | Gabvanized hanging head 210*150*160 | |
| Steel column | Bending parts 2.0mm | |
| Side frame(fully galvanized) | Top frame | 40*80*1.5mm p-shaped pipe |
| 40*80*1.8mm Square tube | ||
| Bottom frame | 60*80*2.5mm Square tube | |
| Folding hinge | 130mm Galvanized hinge | |
| Overall framework protective coating | Spray | Electrostatic spray molding/straight white plastic powder |
| Roof | Extemal top plate | T50mm EPS color steel plate +corngated veneer t0.4mm |
| internal ceiling panels | 200 type ceiling panel | |
| Wallboard | Side walls, front and rear | T65mm FPS color steel sheet |
| Inner partition board | T50mm EPS color steel sheet | |
| Ground | Center floor | 18mm thick freproof cement fiber floor |
| Floor on both sides | Bamboo plywood 18mm thick | |
| Doors and windows | Plastic steel sliding window | 920*920mm |
| Steel single door | 840*2030mm | |
| Electrical system | Circuit breaker system | One 32A leakage protector, Voltage 220V, 50HZ |
| Light | Bull 30*30 flat lamp, large ceiling lamp | |
| Socket | Standard international three hole and five hole sockets | |
| (sacket standards can be configured according to customer requirements) | ||
| light switch | Double open, single key switch(switch standard can be configured according to customer requirements) | |
| Wiring | Incoming line 62, Air conditioning socket 42, Ordinary socket 2.52,Lighting 1.52. | |
| Circuit that meets certification reguirements can be customized according to the country | ||
| Loading Quantity | 1 40HQ shipping container can hold 6 sets. | |
F&Q:
Q: Can this container house only be used in residential buildings?
A: Of course not. Our container houses can be used not only as residential buildings, but also as sbars, coffee bars, fast food restaurants or whatever you want.
Q: How can l buy this container house?
A: Very simple. You just need to send inguiry or information to contact our salesman, they will guicbuy this container house.
Q: After buying your container house, if l don't know how to install it, can yoltechnical support?
A: Yes. We have prepared a free container house installation tutorial for you, you can follow our tutstep to complete your container house installation. Or depending on the situation at the time, we (online technical support.
Q: How long does it take to complete the installation of the container house?
A: In general, the installation of the container house can be completed within 2 to 5 hours
Q: ls it difficult to assemble the room?
A: Not at all. As long as you can use electric tools, you can build a house independently accordingconstruction drawings.
|
