Name: CAFS1000C Wide Range Of Optional Gas Sensors For Automotive And Related Industries
Brand: Consensic
Price: 1 USD

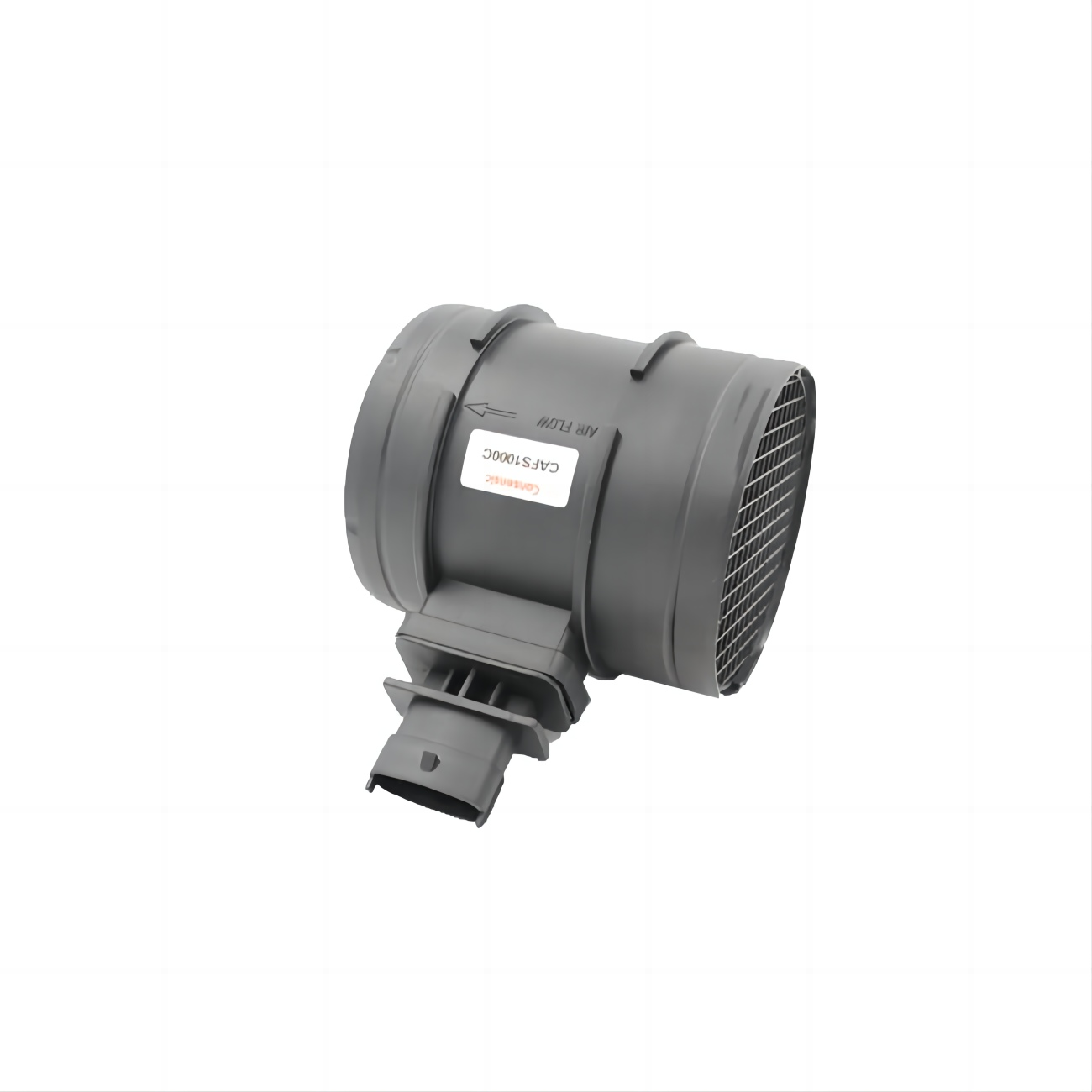

CAFS1000C Wide Range Of Optional Gas Sensors For Automotive and Related Industries

Application and Pin Definition

The CAFS1000C air flow meter stands out in the automotive industry due to its impressive wide flow rate range of 0-60 m/s and exceptional high impact resistance, capable of withstanding 100g impacts. This makes it an ideal choice for modern electronic fuel injection (EFI) systems, where accurate air measurement is crucial for optimal engine performance.

Key Features

High Accuracy: ±2.0% Full Scale (F.S.) accuracy
Linear Output: No need for temperature compensation
Long-term Stability: Minimal zero-drift
Quick Response: 20 ms response time
Wide Flow Rate Range: 0-60 m/s
High Impact Resistance: Withstands 100g impact
Robust Sensing Core: Solid-state, no surface cavity or fragile film, resistant to blockage and pressure impact
Output Modes: Analog voltage output (1 to 5V) and frequency output (2.05 to 11.69 kHz)
High Reliability: Suitable for relatively wet gas measurements
Operating Temperature: -40°C to 125°C
Storage Temperature: -40°C to 125°C
Humidity Range: 0 to 100% RH
Condensate Water Resistant

Performance Specifications

Functional Items	CAFS1000C Wide Flow Rate Range: 0-60 m/s High Impact Resistance: Withstands 100g impact
Flow Range	10-800 Kg/h (customizable)
Service Voltage	14 VDC
Accuracy	±2.0% FS
Repeatability	<0.5%
Response Time	20 ms (selectable)
Maximum Pressure	0.3 MPa

*From:

*To:

Wuxi Consensic Electronic Technology Co., Ltd.

*Subject:

*Message:

Characters Remaining: (0/3000)

Categories	Wide Range Of Optional Gas Sensors
Brand Name:	Consensic
Model Number:	CAFS1000C
Place of Origin:	WUXI
MOQ:	Please contact us for details
Price:	Offline conversation or face-to-face discussion
Payment Terms:	L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments
Supply Ability:	999
Delivery Time:	3-7 work days
precision accuracy:	±2.0%FS
Repeatability:	＜0.5%
Specification:	200/300/500/600/800/1000 SLPM
Interface:	3/4
Flow Range:	10-800 kg/h
Temperature Range Storage:	-40°C to +125°C
