| Categories | PVDF Aluminum Composite Panel |
|---|---|
| Surface treatment: | HDPE Coated |
| machine size: | 2440mm |
| Free Sample: | Yes |
| effect: | Anti-Static,anti-scratch |
| Warranty: | More than 5 years |
| height: | 1.22*2.44m |
| Package: | Wooden Pallet+ Cover Boards Aluminium Composite Panel+ Fumigated |
| Color: | Graphite |
| Brand Name: | Alushang |
| Model Number: | 1220*2440MM 4MM |
| Certification: | sgs ISO |
| Place of Origin: | China |
| MOQ: | 300meter square |
| Price: | negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 30000 Meter square /day |
| Delivery Time: | 15-20days |
| Packaging Details: | wooden package |
| application industry: | Decoration |
| After-sale Service: | Online technical suppor |
| Company Info. |
| Jixiang Siji Industrial Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

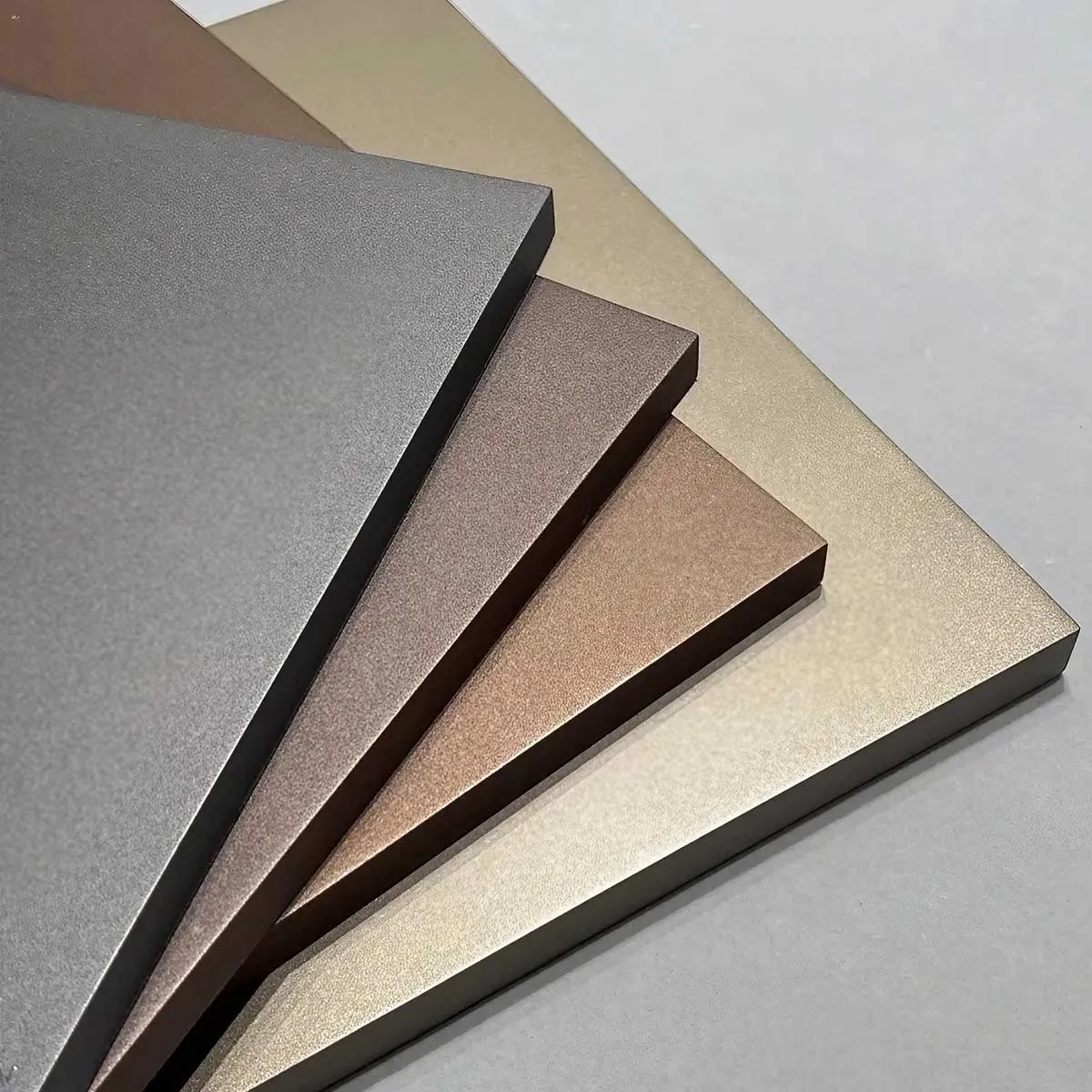

PVDF aluminium composite panel is a type of architectural cladding material made from a combination of two thin and rigid aluminum sheets bonded to a non-aluminum core. The panels are coated with a layer of PVDF (Polyvinylidene Fluoride) paint, which provides exceptional durability. Also it boasts outstanding weather resistance, capable of withstanding solar radiation and various weather conditions as well as environments affected by industrial pollution.


Durability
The PVDF aluminum composite panel is known for its exceptional
durability, which makes the panel resistant to scratches, dents,
and other types of damage. It maintains its appearance for a long
time without fading or corroding, making it ideal for long-lasting
projects.
Weather resistance
PVDF aluminum composite panels have strong resistance to
environmental and climate conditions. Its resistance to rain, wind,
and snow makes it ideal for both indoor and outdoor use. It also
resists UV radiation, which prevents fading and discoloration over
time.
Chemical resistance
PVDF aluminum composite panel is also resistant to a wide range of
chemicals, making it suitable for use in industrial and chemical
environments. This makes the panel ideal for structures that are
susceptible to chemical spills, such as manufacturing plants or
laboratories.
Fireproof and easy to install
PVDF is strong fire-resistant, making it suitable for use in
high-risk structures such as hospitals, schools, and public
buildings. The panels are lightweight and easy to cut, making
installation simple and fast. They can also be easily affixed to
walls or other surfaces using adhesive or mechanical fixing
systems.

| Aluminum Skin Thickness: | 0.03mm-0.50mm |
| Total Panel Thickness: | 2.5mm-6mm |
| Width: | 1000mm, 1220mm (regular), 1250mm, 1300mm, 1500mm, 1550mm, 1575mm (maximum) |
| Length: | Up to 5800mm |
| Standard Size: | 1220mm (width)*2440mm (length) |
| Production Capability: | 100,000sqm / month |
| Inner core: | Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE, B1 non-combustible mineral filled core, A2 non-combustible mineral filled core |
Non-standard sizes and special colors are available depending on customers' offers.



|
