Stratos MAXO-Z Hot Water Heating Wilo Recirculating Pump For Residential

Categories Wilo Recirculating Pump
Brand Name: Wilo
Model Number: Wilo-Stratos MAXO-Z
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Peak Season Lead Time: 1-3 months ,Off Season Lead Time: 1 month
Delivery Time: 5-8 weeks
Packaging Details: Standard Export Plywood Case or Carton
Drinking water up to 3.57 mmol/l (20 °dH): 0 °C to +80 °C.
Heating water: -10 °C to +110 °C.
Mains connection: 1~230 V, 50/60 Hz
Protection class: IPX4D
Max. operating pressure of standard version: 6/10 bar (special version: 16 bar)
Max. volume flow Q: 46 m³/h
Max. delivery head H: 12 m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

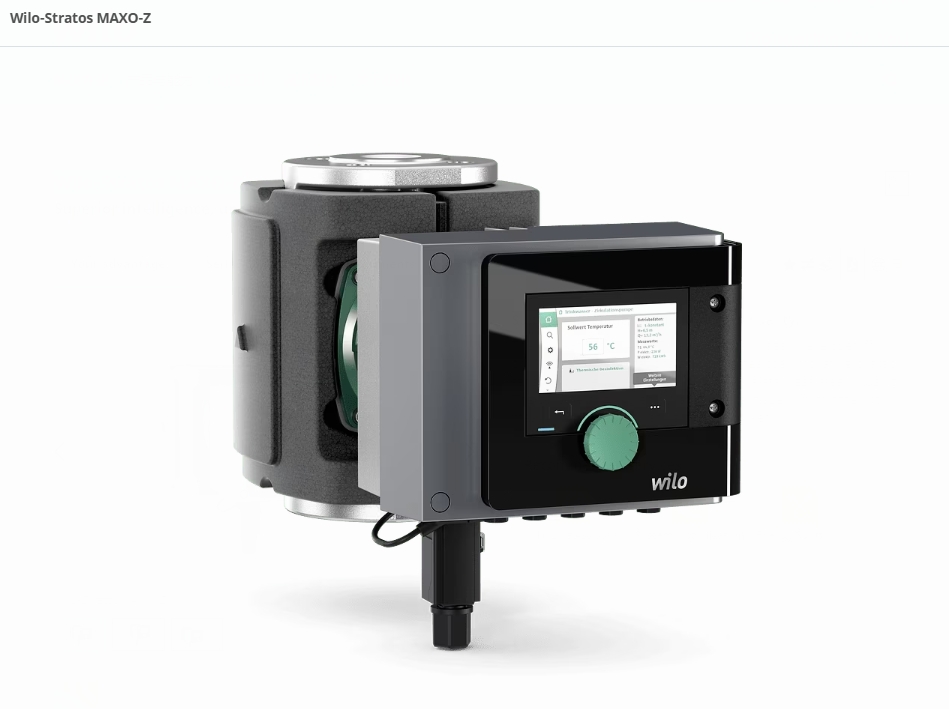

Stratos MAXO-Z Hot Water Heating Wilo Recirculating Pump For Residential

Wilo-Stratos MAXO-Z Hot Water Heating System Circulation Pump

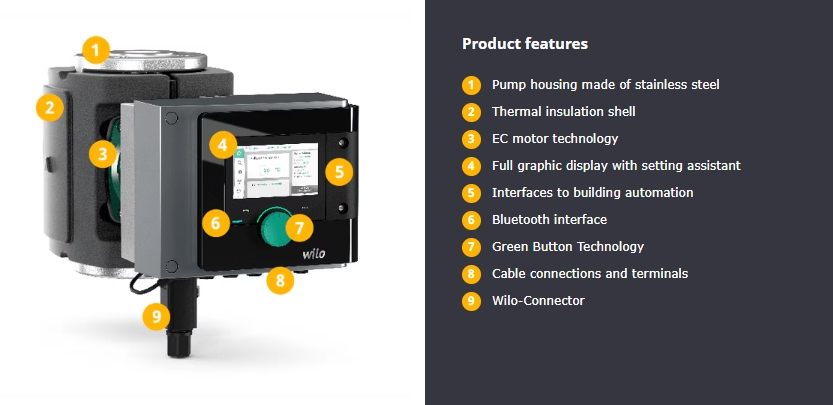

Your advantages

  • Intuitive operation by application-guided settings with the Setup Guide plus the combination of a new display and operating button using the Green Button Technology
  • Highest standard of drinking water hygiene and energy efficiency with the new, intelligent T-const. control function.
  • Optimum hygiene support thanks to the detection of thermal disinfection
  • Latest communication interfaces (e.g. Bluetooth) for connecting to mobile terminal devices and direct pump networking using Wilo Net for multiple pump control
  • Maximum convenience in electrical installation thanks to a clearly arranged and spacious terminal box and the optimised Wilo-Connector



Design

Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment

Application

Domestic hot water circulation systems of all kinds, hot-water heating systems of all kinds, air-conditioning, closed cooling circuits, industrial circulation systems

Equipment/function

Field of application

The pump facilitates an operation with highest system efficiency via precise setting of the control mode for the system-specific application (e.g. circulation, drinking water storage tank).


Drinking water

  • Circulation
  • Drinking water storage tank

Other applications are possible:


Heating

  • Radiator
  • Underfloor heating
  • Ceiling heating
  • Fan heater
  • Concrete core heating*
  • Hydraulic shunt
  • Differential pressure-less distributor*
  • Buffer heating*
  • Heat exchanger
  • Heat source circuit (heat pump)*
  • District heating circuit*

Cooling

  • Ceiling cooling
  • Underfloor cooling
  • Air-conditioning devices
  • Concrete core cooling*
  • Hydraulic shunt
  • Differential pressure-less distributor*
  • Buffer cooling*
  • Heat exchanger
  • Recooling circuit*
  • District cooling circuit*

(* system types from SW≥01.05.10.00 available)

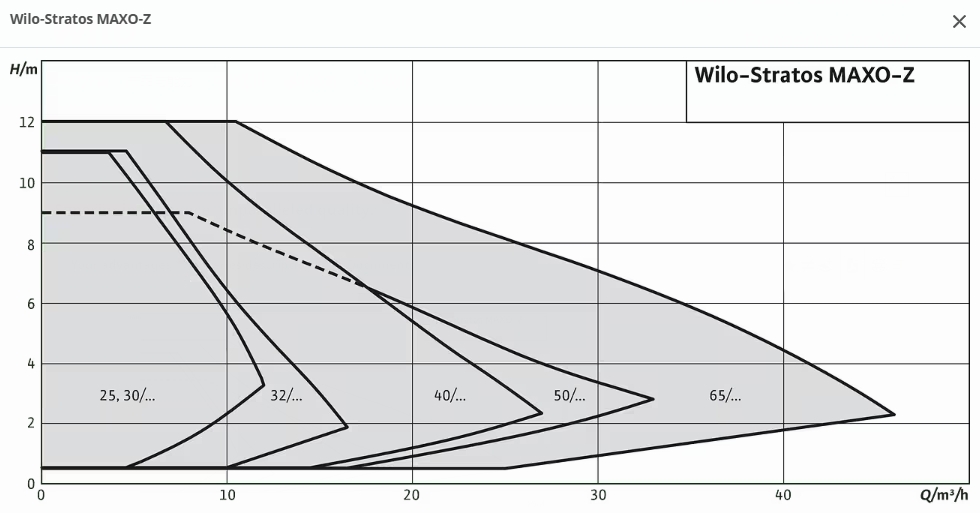

Technical data

  • Permissible temperature range
    • Drinking water up to 3.57 mmol/l (20 °dH): 0 °C to +80 °C.
    • Heating water: -10 °C to +110 °C.
  • Mains connection 1~230 V, 50/60 Hz
  • Protection class IPX4D
  • Screwed connection or flange connection (depending on type) Rp 1 to DN 65
  • Max. operating pressure of standard version: 6/10 bar (special version: 16 bar)
  • Max. volume flow Q: 46 m³/h
  • Max. delivery head H: 12 m

Materials

  • Bearing: Carbon-graphite
  • Impeller: PPS-GF40
  • Pump housing: Stainless steel
  • Shaft: 1.4122, DLC-coated
