Reinforced Joint Clamp for BS EN 61537 Wire Mesh Cable Tray

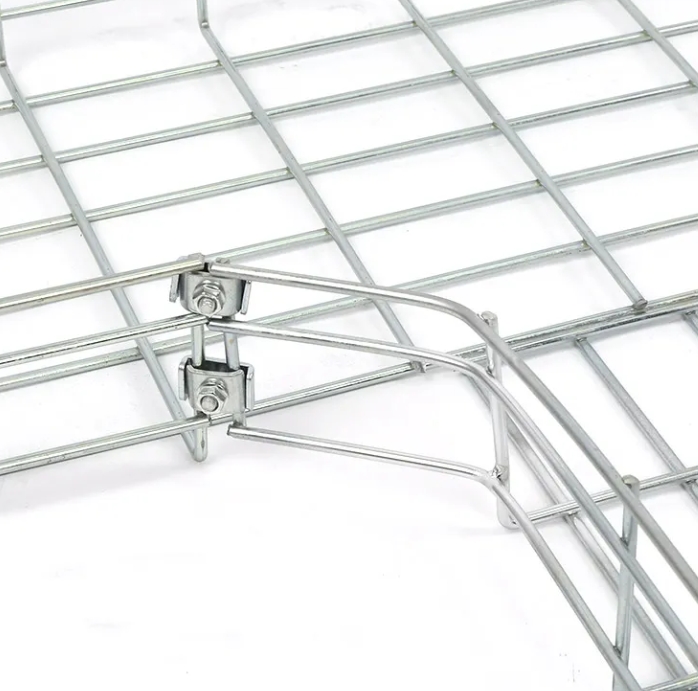

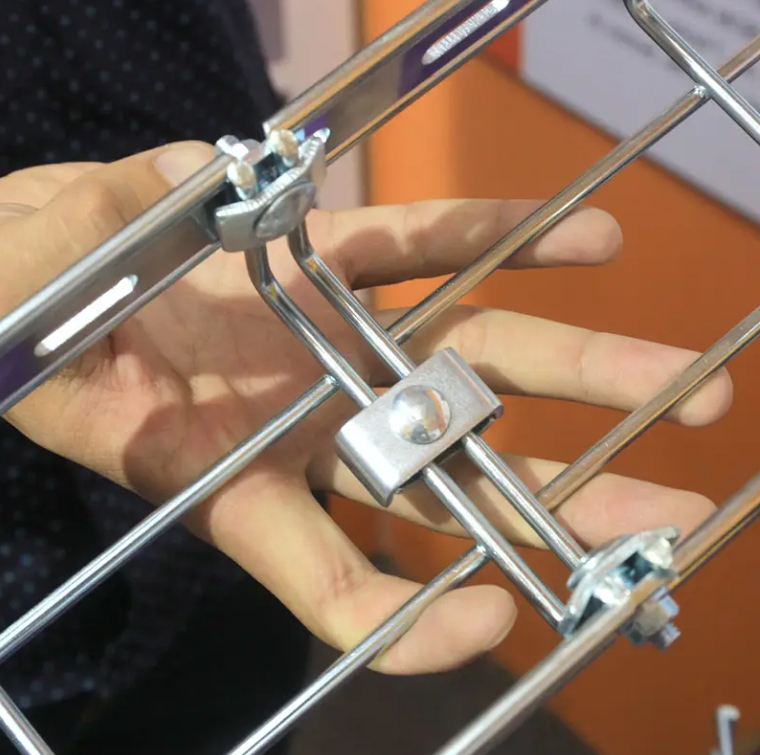

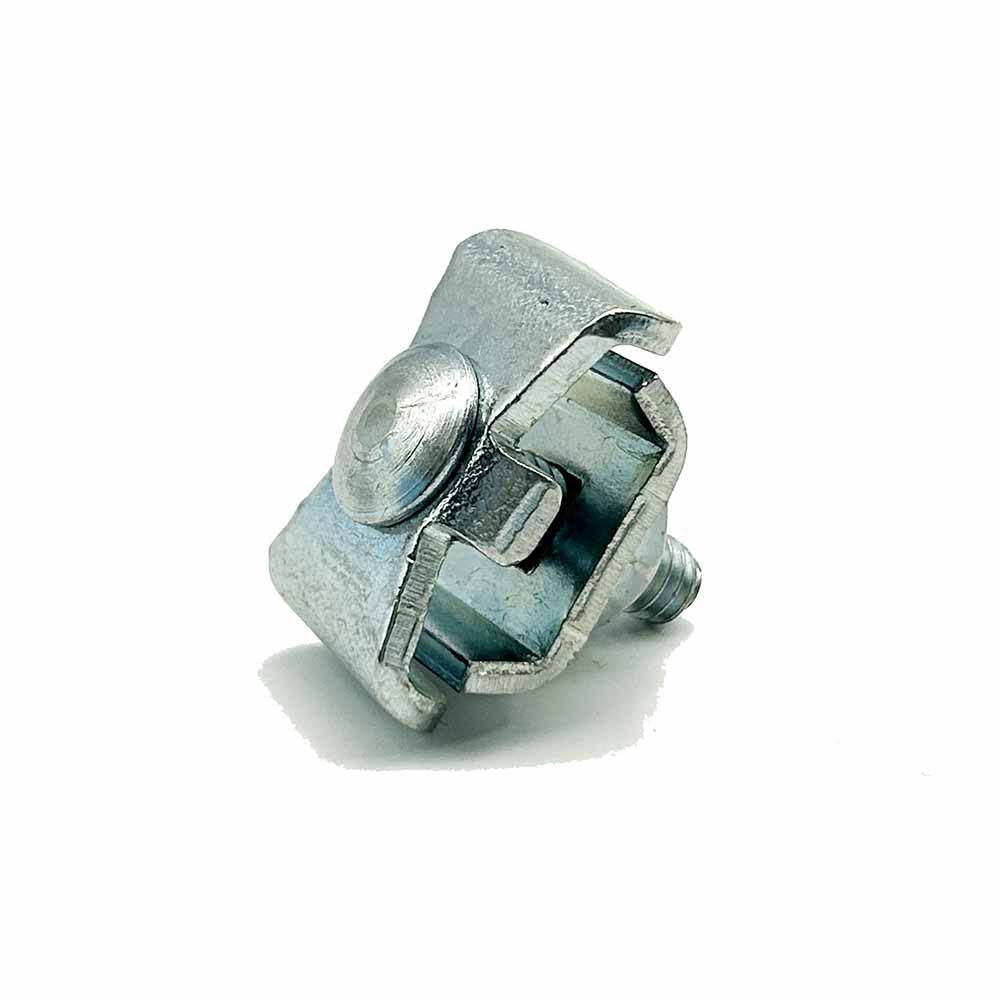

Reinforced Joint Clamp for Wire Mesh Cable Tray

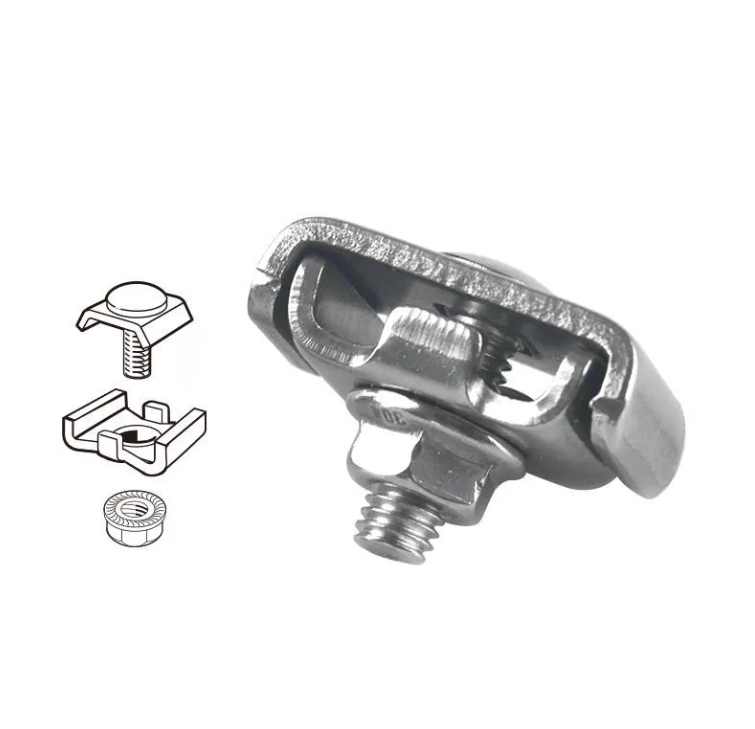

Stainless Steel Cable Tray Splice Washer Coupler Kit: Carbon Steel Cable Tray Splice

Features of Reinforced Joint Clamp for Wire Mesh Cable Tray

1. Sturdy Construction:

crafted from quality carbon steel, our wire mesh cable tray coupler kit stands out in the crowd; The silver material ensures durability and resistance to easy breakage, making it a preferred tool for various mesh panel projects

2. Anti Rust Feature:

This kit is electro galvanized to fight against rust and corrosion; It offers standout performance, especially for grid wall displays and panels

3. Easy Installation:

Our coupler kits present a smooth installation process; They come with a 3/4 inch carriage bolt that allows easy connection via hex nut tightening; This feature makes the coupler kits ideal for cable tray system installations

4. Ideal Measurement:

Reinforced Joint Clamp for Wire Mesh Cable Tray come with the ideal size and thickness- about 0.1 inch/2.5mm to accommodate wire diameters of 4-6mm; Designed to perfectly match your batten grid panels and wire grids

5. Suitable Hole Size:

With an ideal hole size of about 0.26 x 0.26 inch/ 6.5 x 6.5 mm, they provide a well fit and stability; This makes it easy to fit to your cable tray system without much hassle

How to install the Cable Tray Splice Washer Kit?

To install a Cable Tray Splice Washer Kit, start by aligning the cable tray sections and ensuring the ends are clean and flush. Position the splice washers over the connection points, aligning the pre-drilled holes on the trays. Insert the bolts through the holes and loosely thread the Nuts onto them. Use a level to check alignment and adjust as necessary. Once aligned, securely tighten the bolts with a wrench, being careful not to overtighten. Finally, verify the connection for stability and ensure all components are securely fastened as per the manufacturer’s guidelines.

Yokelink supply a vast range of Fasteners for various industries, including construction, automotive, machinery, energy, electronics, and more. To ISO, DIN, ANSI/ASME, BS, and JIS standards, including: Nuts, Bolts, Screws, Washers .

There are hundreds of combinations of materials, heads, threads, plating, heat treating, and secondary operations. The materials and finishes including Steel, Brass, Stainless Steel, Aluminum, Zinc plating, Galvanized and Black.

We provide standard and specialised Fastener solutions, coupled with industry customers. We can also have the flexibility, capacity and expertise to manufacture fully customised Fasteners specific to your application.

YOKELINK FASTENERS INCLUDING:

• Heavy Hex Bolt (ASTM A325/A325M, ASTM A490/A490M, EN14399-3, EN14399-4, JIS B1186(F10T), GB1228, AS1252, IS3757)
• Tension Control Bolt(ASTM F1852, F2280, EN14399-10, S10T, GB3632)
• Shear Connector (ISO13918, AWSD1.1 / 1.5, GB/T 10433, JIS B1198)
• Hex Bolt (DIN933 / DIN931, ISO4014 / 4017, EN15048, SAE A307, AS1110, JIS B1180 grade 4.8,8.8,10.9)
• Foundation Anchor Bolt ("L","J","U","I" type with 4.8, 8.8 and 10.9 grade. ASTM F1554 GR 36, 55, 105 )
• Thread Rod including Stud Bolt (DIN975 / 976, A193 B7)
