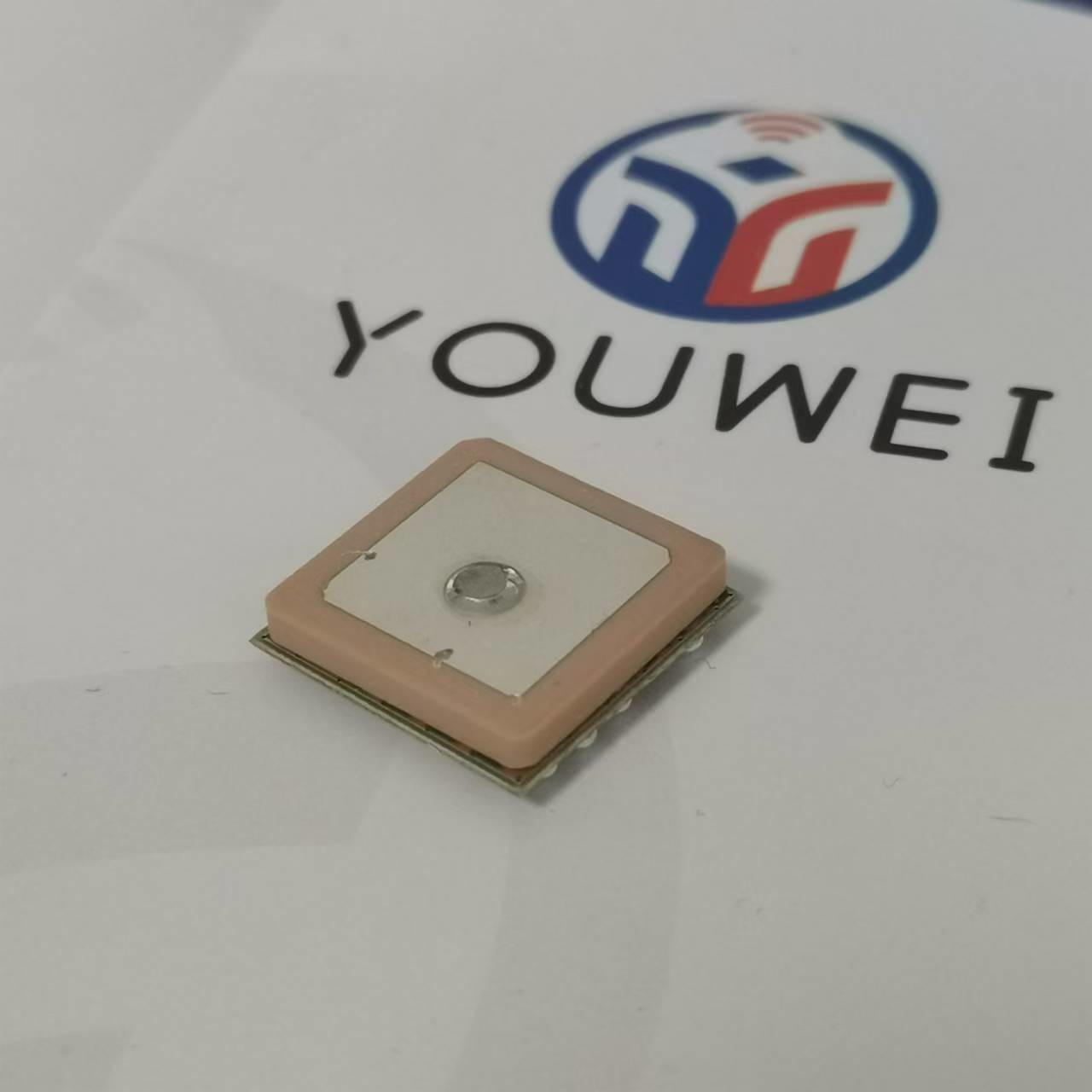

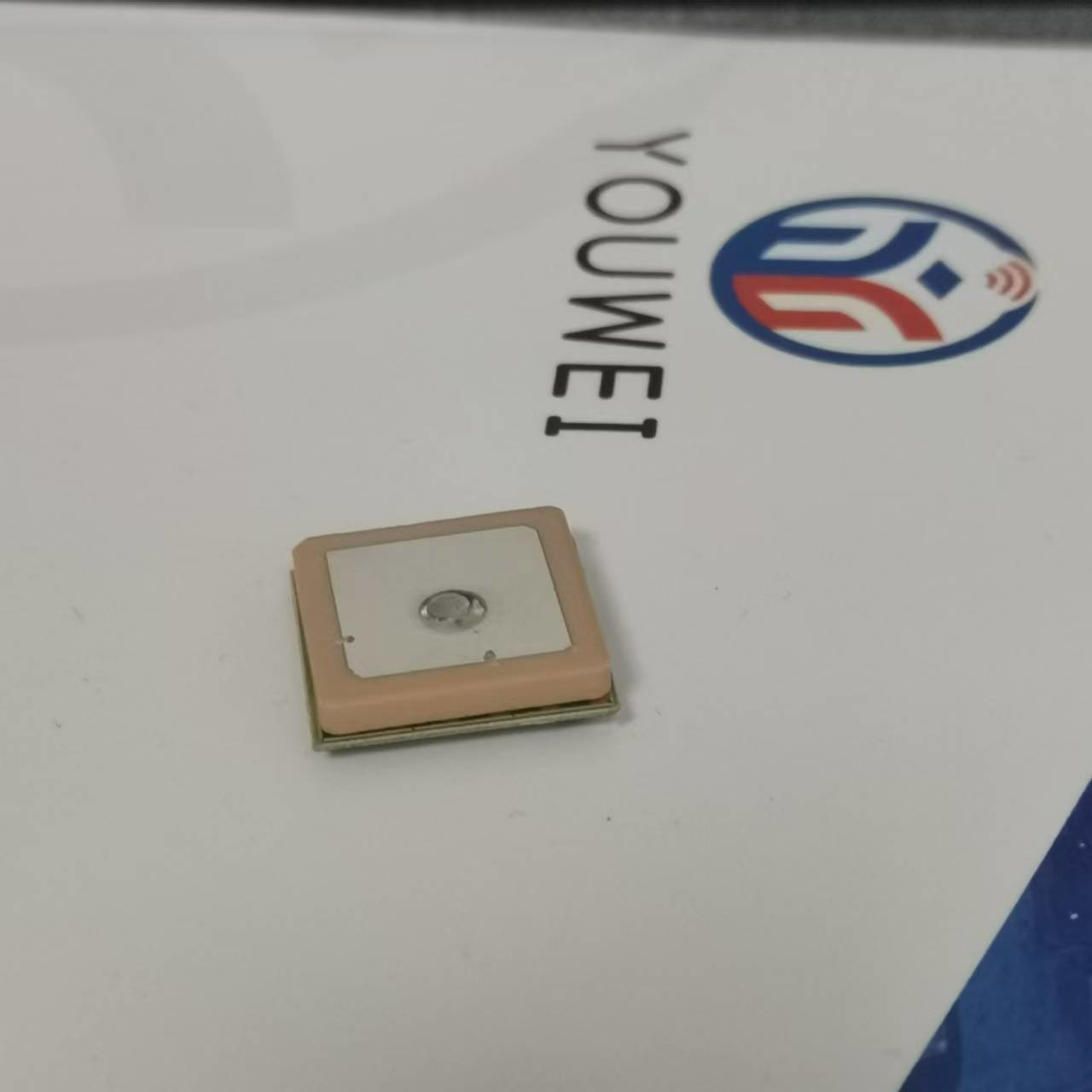

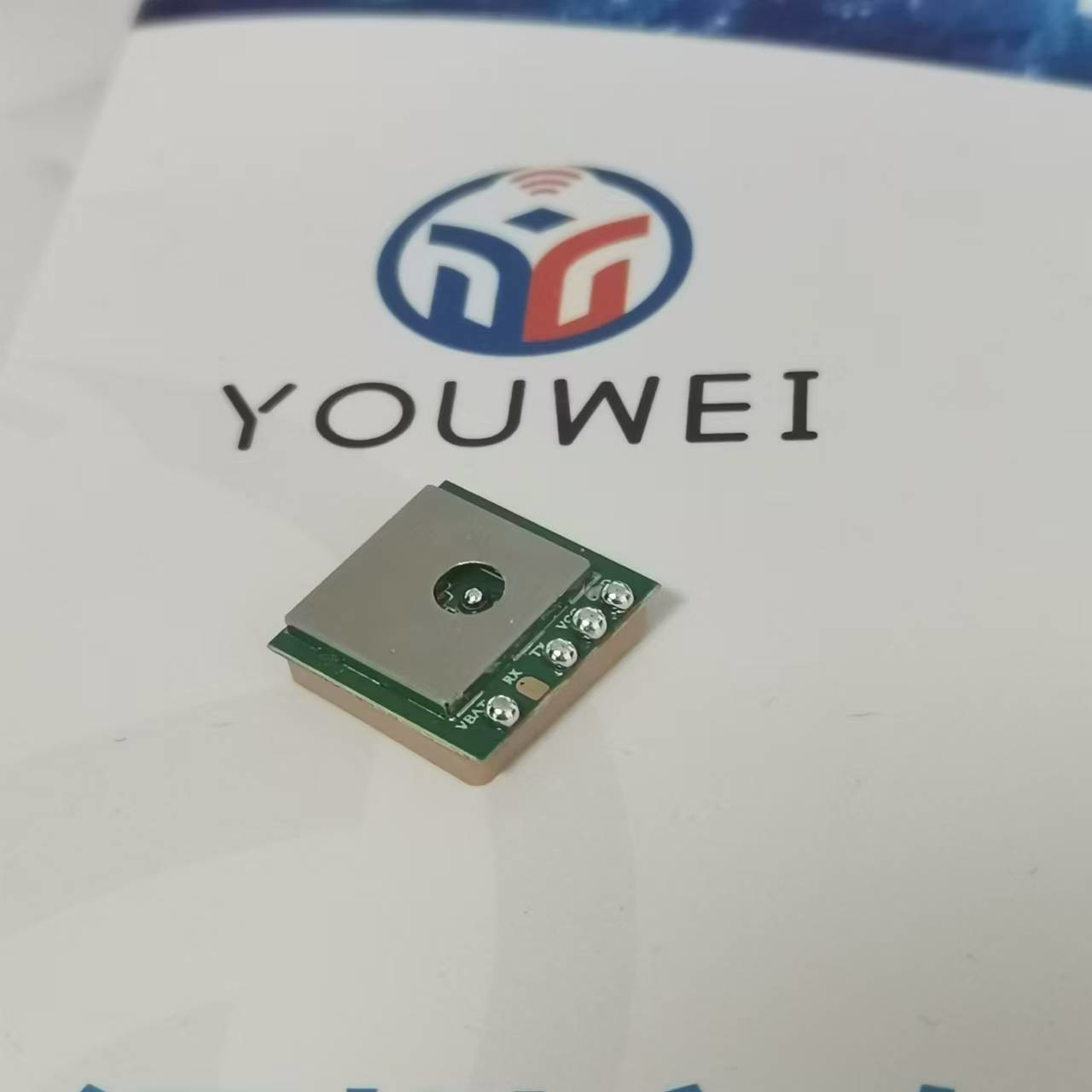

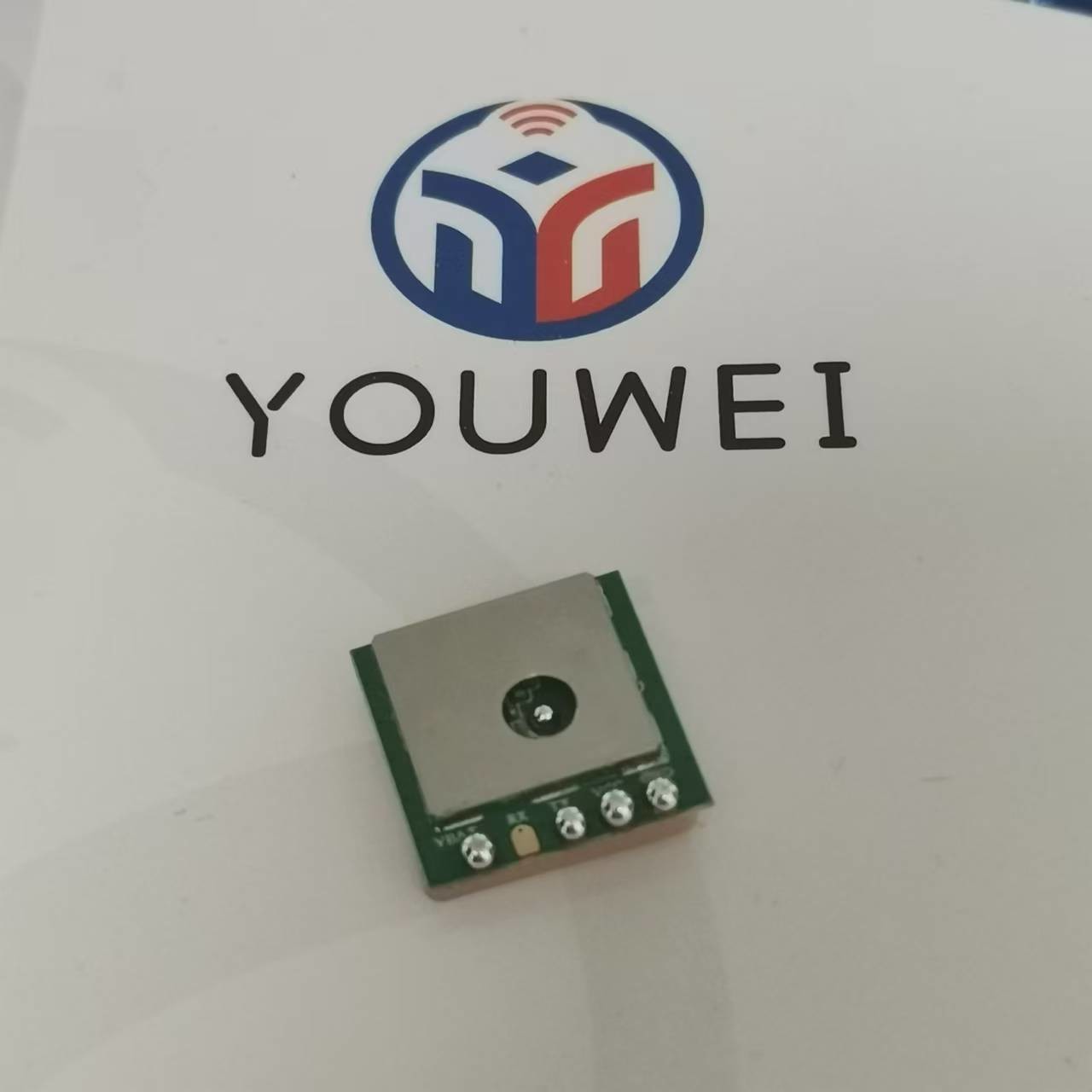

High Performance Gps Tracking Module GNSS Module For Accurate Positioning And Navigation

High-Performance And GNSS Module For Accurate Positioning And Navigation

1 GNSS module before the SMT note:

1.1 When customers Open stencil must be sure the hole bigger to the GNSS module plate, please press 1 to 1 and 0.7 mm is widened

to open outward, the thickness of 0.12 mm.

1.2 Can't get the GNSS module bare hands when needs,must we wear the gloves and static ring.

1.3 The furnace temperature according to the size of the customer the mainboard ,generally like to stick on a tablet standard

temperature of 250 + - 5,can do 260 + - 5.

2 Storage and use GNSS module control should pay attention to the following matters:

2.1 Storage life:12 months. Storage conditions:<40℃. Relative humidity:<90%R.H.

2.2 After this bag is opened , devices that will be subjected to infrared reflow, vapor-phase reflow, or equivalent processing must be :

2.3 Check the humidity card :stored at ≦20%RH.If :30%~40%(pink)or greater than 40%(red).Labeling module has moisture absorption.

2.4 Mounthed within 168 hours at factory conditions of: t≦30%℃,≦60%R.H.

2.5 Once opened, the workshop the preservation of life for 168 hours.

3 If baking is required,devices may be baked for:

3.1 Modules must be to remove module moisture problem.

3.2 Baking temperature: 125 ℃, 8 hours.

3.3 After baking, put proper amount of desiccant to seal packages.

4 The actual number of module vacuum packing which is based on the actual number of packages to the customer

requirements.

5 Module reel packaging items as follows.

5.1 Storage life:12 months. Storage conditions:<40℃. Relative humidity:<90%R.H.

5.2Module apart packing after 168 hours,To launch patch need to bake, to remove the module hygroscopic, baking temperature

conditions:125℃,8hours.

5.3 The actual number of module reel packing which is based on the actual number of packages to the customer requirements.

6 Module pallet packaging items as follows:

6.1 Storage life:3 months. Storage conditions:<40℃. Relative humidity:<90%R.H.

6.2 Module if not used within 48 hours, before launch the need for baking, baking temperature: 125 ℃, 8 hours.

6.3 Pallet packaging each plate is 100 PCS.The actual number of module pallet packing which is based on the actual number of packages to the customer requirements.

Product Description

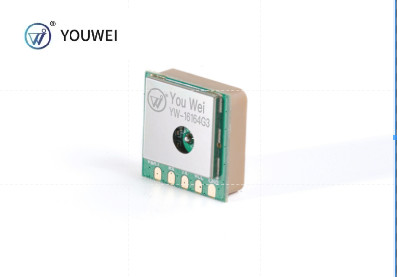

Model Number	YW-16164G3
Type	integrated circuit
Place of Origin	China
D/C	New
Description	GNSS module
Name	YOUWEI High Performance Low Price GPS Module
support walk model	yes
High sensitivity	-162dBm
Operating temperature range	-40 to 85°C
Battery	Internal back-up battery
Low Power	25MA
Timing (PPS)	10ns RMS

1.Company info

Youwei Communication is a professional GNSS system (GPS, Beidou. GLONASS, GALILEO) navigation solution provider. Intended to provide a one-stop GNSS satellite timing, measurement, positioning, and navigation solution provider to OEM/ODM customers and system integrators both domestically and internationally. Committed to creating long-term value and potential growth for customers.
Since its establishment, Youwei Communication has established a technical team with rich experience in RF technology, GNSS/WIFI/Bluetooth/GPRS software and hardware development. Guoxing Beidou can provide a series of industrial grade high-quality GNSS navigation and positioning modules such as GPS, Beidou, GLONASS, GALILEO, GPRS communication modules, and indoor positioning solutions. Based on the module core, secondary development and application can be carried out to provide customers with personalized wireless product solutions and enhance their overall competitiveness.
The company's products are widely used in M2M industries such as wireless public telephones, commercial telephones, wireless monitoring, GPS car terminals, home anti-theft, car anti-theft, wireless data transmission, wireless DTU, PND, power meter reading, power system monitoring, water affairs, oil fields, mining, POS free machines, shipping, wireless PDA, logistics, IoT industry chain, industrial automation, information dissemination, etc. Remote meter reading and centralized meter reading for smart grids, municipal street light control, building automation control, industrial (security) video monitoring, water conservancy and hydrological monitoring, financial mobile POS terminals, remote pipeline network monitoring for energy (energy, water supply, heating, etc.), meteorological monitoring, environmental protection, intelligent transportation, smart homes, media advertising, digital healthcare, earthquake monitoring, industrial remote sensing and telemetry, fire safety, coal mines, etc. Real time online detection, oilfield data collection and other fields.
