Bar Type 12.3 Inch Ips Screen 1920x720 Lvds Interface 1200nits TFT LCD Display Module Panel

About this item 12.3 inch TFT LCD TXW123002B0

12.3-inch bar shaped automotive capacitive touch screen TFT LCD display, with a resolution of 1920x720 and LVDS interface, is a display module designed specifically for automotive infotainment systems and high-end in car display applications. The following is a detailed introduction of the product:

1. Display Technology:
   -TFT LCD technology provides high definition and color saturation, ensuring clear image display and true color.
2. Resolution:
   -The resolution of 1920x720, which is 720p high-definition resolution, provides clear visual effects for drivers.
3. Screen size:
   -The 12.3-inch screen size is suitable as the main display screen for in car infotainment systems, providing sufficient display space.
4. Touchscreen Technology:
   -Capacitive touch screen technology supports multi touch and provides a sensitive and precise operating experience.
5. Interface type:
   -LVDS (Low Voltage Differential Signaling) interface supports high-speed data transmission and is suitable for transmitting high-definition video signals.
6. Application Scenarios:
   -Suitable for in car display applications such as dashboard, navigation system, rear seat entertainment system, etc.
7. Durability:
   -Industrial grade design, capable of stable operation over a wide temperature range and adapting to various harsh environments.
8. Installation method:
   -Bar design, suitable for installation on the center console or dashboard of vehicles, saves space while providing a large screen experience.
9. Brightness:
   -High brightness design 1200 nits ensures clear display effects under various lighting conditions.
10. Anti interference performance:
    -Good electromagnetic compatibility, able to maintain stable display performance in complex electromagnetic environments.
11. Technical Support:
    -Provide detailed technical support and customized services to meet specific customer needs.

GeneraI information

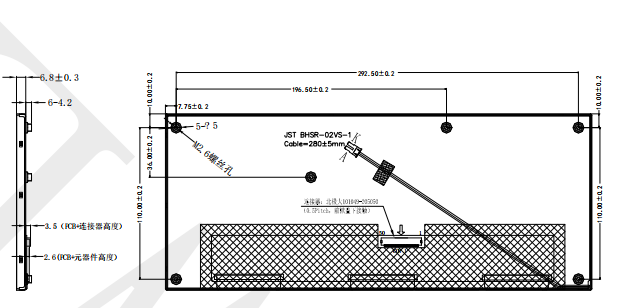

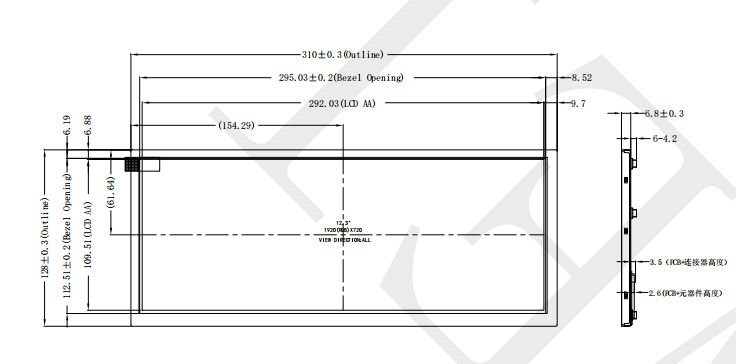

Mechanical Outline Drawing

Absolute Maximum Rating

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 63 white LEDs. The characteristics of the back-light are shown in the following tables.

Note:

• The “LED life time” is defined as the module brightness decrease to 50% of original brightness at I_L=20mA/LED. The LED life time could be decreased if operating I_L is larger than 25mA/LED.

Product Image
