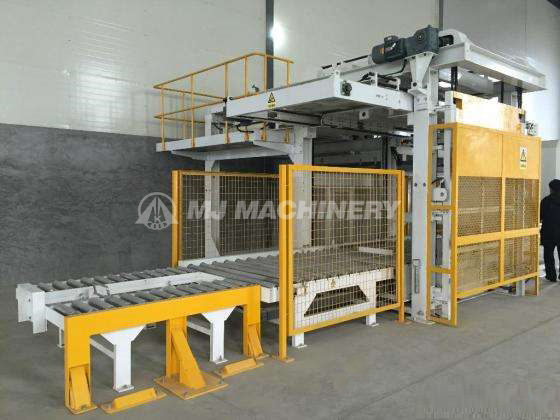

Packaging Line for Full-Automatic Bagging Cement Bagging Plant Palletizer Machine

MJ Automatic high level bag palletizer can stack bigger pallet with higher level and speed compared to the robot palletizer and low level palletizer; high-levelr palletizer is a dedicated high-speed automatic palletizing Equipment. High-level palletizing machine will be transport bags to a certain height, according to PLC program, then bags will be translocated, grouped, pushed and stacked on the pallet, finally the full pallet will be conveyed out the system.

MJ Fully automatic bag palletizier is suitable for palletizing of big bags, such as fertilizer, flour, cement, rice, chemical raw materials and feed stuffs.The use of touch-screen operation is to achieve man-machine dialogue, which show the production speed, the cause of the malfunction and location, a high degree of automation.It uses PLC programmable bag sorting layer stacking, and pallet supply and discharge can be programmed into the program control.High quality chain with good wear resistance ensures high precision, stable transmission and so on.Imported pneumatic components and cylinders ensures high quality and reliable performance.

Technical Parameters

Model: MJ

Applicable pallet: L1000-1200mm * w1000-1200mm (special specifications can be customized)
Stacking speed: 600-800/ 800-1200/1200-2000bags / hour
Stacking height: 1300-1800mm (special requirements can be customized)
Compressed air pressure: 0.5-0.8 mpa
Machine size: 7300 * 4500 * 3200mm (special requirements can be customized)
