D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface

D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface

D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface
D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface
Categories Card Reader Module
Supported Card Types: EM/TK Series
Communication Interface: USB, UART TTL, Wiegand 26/34
Working Current: 38mA
Operating Systems: Windows ALL, VISTA, LINUX, Android
Reading Time: <100ms
Working Voltage: 3.3V~12V (Refer to detailed voltage values in the above table)
Reading Distance: 3~7cm (distance varies depending on card size and manufacturer)
Antenna Dimensions: Outer dimensions 28.4mm*32.4mm, thickness 1.2mm (default includes standard antenna)
Product Name: Contact IC Card Reader Module
Connector Type: 2.0mm Pin Spacing (Default 4P Pin Header)
Status Indicators: LED Indicator (red light), supports buzzer control (default not included)
Working Frequency: 125KHZ
Communication Speed: Default 9600bps (customizable upon request)
Brand Name: Shi Zun
Model Number: D5-WE-UH-00
Place of Origin: China
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100+pcs+day
Packaging Details: 24.5mm*16mm (includes mounting holes)
Module Dimensions: 24.5mm*16mm (includes mounting holes)
Reading Information: Front 10 digits, back 6 digits (supports card number format conversion)
Contact Now
Company Info.
Shenzhen Jupin Technology Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface

D5-WE-UH-00 ID Card Reader Module RFID Reader 125kHz Fingerprint ID Module Access Control Reader Head UID Reading USB Interface


D5-WE-UH-00 Card Reader Module Features:

  1. Plug-and-play, no driver installation required.
  2. Embedded composite microprocessor technology.
  3. Enhanced microcontroller system improves firmware code stability, effectively preventing data overflow. It optimizes instruction execution time and data interaction rhythm during operations and data processing.
  4. Low power consumption.
  5. Strong anti-interference capability, suitable for various environments.
  6. High-speed transmission (data response time less than 100ms).
  7. Wireless sensing (contactless RF technology).
  8. System compatibility (Windows, Android).

Keyword:

Card Reader Module

Operating Systems:

Windows ALL, VISTA, LINUX, Android

Communication Interface:

USB, UART TTL, Wiegand 26/34

Working Voltage:

3.3V~12V (Refer to detailed voltage values in the above table)

Communication Speed:

Default 9600bps (customizable upon request)

Reading Distance:

3~7cm (distance varies depending on card size and manufacturer)

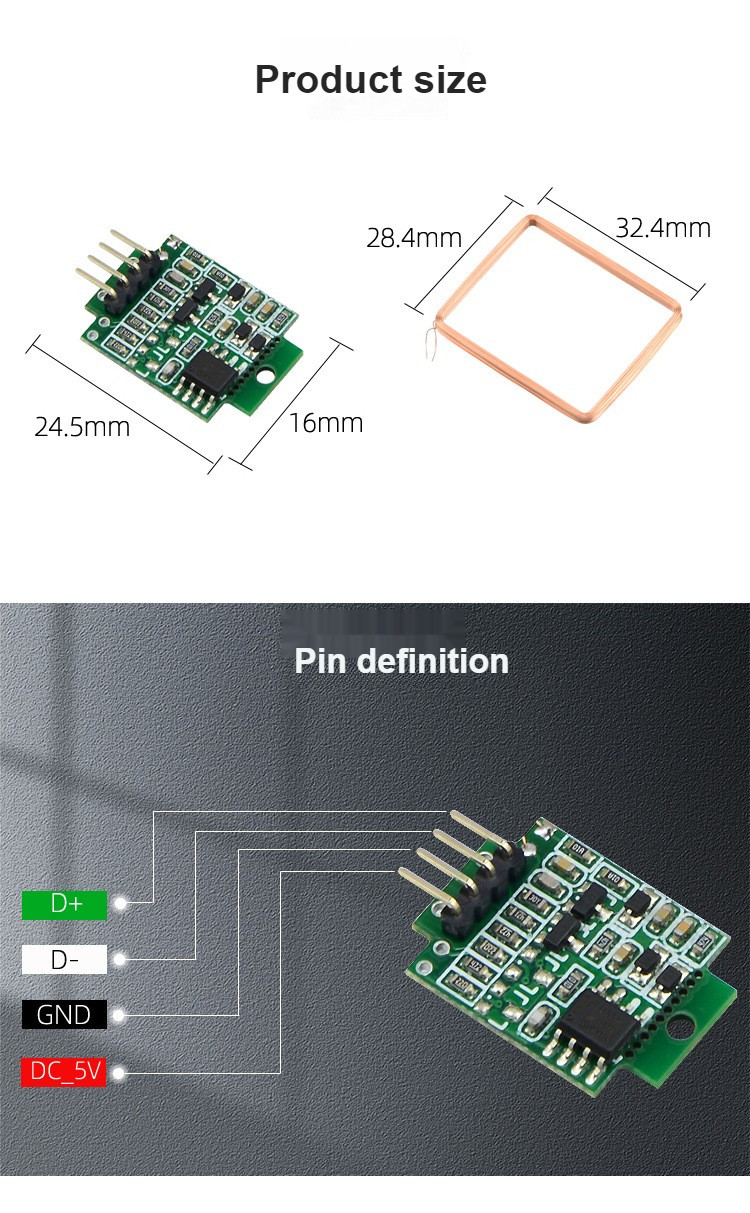

Module Dimensions:

24.5mm*16mm (includes mounting holes)

Antenna Dimensions:

Outer dimensions 28.4mm*32.4mm, thickness 1.2mm (default includes standard antenna)
