19-Inch Android Touch Embedded Screen for Security Systems, Factory Automation, Transportation Interfaces, and Public Information Panels

Categories Embedded Panel PC
Model Number: ZXTLCD-RM190SAT
Certification: CE/Rohs/FCC
Place of Origin: Guangdong, China
MOQ: 1
Price: negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Delivery Time: 3-5 working days
Packaging Details: wooden case, carton, flight case are option
Screen Size: 19 inch
Aspect Ratio: 4:3
Brightness: 250 cd/m²
Install Type: Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment: Outdoor; Indoor
Applications: Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Andriod OS: 10.0; 11.0
Config: 2+32GB; 4+32GB
Brand Name: ZXTLCD
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

19-Inch Android Touch Embedded Screen for Security Systems, Factory Automation, Transportation Interfaces, and Public Information Panels

19-Inch Android Touch Embedded Screen for Security Systems, Factory Automation, Transportation Interfaces, and Public Information Panels

Upgrade of Medical Equipment Control System, 19-inch Embedded Android All-in-One Machine Brings Precise Control


In the medical industry, precise control of equipment is key to improving the quality of medical services. The 19-inch embedded Android all-in-one machine, with its high performance and stable operation, provides a new solution for medical equipment control systems.

19-inch Embedded Android All-in-One Machine: High Performance, Achieving Precise Control

In the medical equipment control system, the 19-inch embedded Android all-in-one machine provides operators with precise control capabilities due to its high-performance processor and stable operation. It not only responds quickly to medical commands but also runs various control software stably, providing operators with a convenient operating platform. Moreover, its durable design allows it to operate stably in medical environments for extended periods.

LCD Panel ParametersScreen Size19 Inch

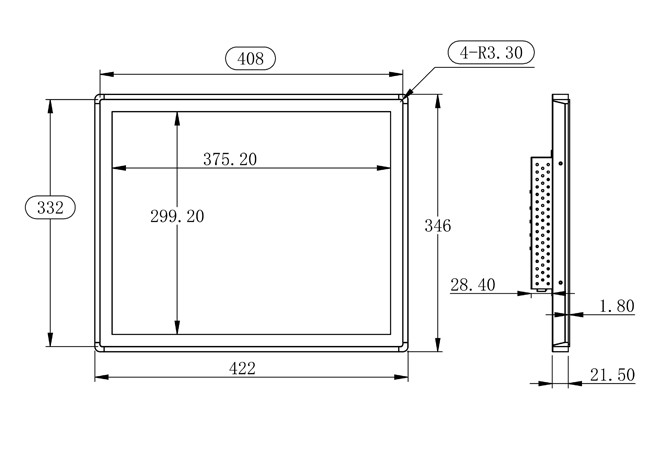

Display Area375.2 mm.(Height) X 299.2(Width)mm.
Aspect Ratio4 : 3
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7m , 73% NTSC
Brightness250cd/
Contrast Ratio1000 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time14ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency100Hertz
PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
Touch Points10 Points
Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed< 6ms
Touch AccuracyMore than 90% of the touch area ±2 mm
Touch MethodInch Stylus
Output FormatCoordinate Output
Click TimeUnlimited
Smallest Touch Size5 mm
Long-lasting DurabilityYes, Available
Touch InterfaceUSB
Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
GPUMali-T764Mali-G52
RAM2GB4GB
ROM32GB32GB
Android SystemAndroid 10.0Android 11.0
Ethernet1 x RJ45, Ethernet 1,000 Mbps1 x RJ45, Ethernet 1,000 Mbps
Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth4.25
InterfaceUSB2.0 x 2USB2.0 x 2
HDMI IN x 1
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0 ~ 50
Storage TemperatureBelow 10 ~ +60
Package SizeDevice Dimensions408 X 322 X 50.7mm.
Net Weight6.5 Kilogram
Package Size47.4 X 40.6 X 10.1Centimeter
Gross Package Weight per Unit7 Kilogram

19-inch Android embedded touchscreen all-in-one machine: stable operation, enhancing the quality of medical services

At the same time, the 19-inch Android embedded touchscreen all-in-one machine also plays an important role in the medical equipment control system. It not only operates the Android system stably but also is compatible with various control software, providing users with more accurate data. Additionally, its silent design and low power consumption make it suitable for use in quiet environments.

The 19-inch embedded Android all-in-one machine and the 19-inch Android embedded touchscreen all-in-one machine, with their high performance and stable operation, are becoming new choices for medical equipment control systems. They not only achieve precise control but also enhance the quality of medical services. In the future, with the continuous advancement of technology, they will play an even greater role in the medical industry.
