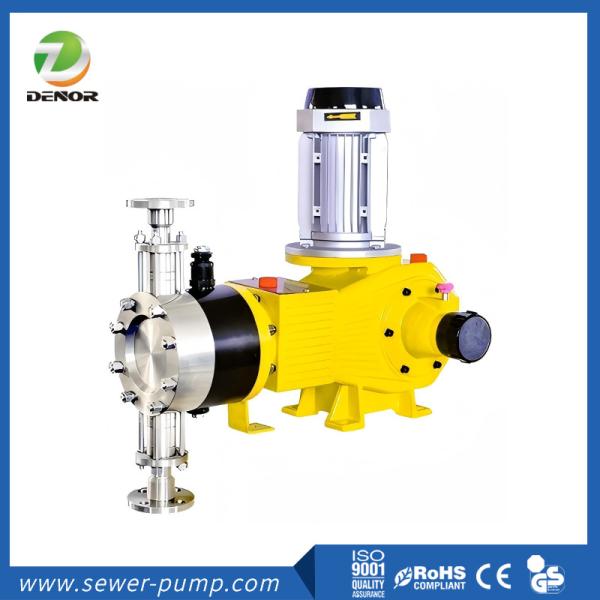

JYPR Hydraulic Diaphragm Chemical Metering Pump Stainless Steel

JYPR Hydraulic Diaphragm Metering Pump

Product Description
Flow: 0-630 lph
Pressure: 0-300 Bar
Power: 1.1KW, 1.5KW, 220V / 380V /400V,50Hz / 60Hz
Drive System: Two or three phases, Anti-explosion motor,Frequency conversion motor
Flow Control: Manual operation, Automatic (can receive
4-20mA signal to adjust flow)
Protection degree: IP55

Material
Pump head: SUS304, SUS316, 304+PTFE, 316+PTFE
Diaphragm: PTFE
Valve: SUS304, SUS316
Valve ball: ZrO2, SUS304, SUS316, Ceramic

Work Condition
Envitonment temperature: -30--- 90ºC

Features
1. No leakage, maintained conveniently, low noise, durable in use.
2. Measuring precision is better than mechanical diaphragm pump,sealing property is better than piston pump.
3. Matching a stroke adjuster to realize remote automatic controlling.
4. The diaghragm is made from multilayer complex structure to promote the life span, the first layer is anti-acid diaphragm, the second is EPDM stretch rubber, the third is 3.00 mm thick SUS304 that supporting the iron corn. The fourth is also the EPDM stretch rubber to cover all of the body.

Performance parameters

Model	Flow rate L/H	Pressure MPa	Plug diameter mm	Stroke (mm)	Pump speed SPM	Motor power Kw	Inlet and outlet diameter/continuous pressing method
JYPR10/70	10	70	10	30	96	1.5	Φ 6 joint sleeve
JYPR15/56	15	56	12
JYPR30/32	30	32	16				Φ 10 basket sleeve
JVPR46/23	46	twenty three	16		144
JYPR60/18	60	18	18
JYPR75/15	75	15	20
JYPR92/12.5	92	12.5	twenty two
JYPR120/9.5	120	9.5	25
JYPR175/6.5	175	6.5	30				Φ 15 joint sleeve
JYPR200/5.8	200	5.8	32
JYPR252/4.5	252	4.5	36
JYPR315/3.7	315	3.7	40
JYPR400/3.0	400	3	45				DN25 flange (HG/T20592RF)
JYPR500/2.4	500	2.4	50
JYPR600/2.0	600	2	55
JYPR720/1.7	720	1.7	60
JYPR830/1.4	830	1.4	65
JYPR960/1.2	960	1.2	70				DN40 flange (HG/T20592RF)
JYPR1100/1.0	1100	1	75
JYPR1250/0.9	1250	0.9	80
JYPR1420/0.8	1420	0.8	85
JYPR1600/0.7	1600	0.7	90

Note: Two or more heads can be connected in parallel to increase the flow and reduce the pulse, and the dosage can be divided into proportions.

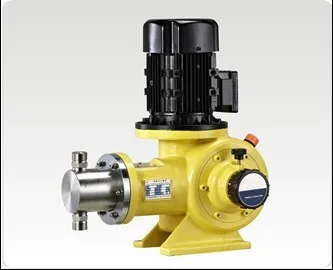

Detailed Photos
