Inline High Speed Fully Automatic SMT Production Line For LED

Categories SMT Assembly Line
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin: jiangsu
MOQ: 1 SET
Price: USD380000
Payment Terms: T/T, L/C, D/P, T/T, Western Union
Supply Ability: 10sets
Delivery Time: 7 days
Packaging Details: Plywooden case
PCB Size(mm): 50*50 ~ 400*340
Support System: Magnetic Pin/Up-down table adjusted/support block
Printer Head: Two independent motorised printhead
Squeegee Type: Stainless steel(standard),plastic
Cleaning System: Dry, Wet, Vacuum
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

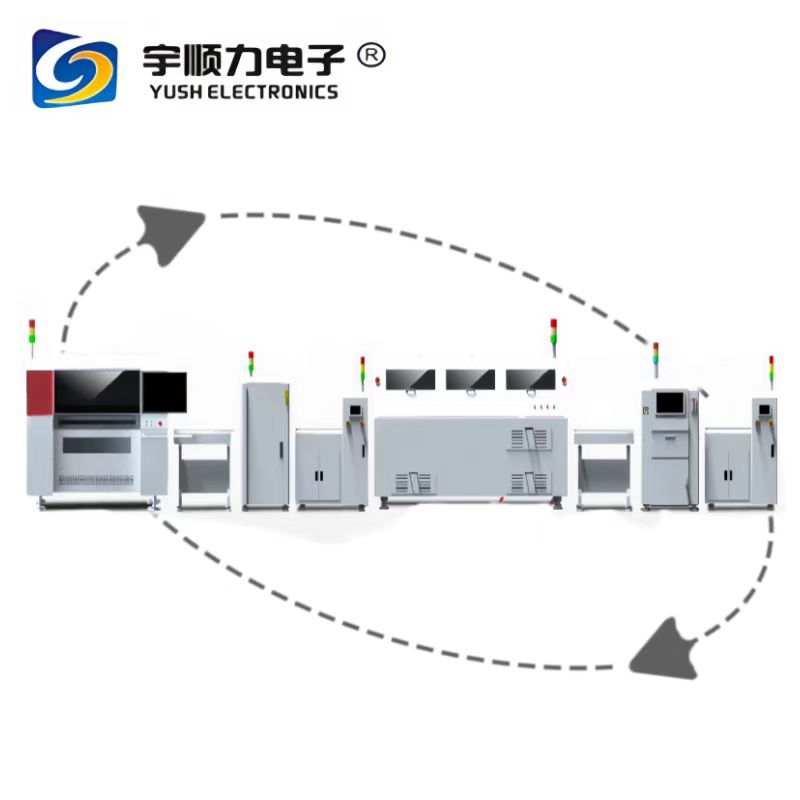

Inline High Speed Fully Automatic SMT Production Line For LED

Inline High Speed Fully Automatic SMT Production Line For LED


SMT Stencil Printer

ModelYSL-4034YSL-5151YSL-6561YSL-1500(LED)
Frame Size(mm)470*370 ~ 737*737470*370 ~ 737*737470*370 ~ 850*850470*370 ~ 1800*750
PCB Size(mm)50*50 ~ 400*34050*50 ~ 510*51080*50 ~ 650*61080*50 ~ 1500*350
TransportDirectionLeft-Right; Right-Left; Left-Left; Right-Right
Support SystemMagnetic Pin/Up-down table adjusted/support block
Clamping SystemSide clamping, vacuum nozzle,Automation retractable Z pressure
Printer HeadTwo independent motorised printhead
Squeegee TypeStainless steel(standard),plastic
Cleaning SystemDry, Wet, Vacuum
Inspection2D Inspection(Standard)
Power SupplyAC:220±10%,50/60HZ,3Kw
Control MethodPC Control
Dimension(mm)1220*1355*15001220*1530*15001330*1530*15002500*1220*1500
WeightApprox:1250kgApprox:1300kgApprox:1300kgApprox:1800kg
ModelYSL-5134YSL-6534YSL-1200(LED)
Frame Size(mm)470*370 ~ 737*737470*370 ~ 737*737470*370 ~ 850*850
PCB Size(mm)50*50 ~ 400*34050*50 ~ 510*51080*50 ~ 650*610
Dimension(mm)1220*1355*15001330*1530*15002200*1200*1500
WeightApprox:1250kgApprox:1300kgApprox:1500kg

Reflow Oven

ModelL8L10
Dimension (L*W*H)mm5000x1250x14905800x1250x1490
WeightApprox. 1600KGApprox. 1800KG
Number Of Heating ZonesUp8/Bottom8Up10/Bottom10
Length Of Heating Zones3121mm3891mm
Rail Width AdjustmentM(option:A)
Exhaust Volume10M3/minx2 Exhausts
Control SystemPLC+Computer
Temperature Control MethodPID + SSR
Transmission AgentChain + Mesh
Electric Supply Required3 phase,380V 50/60Hz
Power For Warm Up55KW64KW
Power Consumption8KW12KW
Warming TimeApprox.25 minute
Temp. Setting RangeRoom Temp.-- 300°C
Conveyor Height900+/-20mm
Conveyor Speed Range300~2000mm/mi
Fixed Rail SideFront Fixed (Option:Rear Fixed)
Cooling MethodForced-Air Motor and fan (Standard)

Model622733
Dimension (L*W*H)mm5040x1450x14505800x1450x1450
Machine WeightApprox. 2200KGApprox. 2400KG
Number Of Heating ZonesUp8/Bottom8Up10/Bottom10
Length Of Heating Zones3030mm3730mm
Number of Cooling Zones23
Control SystemPLC+ComputerPLC+Computer
Transmission AgentChain + MeshChain + Mesh
Max.Width Of PCB460mm460mm
Power For Warm Up45kw55kw
Power Consumption8kw10kw
Conveyor Height900+/-20mm900+/-20mm

Company Profile

YUSH Electronic Technology Co.,Ltd was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YUSH have became one of the biggest PCB separator production base in China.

FAQ


1. who are we?
We are based in Jiangsu, China, start from 2014,sell to Eastern Europe(20.00%),North America(20.00%),South America(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Western Europe(10.00%),South Asia(10.00%),Mid East(5.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
pcb depaneling,pcb separator,pcb cutting machine,PCB depaneler,v-cut machine

4. why should you buy from us not from other suppliers?
YUSH Electronic Technology Co.,Ltd.Was founded in 2004,is located in the world manufacturing city Jiangsu,Professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experie

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,Korean,Hindi
