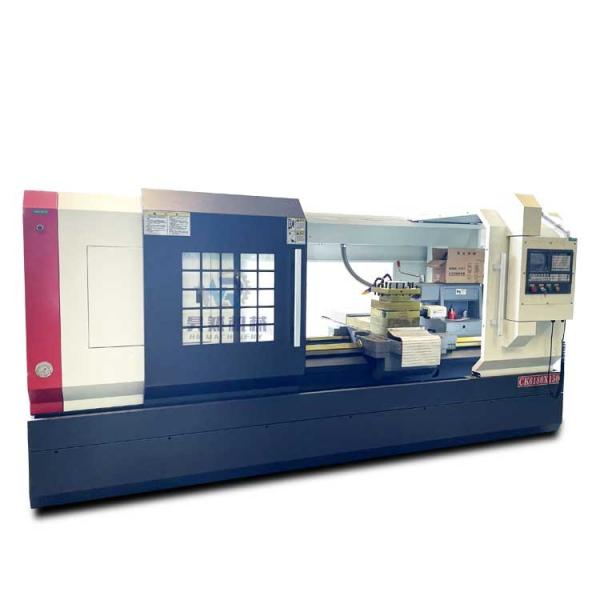

Ck6180 Cnc Lathe Machine High precision high strength

Ck6180 Cnc Lathe Machine High precision high strength

Ck6180 Cnc Lathe Machine High precision high strength
Ck6180 Cnc Lathe Machine High precision high strength
Categories CNC Lathe Machine
Brand Name: HR
Model Number: ck6180
Certification: CE
Place of Origin: Shandong,China
MOQ: 1 sets
Price: $28200 1set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40sets months
Delivery Time: 30 days
Packaging Details: WOODEN CASE
Voltage: 380V,3 PHASE 380V 50HZ
size: ck6180
Axis Motors: High Torque
Bar Feeder: Yes
Chip Conveyor: Yes
Control System: GSK Fanuc
Coolant System: Yes
Machine Type: CNC Lathe Machine
Spindle Motor: High Torque
Tailstock: Yes
Axis Travel: 1000/2000/3000
Chuck Size: According to customization
Spindle Nose: low noise
Spindle Orientation: horizontal direction
Spindle Speed: high
Tool Capacity: turning
Turret Type: 4/6/8
Contact Now
Company Info.
Shandong HR Machinery Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Ck6180 Cnc Lathe Machine High precision high strength

Chinese Factory Exporting Type Big Size
Heavy Duty CNC Lathe Model CK6180
Product Description
CNC Lathe Features
1.A high strength, widening the crriage, suitablefor heavy cutting
2.Four position electricturret
3.Frequency conversion stepless speed regulation
4.Standard configuration: manual chuck
5.Optional configuration:hydraulic chuck
CNC Lathe use
The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.
Parameter List
Max. swing over bed (mm)
φ800mm
Max. swing dia. over cross slide(mm)
φ500mm
Max.processing length(mm)
1000/1500/2000/3000mm
Form
Four gears No grade to change frequency
Range of spindle speed(r/min)
25-850 rpm
The spindle terminal structure
C11
Diameter of spindle bore (mm)
φ105mm
The taper of spindle front-end
(Metric)120 1:20
Power of main motor (KW)
11KW
Processing accuracy(mm)
IT6-IT7
Surface roughness
Ra1.6
Sleeve diameter of tailstock (mm)
φ100mm
Sleeve travel of tailstock (mm)
250
Cone hole taper of tailstock’s sleeve
MT6
Standard configuration
Four-station vertical electrical knife rest
Restting accuracy (mm)
0.01mm
Length of section of knife handle (mm)
30×30
Length*width*height
3300/3800/4300 ×1940 ×1800mm
Net weight (Kg)
4100/4500kg/5500kg
Detailed Images
Precision chuck
* Fast clamping product rotation at the same time for processing
* Optional hydraulic chuck
CNC tool rest
* Standard configuration 4 knife position
* Can be selected according to the requirements of 6 knife position, 8 knife position
Numerical Control System
* Assembly of wide numerical control system, but also optional other numerical control system
Tailstock
*Tailseat Tailframe body can be easily pushed and pulled from left to right.
*High precision, strong bearing capacity, reliable operation and so on. The sleeve is quenched and finely ground.
Certificate
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Customer Visiting
Every year we have customers from all over the world to visit our factory, we will introduce our products to customers in detail.
Our services
Our services
1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
2. Received your phone or mail,we will Analyze the problem immediately.
3.Supply professional solution, after analyze the problem, we give you our best solution.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
