PQWT-L series is the newly updated and multi-functional water leak
detector, it is applied to different detecting leakage of outdoor
water pipe, fire pipe, heating system, indoor water pipe, and
underground heating floor pipe. By collecting and analyzing leakage
signal, it solves the problem of pressure pipe water leak.
The major components of the instrument include: Host Machine, Noise
Reduction headphone, Middle Sensor(for outdoor normal environment), Large Sensor(for outdoor
noisy environment), Telescopic Pole (for connecting sensors), Sound
pole (for inserting soft soil, lawn)
Instrument operation
General Detection which is mainly used to check the pipeline water leakage in large
areas.

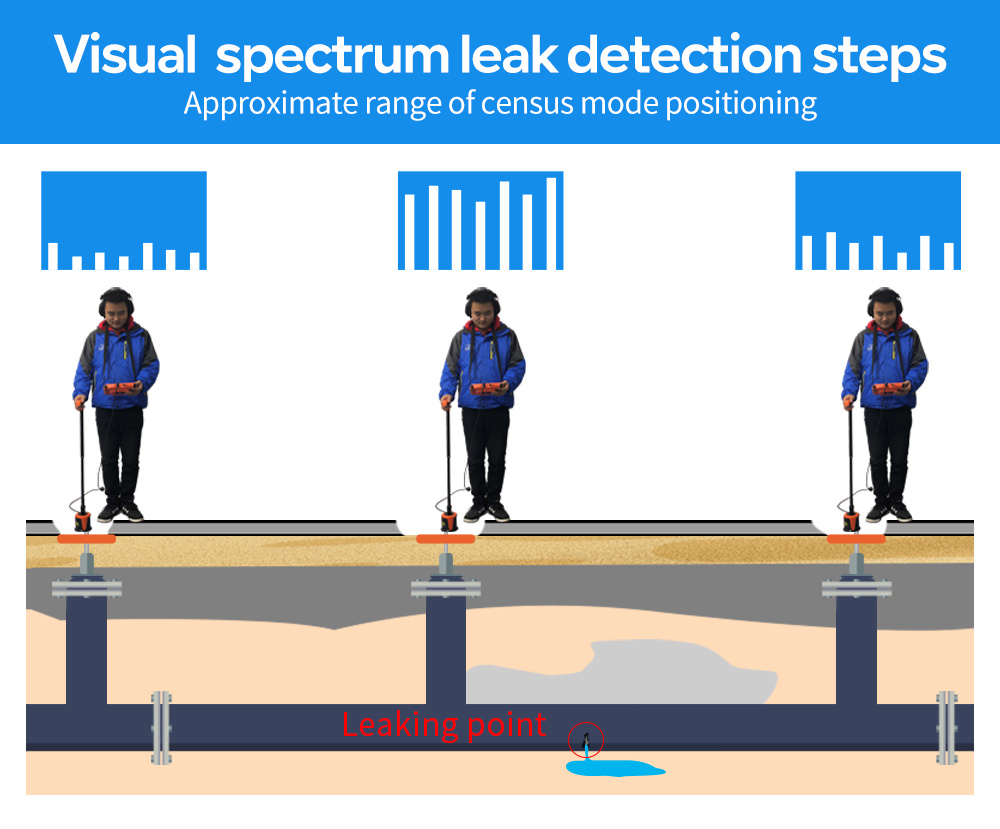

Locating which is mainly used to locate the leak points in suspected leakage
areas.

Technical ParametersModel | PQWT-L2000 | PQWT-L3000 | PQWT-L4000 | PQWT-L5000 | PQWT-L6000 | PQWT-L7000 |
Measuring area | Outdoor Pipeline | Indoor+outdoor pipeline | Indoor+outdoor pipeline | Indoor+outdoor pipeline | Outdoor Pipeline | Indoor+outdoor pipeline |
Sensor | Middle Sensor | Middle +Square Sensor | Middle + Triangular Sensor | Middle+ Triangular +Square Sensor | Middle+ Large Sensor | Large+Middle+ Triangular +Square Sensor |
Frequency Range | 1-10000HZ |
Gain | 10 levels adjustable |
Volume | 10 levels adjustable |
Operating Mode | General Detection; Locating Mode |
Display | 7 Inch HD digital touch LCD screen |
Charting hours | 7-8 hours |
Working hours | 15 hours |
Charger | 5V 2A USB |
Languages | English, French, Russian, Spanish, Turkish, Italian, Arabic |
Input Power | Around 2w |
Working temperature | ( -20ºC~ +50ºC ) |
Weight (Host Machine) | 0.7Kg |
Packing & ShippingPacking
| one set in flight case and Carton |
Carton size (LxWxH):56x22x42cm |
G.W: 9kgs |
Shipment terms | Shipping way: DHL/ FEDEX / TNT/UPS/EMS |
Delivery time: 1-2days after receipt of payment |
Shipping time: 5 working days express. 5-7 working days by air. 23-25 working days by sea |
Payment methods | T/T , PayPal , ESCROW |
Payment terms | sample order: 100% payment before production bulk order: prepay 30-50% deposit before production, the balance
should be paid before shipment |
FAQIs it difficult to operate?
---The device is simple to operate and can be used without any
experience.
There are related U disks with detailed information in the box.
Guide for After-sale Service
> 2-year guarantee-if using of the product is influenced due to
quality problem, you may receive guarantee of the product within 2
year after the date of purchase;
> Lifetime maintenance-lifetime maintenance service is
implemented on all factory series products. We offer maintenance of
machine which surpasses the maintenance period or has manual damage
with material and labCase showCompanyHunan Puqi Water Environment Institute Co.Ltd. is the professional institution in China who engaged in the R &
D,manufacturing and selling of Geophysical Prospecting
Instruments,Pipeline leak detector, Underground metal detector and
Borehole inspection equipment. More than 200 staffs,including 16
senior engineers, 49 intermediate engineers.
