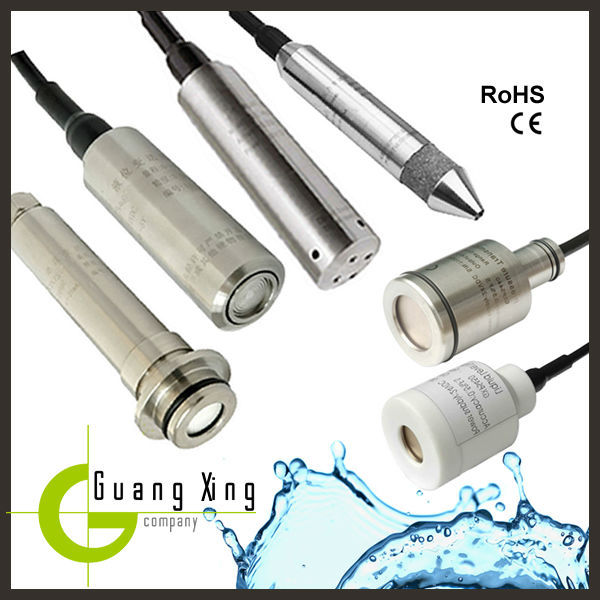

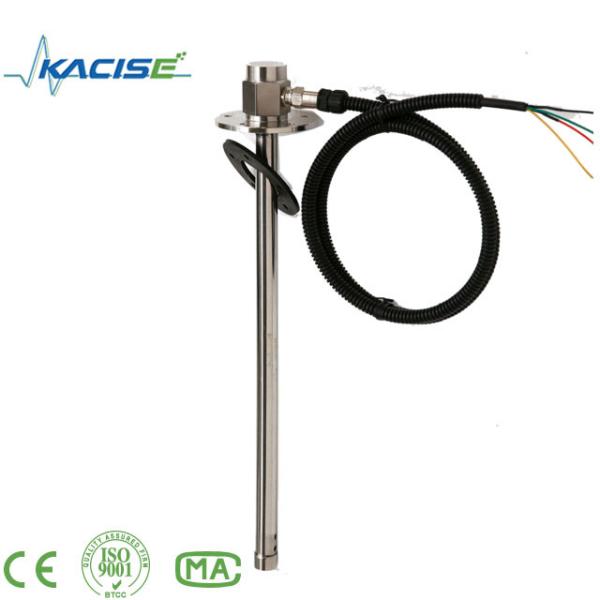

low price high accuracy liquid level transmitter
Main parameters
pressure range: 0~0.5......50H2O
output signal: 4~20mA, 0/1~5V, 0~10V
accuracy: ±0.25, ±0.5, ±1.0%F.S
powew supply: 10~30Vdc 6~24V 11~30Vdc
Application
Hydrological monitoring
Highly corrosive liquid level measurement
Explosion site
Water level measurement
main parameters
measure range: 5m,10m,15m,20m,30m,40m,50m,60m
Measurement accuracy: 0.25%-0.5%
Analog output: 4wires4~20mA/750Ω load
2wires4~20mA/250Ω load
Power supply: Standard configuration 24VDC
optional 220V AC+15% 50Hz
optional 12VDC or customerized power supply
communication: Optional 485,232communication(Manufacturer
agreement)
Protection grade: Display instrument IP65,transducer IP68

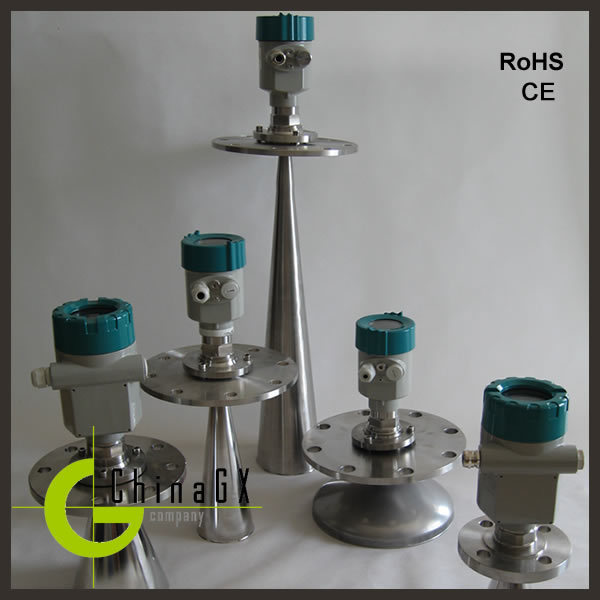

Main parameters
Measuring range: 10 meters
Process pressure: -0.1 ~ 0.3Mpa
Accuracy: ± 5mm
Protection class: IP67
Frequency Range: 26GHz
Explosion levels: Exib Ⅱ CT6 Gb
Signal output: 4~20mA/HART (two wire / four-wire), RS485/Mod bus optional
Application
temperature, pressure, slightly corrosive liquids

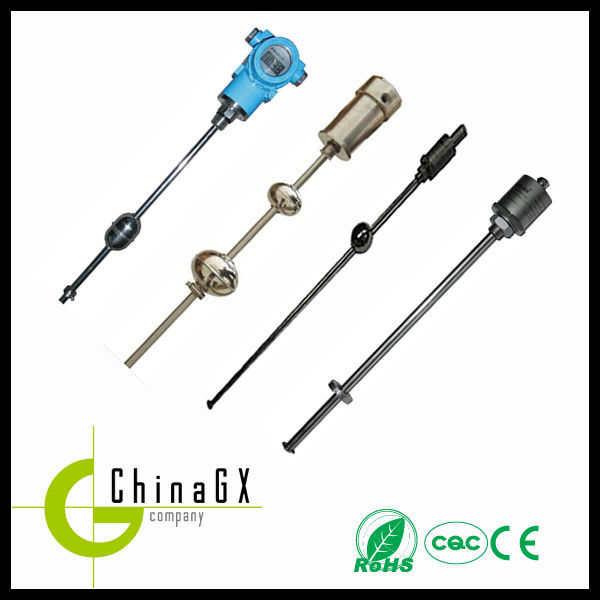

2015 new stainles steel Economical magnetostrictive fuel liquid level transmitter OEM
Main parameters
Power supply: 24V DC
Measure range: 80~5000mm (Null point can re-mark by USB encoder)
Output: 0~5V or 0~10V 0~20mA or 4~20mA RS485Modbus
Operating Temp: -40°C~+85°C
Temp. coefficient: ≤0.007%F.S/°C

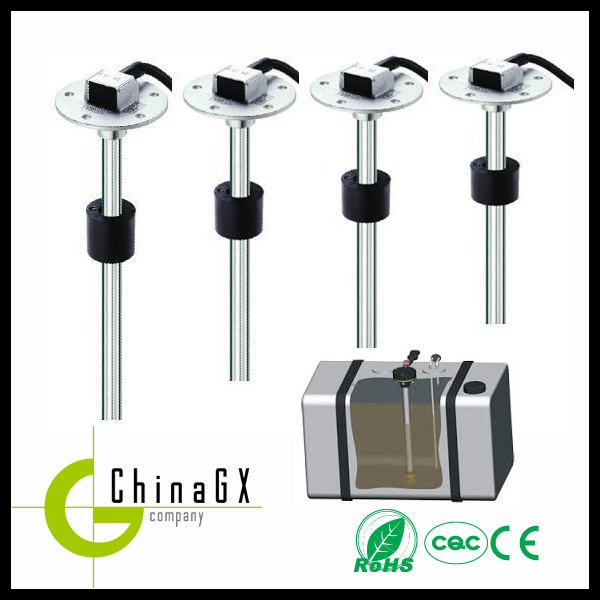

GXRS fuel level sensor for truck
Main parameters
Material: 304 stainless steel
Length range: 100mm~2000mmm
Rated Power: 125mW
Rated Current for alarm switch: 500mA
Precision Range: 10-40mm
Operating Temperature: -40℃~+85 ℃
Protection Grade: IP67

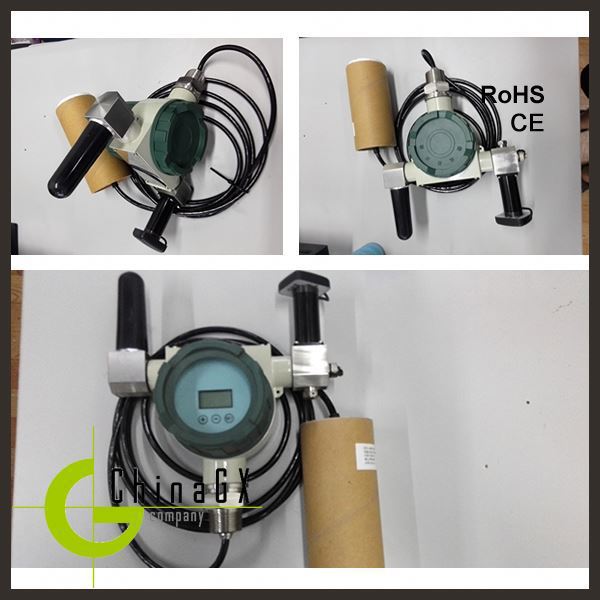

High quality Remote Wireless Pressure Transmitter
Main parameters
measure range: 0~3m diesel
measure precision: 0.5%F.S
power supply: 3.6VDC battery or 10VDC~35VDC external power supply
Defend Grade: IP65
Interface Type: NPT1
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. We provide paid repair services for pressure sensor damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
|
