PLC Control Conveyor Belt Vulcanizing Machine with Cooling System and Customizable Size

Categories Rubber Vulcanizing Press Machine
Brand Name: SFC
Model Number: XLB-1400*6000
Certification: CE、ISO9001、SGS
Place of Origin: China
MOQ: 1
Price: US$10000.00-80000.00/set
Payment Terms: T/T
Supply Ability: 500 sets/year
Delivery Time: 45 days
Packaging Details: Standard packaging.
Control System: PLC
Cylinder Stroke: 400
Heating Method: Electric/Steam/Oil
Material: Carbon Steel/Stainless Steel
Operation Mode: Automatic
Pressure Range: 16.8(mpa)
Product Name: Coveyor belt Vulcanizing Machine
Size: 1400*6000*75
Voltage: 380V
Warranty: 1 Year
Weight: Customized
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PLC Control Conveyor Belt Vulcanizing Machine with Cooling System and Customizable Size

Equipped With A Cooling System Conveyor Belt Rubber Vulcanizing Press Customization
Ayla
Business Manager
sales-6@sfcjx.com
Key Features
  • Multiple heating zones with independent temperature control for precise vulcanization process optimization
  • Customizable size and configuration to accommodate different belt widths and thicknesses
  • Suitable for various conveyor belt types including ordinary rubber, nylon, PVG, wire rope, and fabric core parallel tapes
  • Frame structure with high-quality hot plate and plunger materials for durability and corrosion resistance
  • PLC control system enabling multi-program automatic control and temperature adjustment
  • Heat-resistant construction designed to withstand high temperatures and pressures
  • Optional integration of automated systems including belt tensioning, cooling, and tracking mechanisms
Technical Specifications
Product ModelDLB-1400x6000DLB-1400x8000DLB-14000x10000DLB-1600x6000
Heating plate specification L*W*H (mm)1400*6000*751400*8000*801400*10000*901600*1600*80
Unit pressure (mpa)3333
Nominal pressure (kn)2520033600420028800
Operating pressure (mpa)16.819.12119.1
Oil cylinder (mm)400400400400
Oil cylinder (qty)12141612
Max stroke (mm)400400400500
Layer numbers1~21~21~21~2

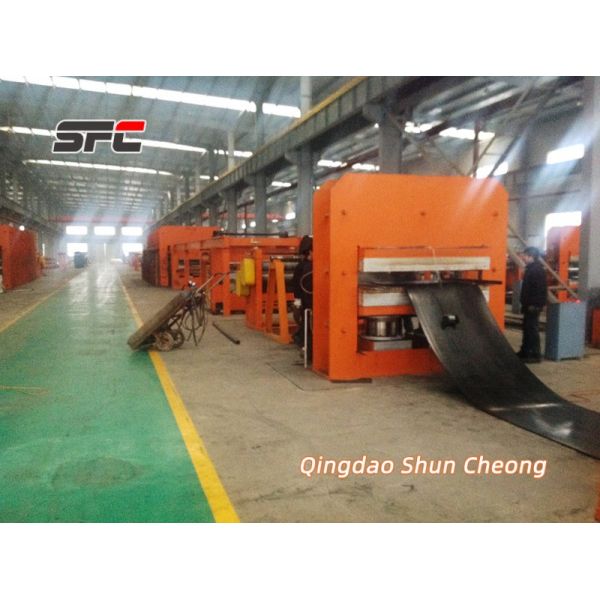

Product Gallery
Quality PLC Control Conveyor Belt Vulcanizing Machine with Cooling System and Customizable Size for sale
