NCF Non-Combustibility Tester ---- Model NCF

Introduction:

• NCF Non-combustibility Tester is designed and manufactured in accordance with EN ISO1182 standard , it is mainly for building products testing.

• It is mainly used in the non-combustibility test for building materials, and is suitable for classification of combustion performance of Class A fireproof materials.

• NCF Non-combustibility Tester is also comply to BS 476-4 & 11 and IMO FTP Part 1 standards. So it can also test UK building materials, railway materials and non-metallic products of vessel.

• The tester is suitable for both composite products and materials of the components testing.

Features:

• Non-Combustibility Furnace measures in-combustibility and combustibility of uniform building material and non-uniform building material of actual element.

• The evaluations (results) are rising temperature in the furnace, basic mass loss and ignition of specimen.

• Single Zone Furnace operable at up to 900 oC with the Kanthal Ribbon Heater.

• 750±5oC temperature automatically control by PID and Power controller.

• Provided with stabilized voltage supply for more quick temperature stabilization.

• Equipped with 3 thermocouples, for temperature in furnace, specimen center, and specimen surface respectively.

• 360 degree rotatable and height adjustable thermocouple scanning device.

• Inner furnace thermocouple device to calibrate the temperature of furnace.

• Testing results include Mass Loss(g) and Rate(%) ,Ignition Time(s) and Sustained Flaming(s) ,Initial & Maximum Furnace Temperature(^oC) ,Final Furnace Temperature(^oC) ,Maximum Specimen Center Temperature(^oC) ,Final Specimen Center Temperature(^oC) ,Furnace Temperature Rise(^oC) ,Specimen Center & Surface Temperature Rise(^oC).

Parameters:

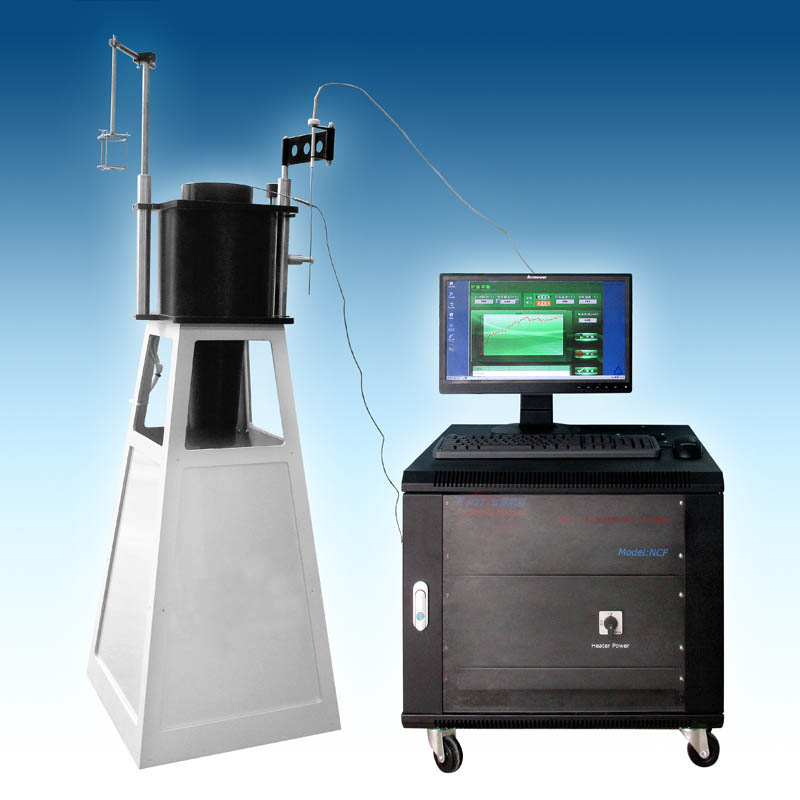

NCF Non-combustibility Tester Real Picture:
