| Categories | Air Pressure Transducer Sensor |
|---|---|
| Brand Name: | YunYi |
| Model Number: | YD34 |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | USD88.0 per piece |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Delivery Time: | 7days |
| Packaging Details: | manufactory 4-20ma Flush Diaphragm Pressure Transmitter Standard export package |
| Warranty: | 2 years |
| Customized support: | OEM, ODM |
| pressure medium: | gas or liquid |
| pressure ranges: | -1...0~0.1...1000bar |
| pressure type: | gauge (G), absolute (A), sealed gauge (S) |
| overload pressure: | 150%FS |
| output signal: | 4~20mA, 0~5V, 0~10V, 1~5V, 0.5~4.5V |
| accuracy: | 0.1%FS, 0.25%FS (standard), 0.5%FS |
| long term stability: | <0.2%FS/year |
| supply voltage: | 12~36V |
| compensated temperature range: | 0~70°c |
| operating temperature range: | -30~+85°c |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

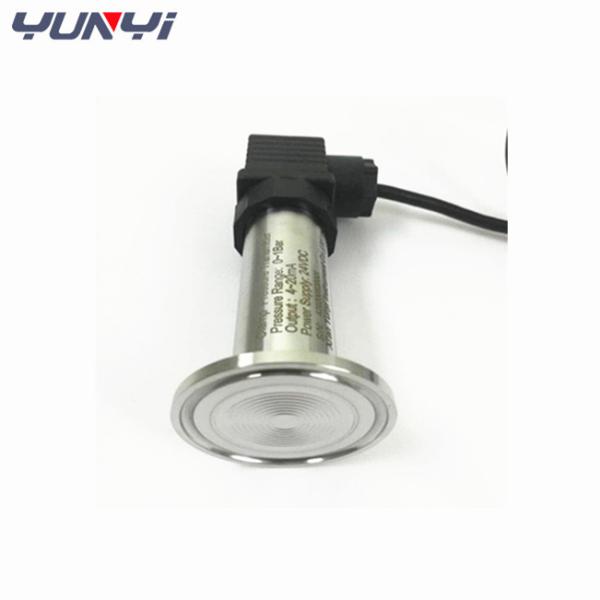

manufactory 4-20ma Flush Diaphragm Pressure Transmitter
YD34series of flat-film pressure transmitters directly sense the pressure signal by welding the diaphragm to the front end of the process interface, using the diffused silicon chip as the sensitive element, and the special digital circuit, after signal amplification, linear compensation, anti-interference, and anti-surge protection It is a flat-membrane pressure measurement product that outputs industry standard signals such as signal processing.
Ø lAnti-interference and anti-surge protection
Ø
Ø 4～20mA is convenient for remote transmission
Ø Piezoresistive pressure sensor design
Ø Using 316L isolation diaphragm and stainless steel housing design
Ø
Ø Excellent anti-jamming capability
Ø Overvoltage overcurrent protection, reverse polarity protection
Ø Process control systems
Ø General industrial applications
Ø Food and beverage industry
Ø Filling and packing machinery
Ø Dosing technology
Ø Level measurement
Ø Occasion where it is easy to block the pressure inlet
| Technical indicators: | |
| Media: | Oil, water, gas and compatible with 316L stainless steel |
| Pressure: | -0.1MPa ~ 0 ~ 10MPa |
| Overload: | 2 times (10MPa or less); 1.5 times (10MPa or more) |
| Accuracy: | ± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
| Nonlinear: | <± 0.2% FS |
| Hysteresis and repeatability: | ≤ ± 0.1% FS |
| Long-term stability: | ≤ ± 0.1% FS / year |
| Zero drift: | ≤ ± 0.02% FS / ℃ |
| Response time: | ≤500ms (standard) |
Electrical parameters manufactory 4-20ma Flush Diaphragm Pressure Transmitter
| Output: | Current 2-wire: 4 ~ 20mA Voltage 3-wire : 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V Option:RS 485 ,hart |
| Supply voltage: | DC24V (12 ~ 32VDC, less may contact) |
| Load capacity: | current output: ≤ 500Ω |
| Voltage output: | ≤ 250Ω output impedance |
| Electrical connection: | Standard for Hersman, optional direct outlet or M20 PIN Aviation |
| Materials: | |
| Wetted parts: | 316L stainless steel |
| Shell: | 304 |
| Seals: | Viton, optional: EPOM, NBR |
| Diaphragm: | 316L stainless steel |
| Other specifications: | |
| Process connection: | 50.5mm clamp |
| Material: | 316L stainless steel wetted materials; Shell: 304 |
| Protection class: | IP 65 |
| Medium temperature: | -30 ~ 80 ℃ |
| Ambient temperature: | -40 ~ 80 ℃ |
| Storage temperature: | -40 ~ 100 ℃ |
| Earthquake: | 108 RMS (25 ~ 2000HZ) |
| Current Limit: | The maximum current-24mA; voltage-largest 5mA |
| Certification: | CE |

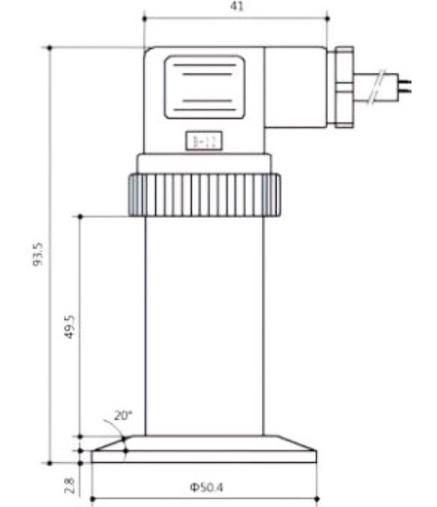

Dimensions manufactory 4-20ma Flush Diaphragm Pressure Transmitter
| Product model | |||||||
| Model | YD-34 | ||||||
| Range | K:0...X kPa; P: PSI; K: kPa,; B: bar; M:MPa; m: mH2O | ||||||
| Precision | 1: 0.25%FS 2: 0.5%FS; 3:0.1 | ||||||
| Output | A: 4-20mA V1: 0.5-4.5V; V2: 0-5V; V3: 1-5V; V4: 0-10V; ; S0: Other | ||||||
| Power | P1: 9-32VDC; P2:5VDC ; P3: 12-32VDC; P4: 3VDC; P0: others | ||||||
| Interface | 50.5mm clamp | ||||||
| Connection | W1:Hirschman W2:Directly wire W3:M12 plug | ||||||
| YD-34 | 100P | 1 | A | P1 | G1 | W1 | Vendor Code |
Selection tips manufactory 4-20ma Flush Diaphragm Pressure Transmitter
1. The tested medium should be compatible with the materials in contact with the product.
2. For other special requirements, please consult us and indicate what you need in theorders.
|
