316L stainless steel Air Pressure Transducer Sensor Gas Air Pressure Sensor 70mpa

Categories Air Pressure Transducer Sensor
Brand Name: Yunyi
Model Number: YD-31
Certification: CE
Place of Origin: China
MOQ: 1
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per week
Delivery Time: 5-8 work days
Packaging Details: Anti-static bag + carton
Name: Mini gas air silicon pressure sensor transducer 70mpa
Material: stainless steel
Pressure: -0.1-100Mpa
Output: 4-20mA,0-5V,0-10V,1-5V,RS485
Power: 8-36V
Thread: 1/2npt 1/4 npt
Accuracy: 0.1% 0.2%,0.5%,1%
Temperature: -20-80c
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

316L stainless steel Air Pressure Transducer Sensor Gas Air Pressure Sensor 70mpa

Mini gas air silicon pressure sensor transducer 70mpa


Description Mini gas air silicon pressure sensor transducer 70mpa

YD31 pressure transmitter is The general-purpose pressure transmitter adopts the silicon chip imported from Germany, with high performance and stable accuracy; the SIN-P300 general-purpose pressure transmitter adopts the diffused silicon pressure core as the sensitive element, and the built-in processing circuit converts the sensor millivolt signal into standard voltage and current. Signal output can be directly connected with computer, control instrument, display instrument, etc.


Parameter Mini gas air silicon pressure sensor transducer 70mpa


Technical indicators:
Media:Oil, water, gas and compatible with 316L stainless steel
Pressure:Ceramic type:0.1-40Mpa
Diffused silicon type: -0.1MPa ~ 0 ~ 100MPa
Overload:2 times (10MPa or less); 1.5 times (10MPa or more)
Accuracy:± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS
Nonlinear:<± 0.2% FS
Hysteresis and repeatability:≤ ± 0.1% FS
Long-term stability:≤ ± 0.1% FS / year
Zero drift:≤ ± 0.02% FS / ℃
Response time:≤500ms (standard)
Electrical parameters:
Output:Current 2-wire: 4 ~ 20mA
Voltage 3-wire : 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V
Option:RS 485 ,hart
Supply voltage:DC24V (12 ~ 32VDC, less may contact)
Load capacity:current output: ≤ 500Ω
Voltage output:≤ 250Ω output impedance
Electrical connection:Standard for Hersman, optional direct outlet or M20 PIN Aviation
Materials:
Wetted parts:316L stainless steel
Shell:304
Seals:Viton, optional: EPOM, NBR
Diaphragm:316L stainless steel
Other specifications:
Process connection:M20 × 1.5 external thread (standard) (optional otherconnections)
Material:316L stainless steel wetted materials; Shell: 304
Protection class:IP 65
Medium temperature:-30 ~ 80 ℃
Ambient temperature:-40 ~ 80 ℃
Storage temperature:-40 ~ 100 ℃
Earthquake:108 RMS (25 ~ 2000HZ)
Current Limit:The maximum current-24mA; voltage-largest 5mA
Certification:CE

Features Mini gas air silicon pressure sensor transducer 70mpa

1. DigitalASIC, accuracy and stability

2. Drift affect small

3. Excellent long-term stability

4. Excellent anti-jamming capability

5. Overvoltage overcurrent protection, reverse polarity protection

6. Excellent selection of imported sensors core

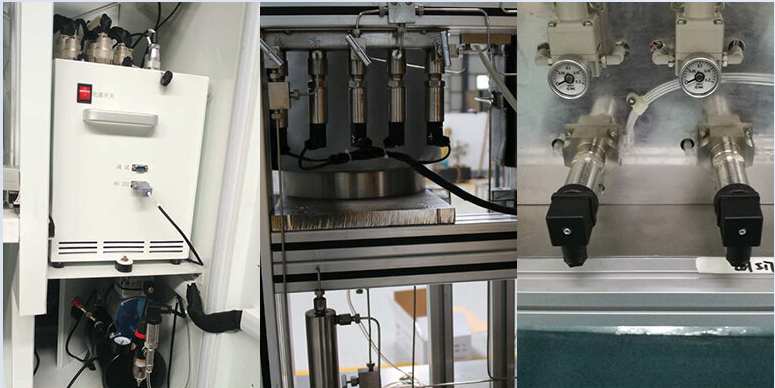

Applications Mini gas air silicon pressure sensor transducer 70mpa


Ordering Information Mini gas air silicon pressure sensor transducer 70mpa

YD31 series Pressure transmitter
Pressure range
Sensor TypeCCeramic
SSilicon
Pressure typeAGauge
BAbsolute
Ccustomer request
Output14~20mA 2 wire
20~5 VDC 3 wire
30.5-4.5V 3 wire
4customer request
Accuracy10.1%
20.2%
30.5%
Thread1NPT1/2 Male
2G1/2Male
3NPT1/4 Male
4Clamp 50.5mm
5customer request
Display1No display
2LCD
3LED
Electric Connection1Hirschman
2Direct wire
3M20 Aviation plug
42088 housing
Using Temperature1Normal
2180C
3250C
4customer request
