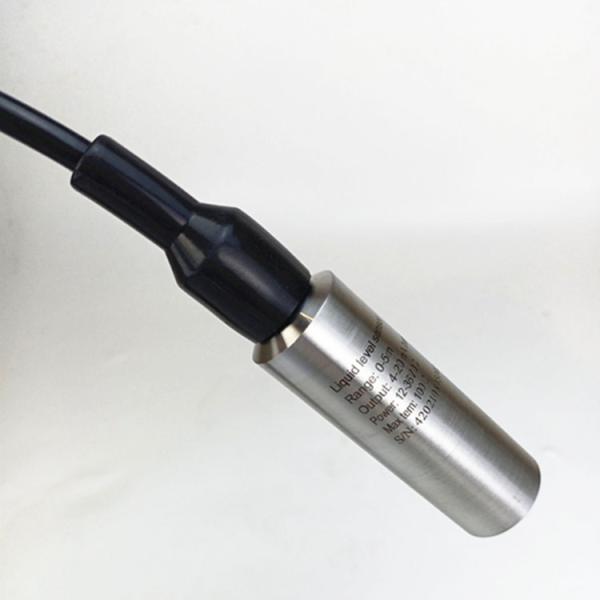

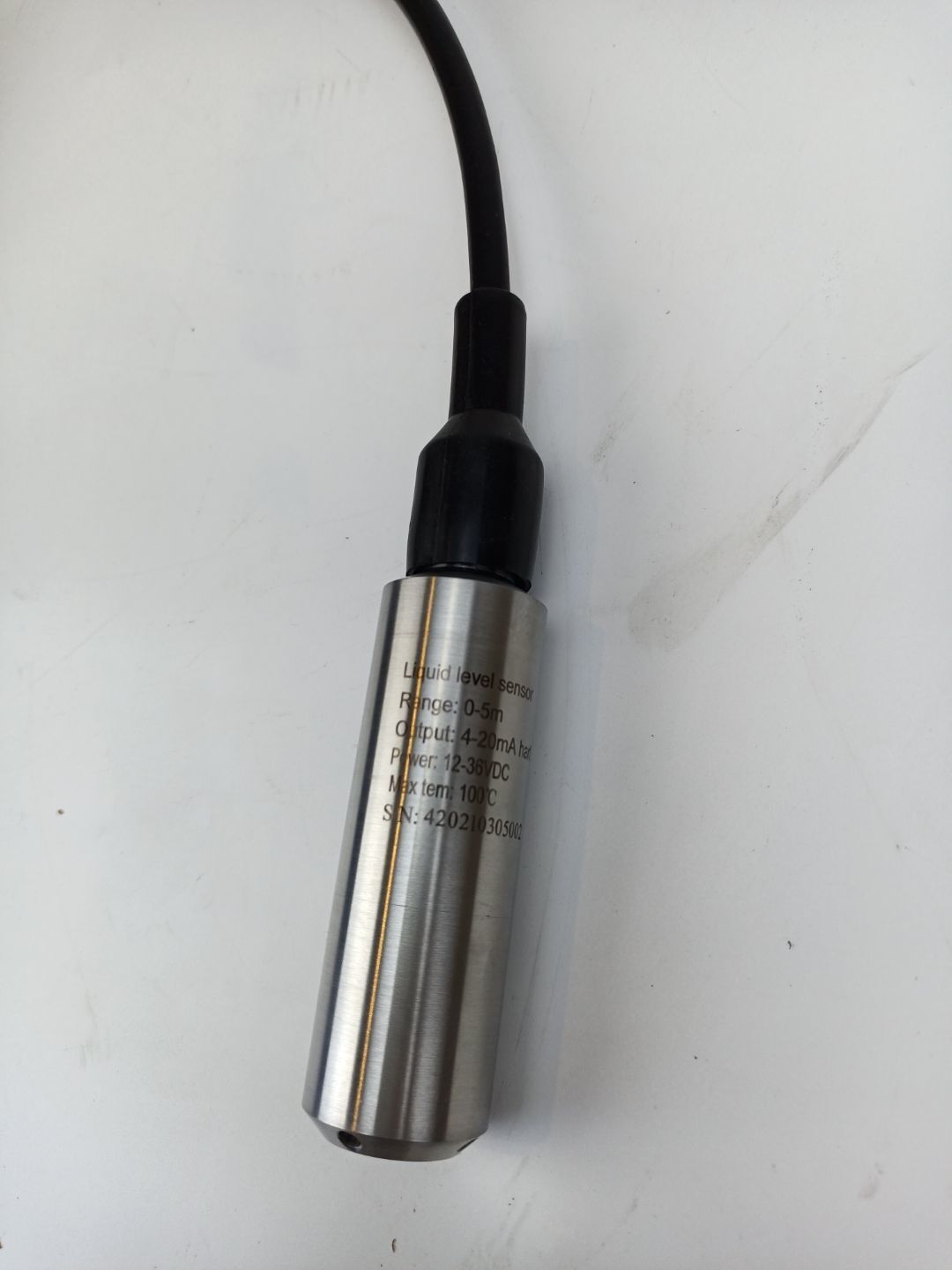

Fuel Tank Submersible Pressure Transmitter For Level Measurement

Industrial Liquid Water Fuel Tank Non Contact Submersible Level Sensor​

Description Liquid Water Fuel Tank Non Contact Submersible Level Sensor​

This series of input type liquid level transmitters are based on the principle that the measured liquid static pressure is proportional to the height of the liquid. The product uses the piezoresistive effect of ceramic sensitive elements to convert the static pressure into an electrical signal, and then cooperates with a dedicated digital circuit to pass the signal Amplification, linear compensation, anti-interference, anti-surge protection and other signal processing, an integrated product that outputs industry standard signals.

Parameter Liquid Water Fuel Tank Non Contact Submersible Level Sensor​

Measure range

Output signal

Load (Ω)

Current (2-wire system): ≤ (power supply voltage-8V) /0.02A

Voltage (3-wire system):> Maximum output signal / 1mA

Proportional voltage (3-wire system):> 10K

Supply voltage

Total current consumption

Current (2-wire system): signal current, maximum 25mA

Voltage (3-wire system): 2.5mA

Proportional voltage (3-wire system): 2.5mA

Accuracy

Temperature range

Temperature drift

Long-term stability

≤0.2%FS/year@0.5%FS

Response time

Anti-vibration

10g (IEC 60068-2-6 standard, under resonance conditions)

Impact resistance

500g (IEC 60068-2-27 standard, mechanical shock)

Service life

1 million pressure cycles

Features Liquid Water Fuel Tank Non Contact Submersible Level Sensor​

Wide measuring range: 0～10m～100mH2O;

Multiple output signals are optional;

Anti-interference and anti-surge protection;

Ceramic diaphragm, anti-corrosion;

Lightning protection, in line with IEC61000-4-5/Level-4 standards;

Applications Liquid Water Fuel Tank Non Contact Submersible Level Sensor​

Chemical plant, sewage treatment plant

Various acidic liquids and gases other than hydrofluoric acid

Dams, rivers and other places with a lot of sediment

Ordering Information Liquid Water Fuel Tank Non Contact Submersible Level Sensor​
