| Categories | Differential Pressure Transmitter |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | YD31 pressure transmitter sensor |
| Certification: | CE certification |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | 30~39USD/PCS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Delivery Time: | 10 work days |
| Packaging Details: | Carton Packaging |
| Name: | pressure transmitter sensor |
| Process connection: | M20 × 1.5 external thread (standard) (optional otherconnections) |
| Medium: | Oil, water, gas and compatible with 316L stainless steel |
| Pressure Range: | -0.1MPa ~ 0 ~ 100MPa |
| Accuracy: | ± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
| Response time: | ≤500ms (standard) |
| Output: | Current 2-wire: 4 ~ 20mA Voltage 3-wire : 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V Option:RS 485 ,hart |
| Protection class: | IP65 |
| Medium temperature: | -30 ~ 80 C |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
4-20mA pressure transmitter YD31 piezoresistive pressure sensor compressor pressure transducer
Description
YD31 series pressure transmitters adopt piezoresistive pressure sensors. Piezoresistive sensor is a pressure sensor. Piezoresistive pressure sensor, also known as the diffusion silicon pressure sensor, is used in the harsh environment of the open space, the requirement is to be able to observe the pressure display on site, as well as the requirement of zero migration and range of occasion adjustment. Piezoresistive pressure transmitter, sensor signal is converted into standard signal output through signal processing circuit. Products after long-term aging stability assessment and strict screening, stable and reliable performance.

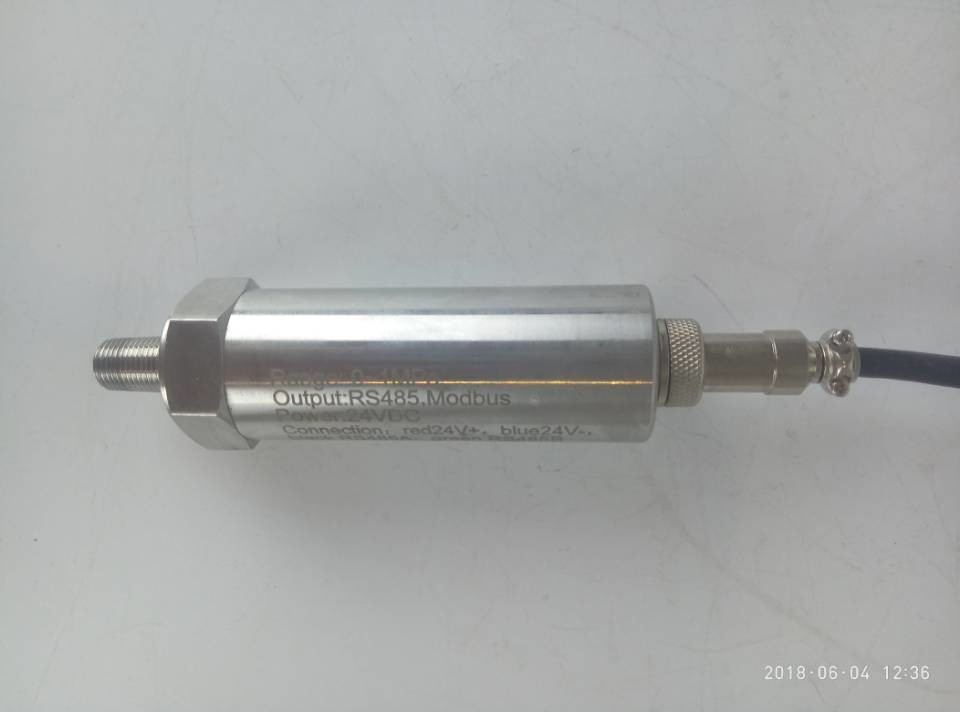

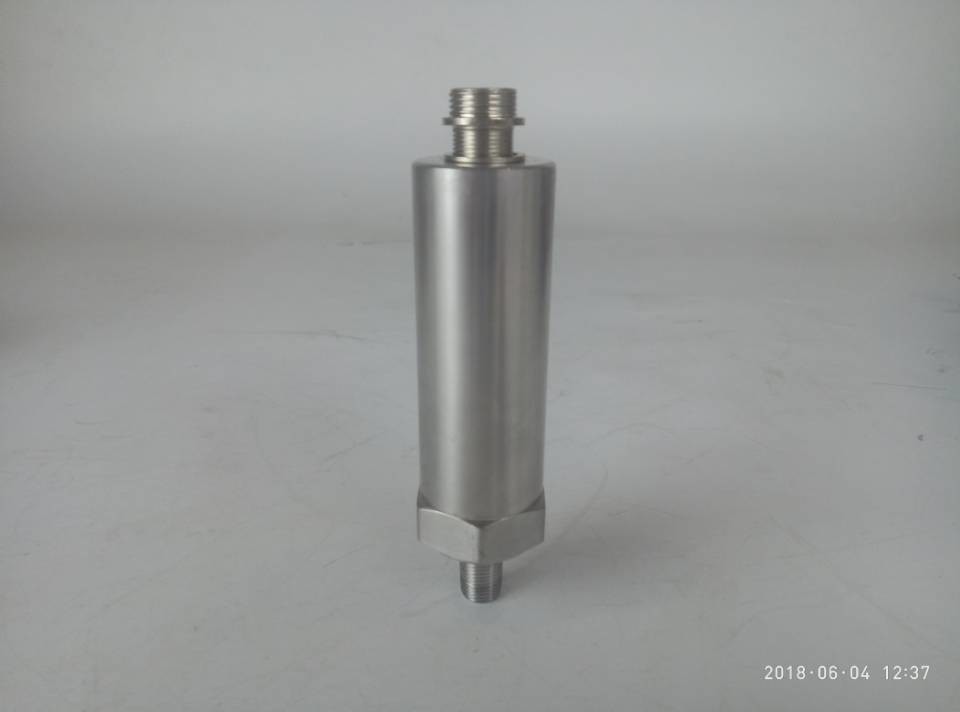

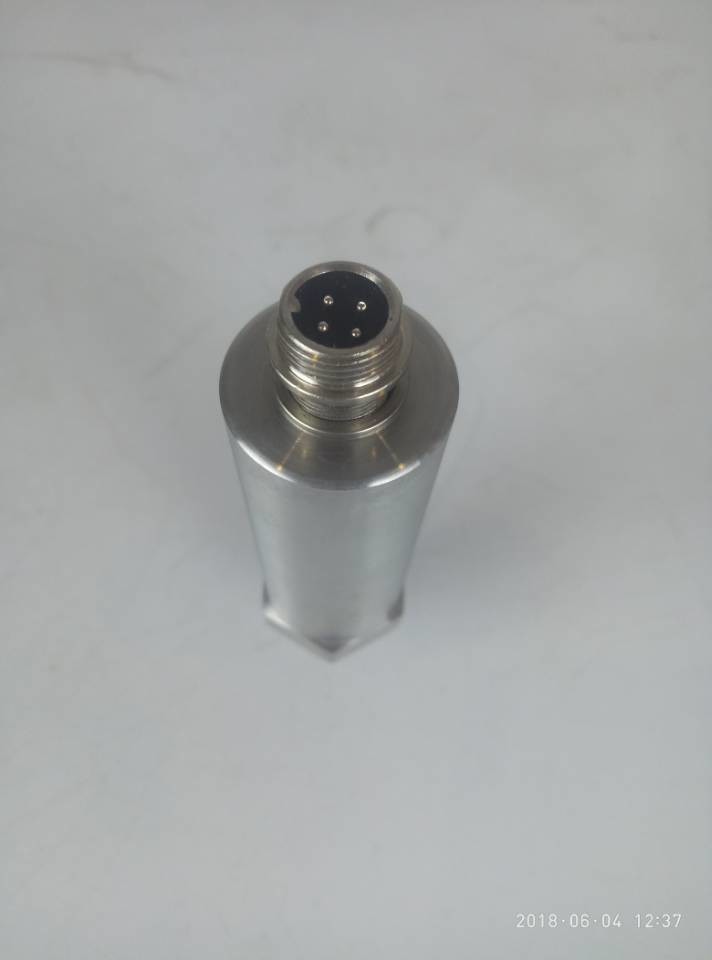

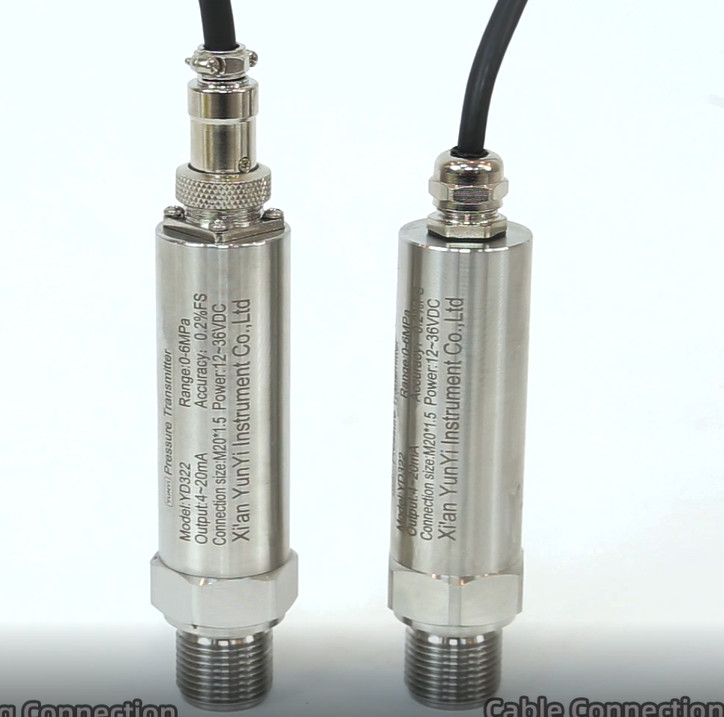

Detail image
Specification
| Technical indicators: | |
| Media: | Oil, water, gas and compatible with 316L stainless steel |
| Pressure: | -0.1MPa ~ 0 ~ 100MPa |
| Overload: | 2 times (10MPa or less); 1.5 times (10MPa or more) |
| Accuracy: | ± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
| Nonlinear: | <± 0.2% FS |
| Hysteresis and repeatability: | ≤ ± 0.1% FS |
| Long-term stability: | ≤ ± 0.1% FS / year |
| Zero drift: | ≤ ± 0.02% FS / C |
| Response time: | ≤500ms (standard) |
Output : | Current 2-wire: 4 ~ 20mA Voltage 3-wire : 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V Option:RS 485 ,hart |
| Supply voltage: | DC24V (12 ~ 32VDC, less may contact) |
| Load capacity: | current output : ≤ 500Ω |
| Voltage output : | ≤ 250Ω output impedance |
| Electrical connection: | Standard for Hersman, optional direct outlet or M20 PIN Aviation |
Application
1.Compressor and water pump
2.Constant pressure or building water supply
3.Engineering or industrial process control and monitor machinery
4.Environmental protection in Steel industry
5.Medical or agricultural testing machinery
6.Flow measure equipment
7.Hydraulic and pneumatic control system
8.Internal combustion engine, locomotive brake system, test stand
